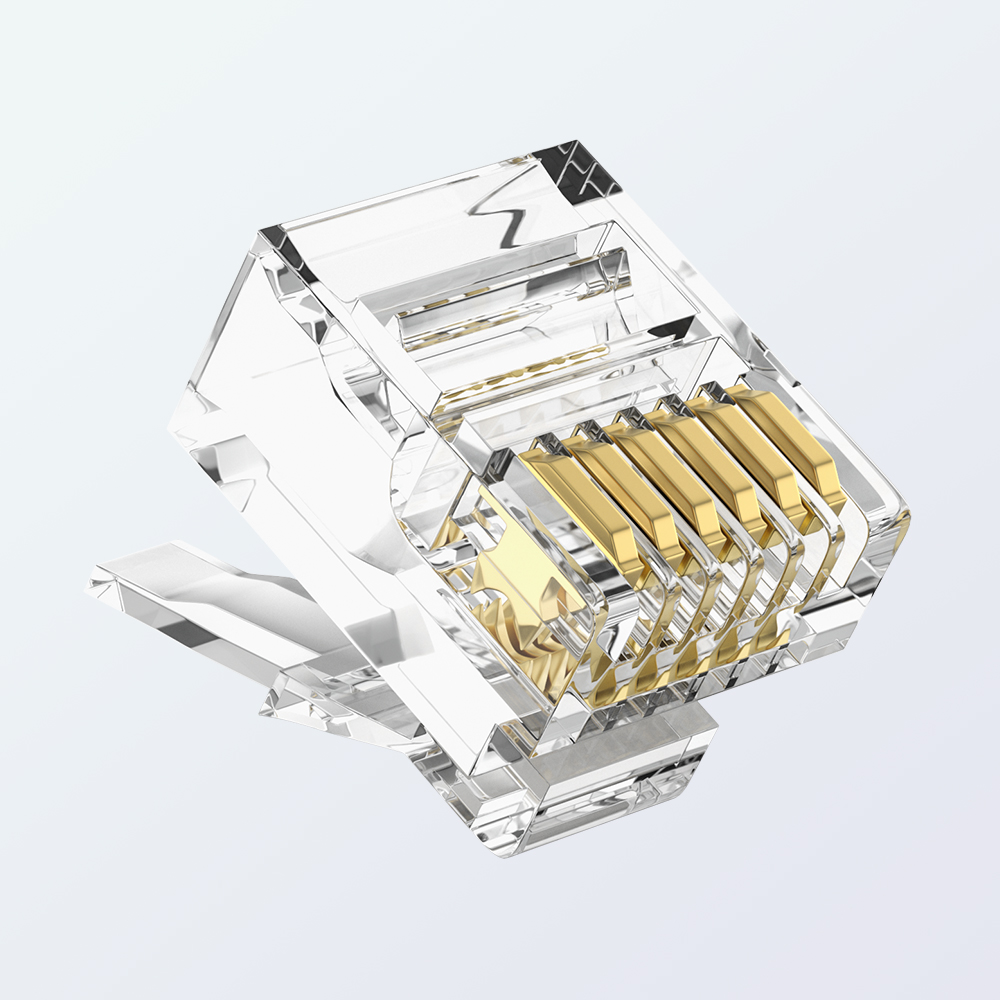

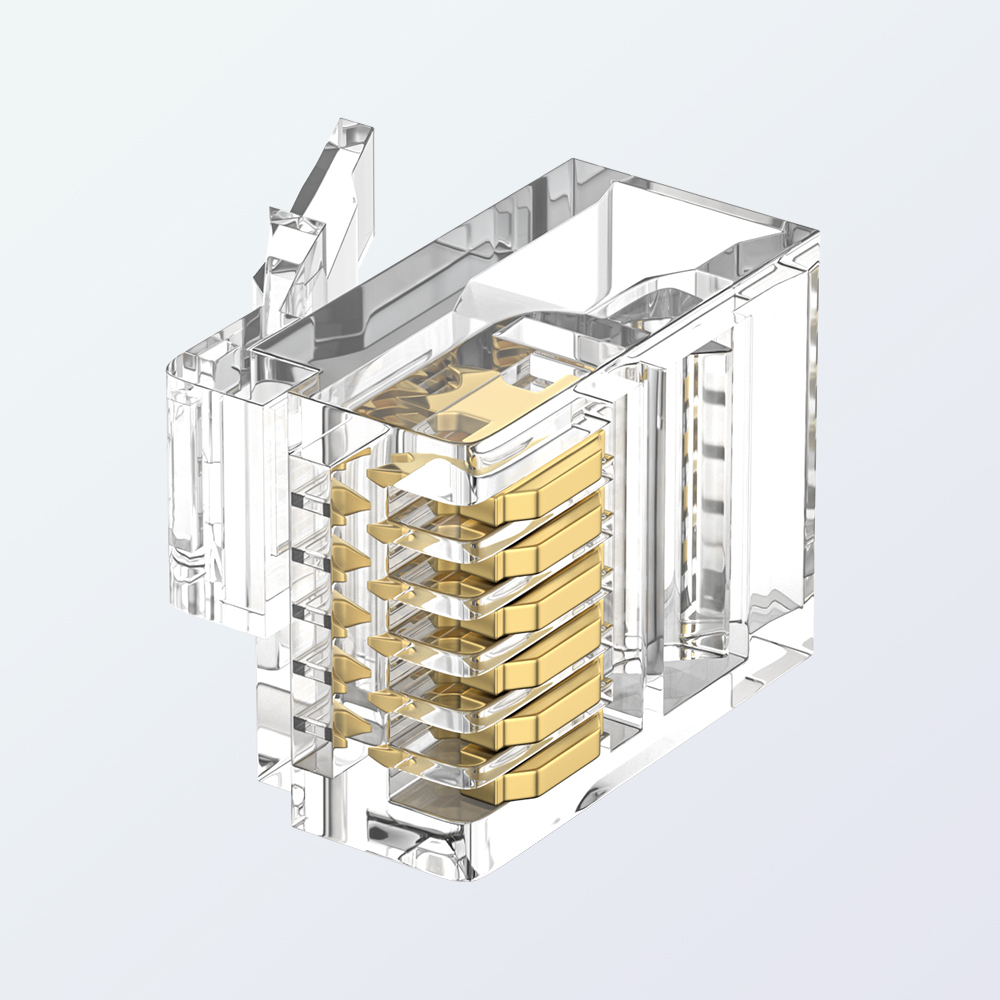

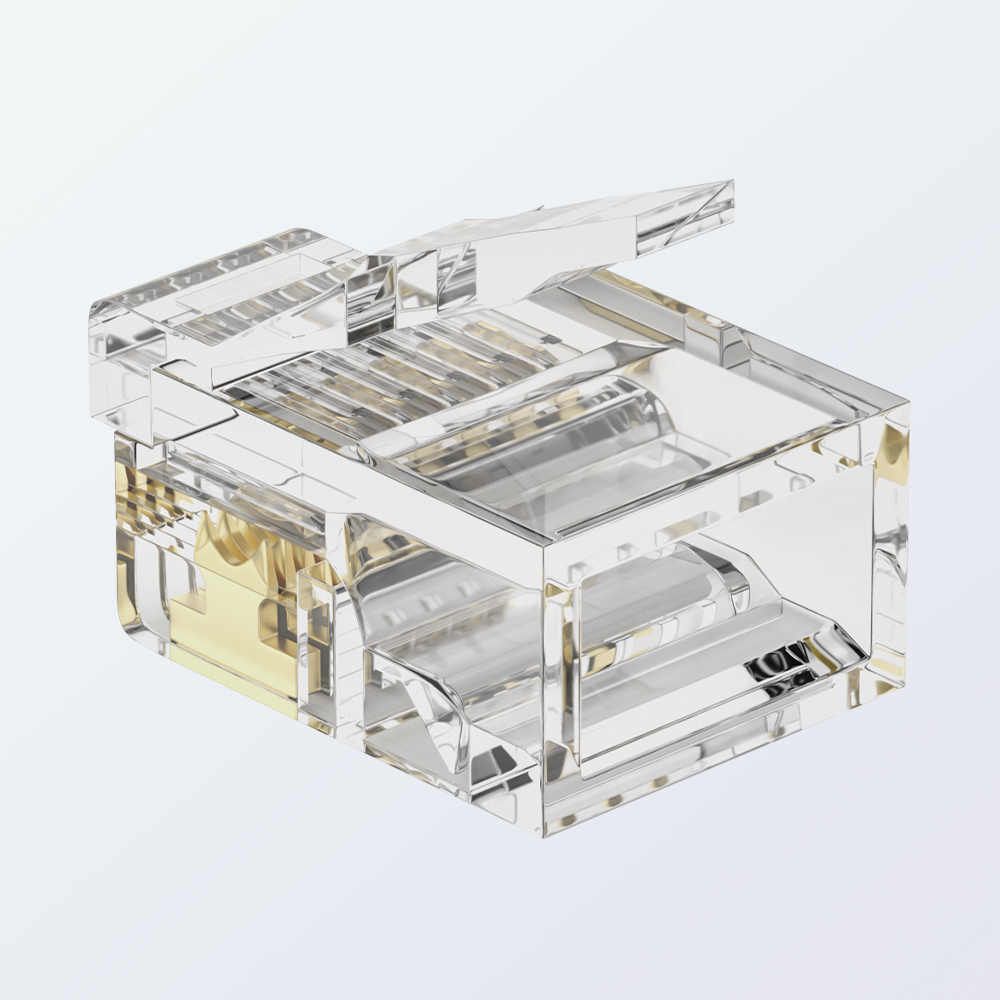

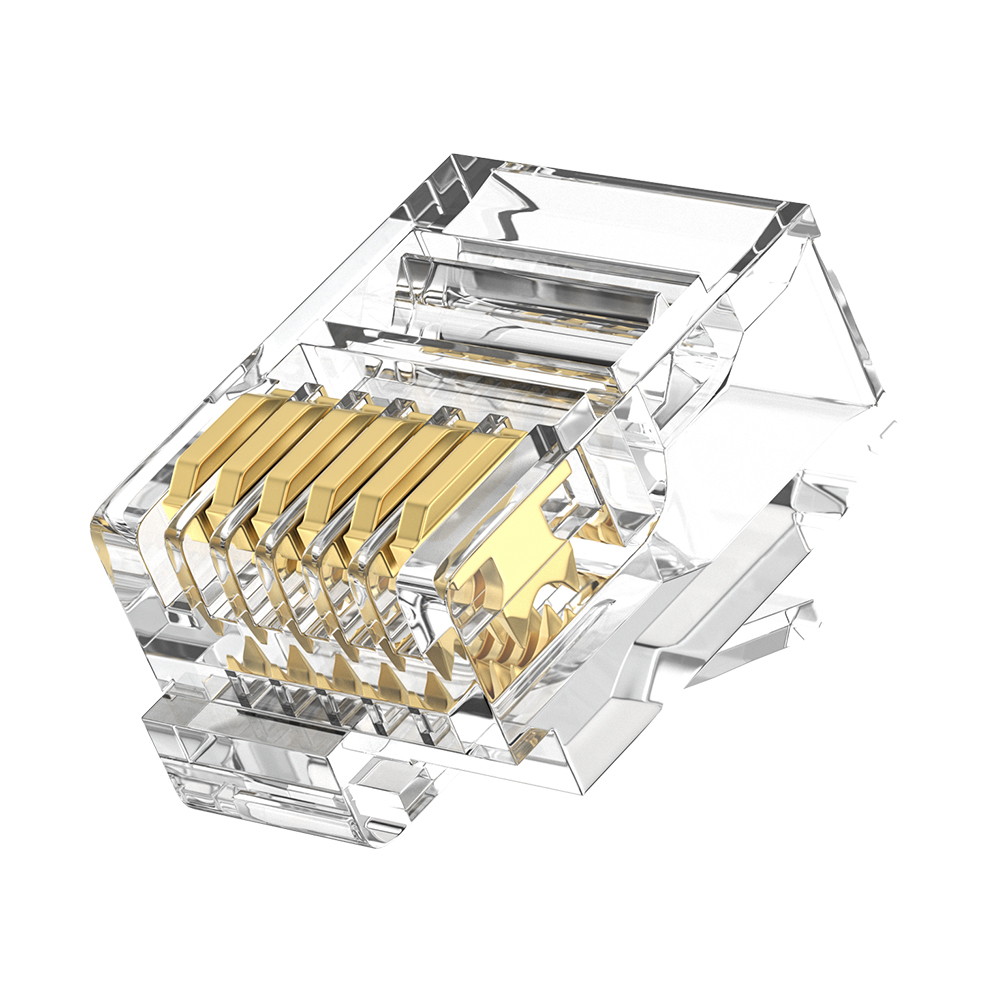

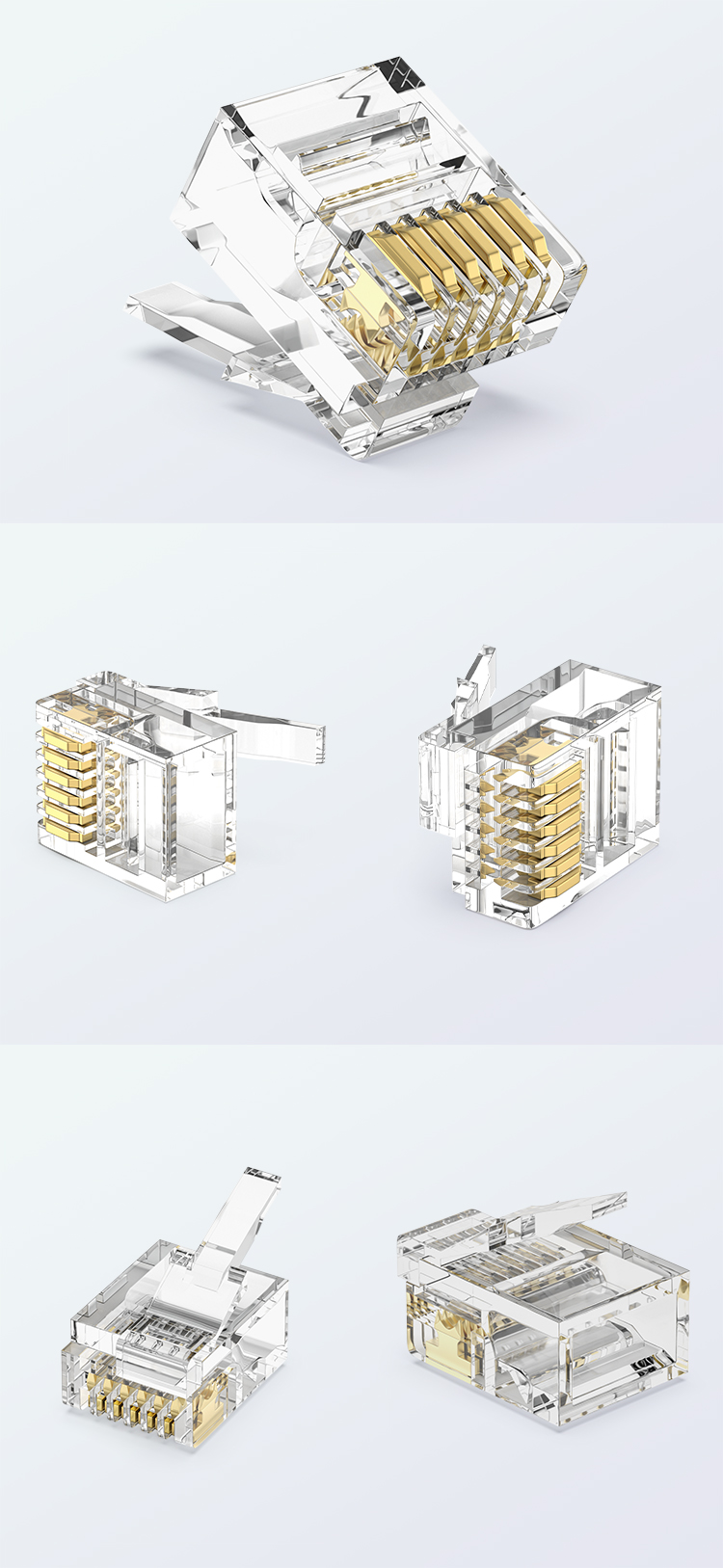

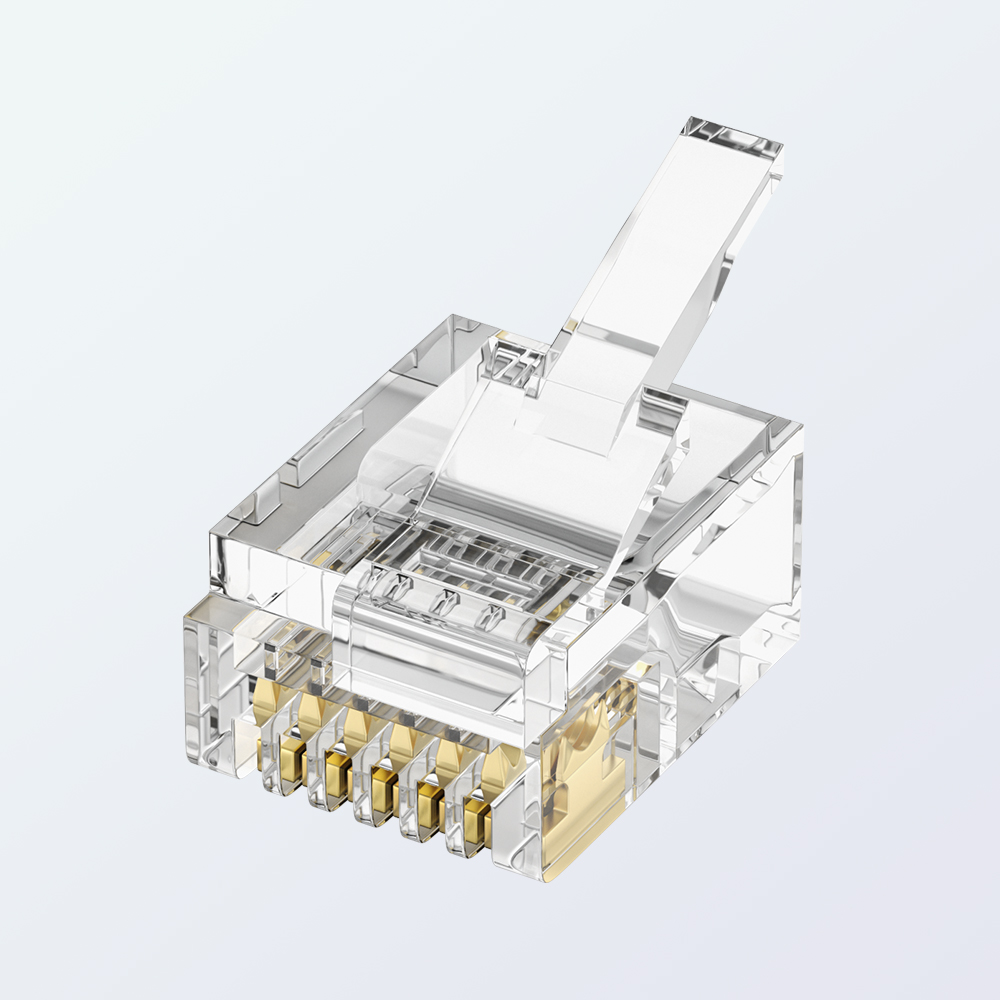

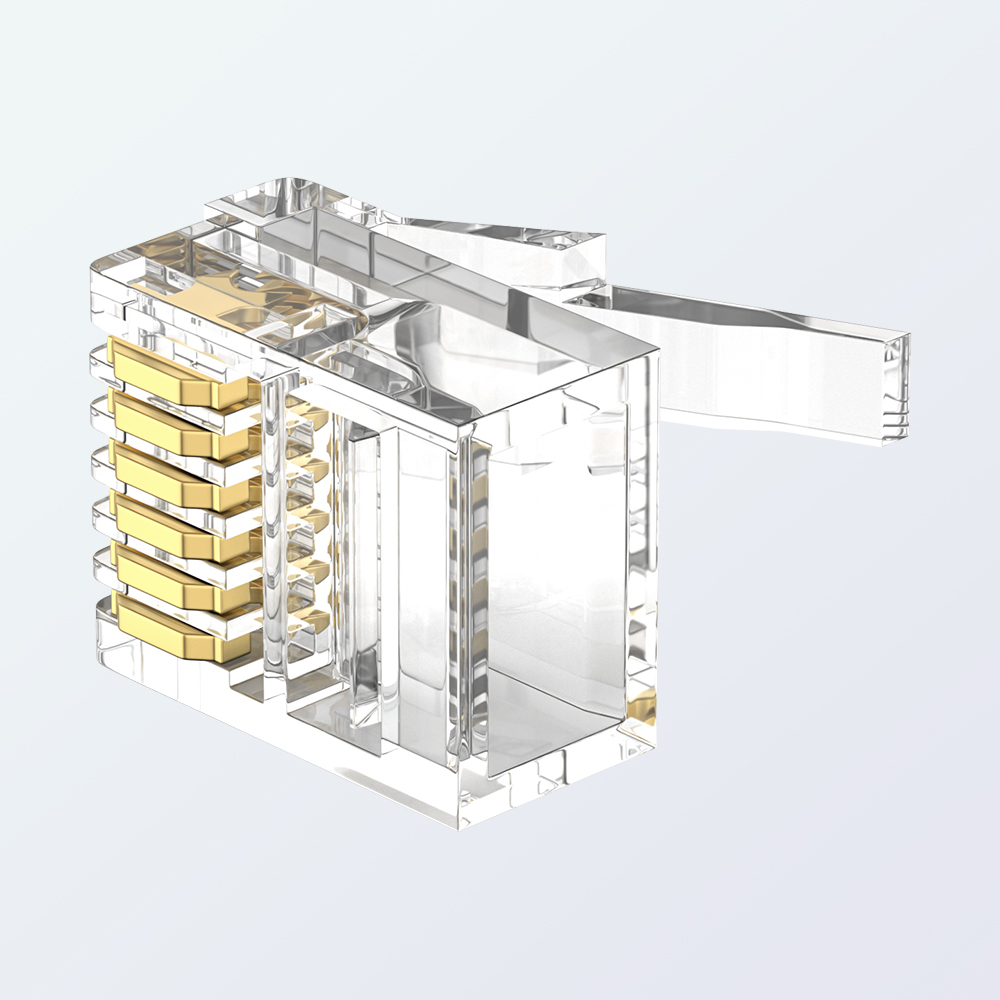

      6P6C RJ11 Right Angle Modular Plug UTP 1.0mm Telephone Connector 1U Gold Plated

      $0.03 USD
      Quantity
      Inventory: 1000000 remaining available

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments
      Item Specification
      Product Name 6P6C RJ11 Right Angle Modular Plug
      Model DT-101C
      Brand Detwiler Tech / OEM / ODM
      Product Type Telephone Modular Plug
      Connector Type 6P6C RJ11 Right Angle (Bent Tab)
      Shielding Type UTP (Unshielded Twisted Pair)
      Contact Material Copper Alloy with Nickel Plating
      Contact Plating 1U Gold Plated
      Housing Material PC (Polycarbonate)
      Wire Core Hole 1.0mm
      Supported Conductor Diameter 0.75–1.0mm
      Supported Cable Type Telephone Cable
      Flame Rating UL94-V2
      Electrical Rating 125V AC 1.5A @ 25°C
      Contact Resistance ≤20mΩ
      Insulation Resistance ≥500MΩ (100V DC / 1 min)
      Dielectric Strength 1000V AC / 1 min, no breakdown
      Insertion & Withdrawal Force Max 30N
      Durability ≥750 mating cycles
      Operating Temperature -40℃ ~ +85℃
      Certifications UL / CSA / CE / SGS / RoHS / ISO9001
      Packaging Box / Bag
      Environmental Compliance RoHS / REACH Compliant
      HS Code 8536901100
      OEM/ODM Supported

      Option Available Choices
      Gold Plating FU, 3U", 15U", 30U", 50U"
      Packaging Box, Bag, OEM Custom Packaging
      Logo Printing Detwiler Tech / OEM / ODM

      Product Description

      Product Overview

      This 6P6C RJ11 right angle modular plug is designed for telephone communication systems, featuring a USA-style bent tab structure for easy installation in compact environments. With a 1.0mm core hole and UTP design, it ensures stable voice transmission performance.

      Key Features

      • 6P6C RJ11 right angle (USA-style bent tab) design
      • UTP structure for standard telephone applications
      • 1U gold plated contacts for stable conductivity
      • 1.0mm wire core hole for precise cable fit
      • PC housing with UL94-V2 flame rating
      • High durability with ≥750 mating cycles
      • Operating temperature: -40℃ to +85℃
      • Certified by UL, CSA, CE, SGS, RoHS, ISO9001

      Applications

      • Telephone wiring systems
      • Voice communication networks
      • Office PBX systems
      • Residential telephone installations
      • Low-voltage communication systems

      OEM & ODM Service

      Detwiler Tech supports full OEM/ODM customization including logo printing, packaging solutions, and bulk manufacturing for global distributors and telecom projects.
