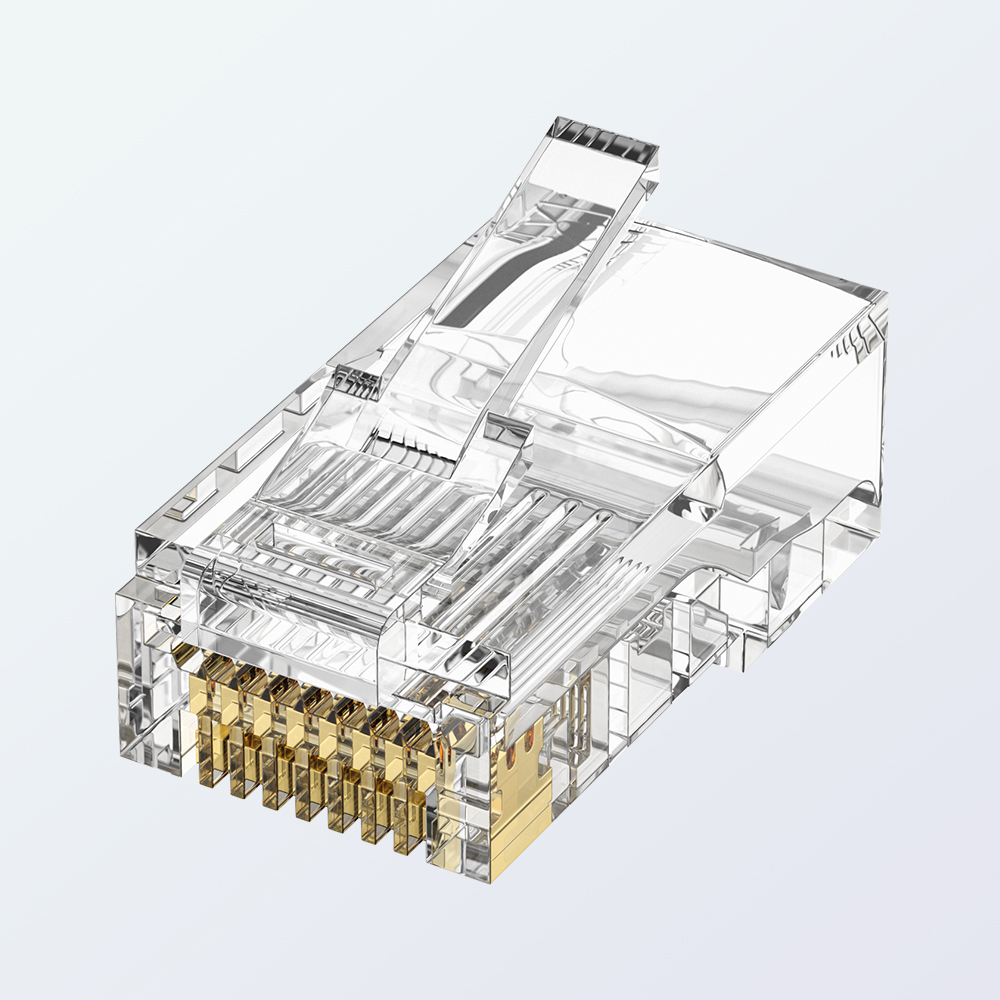

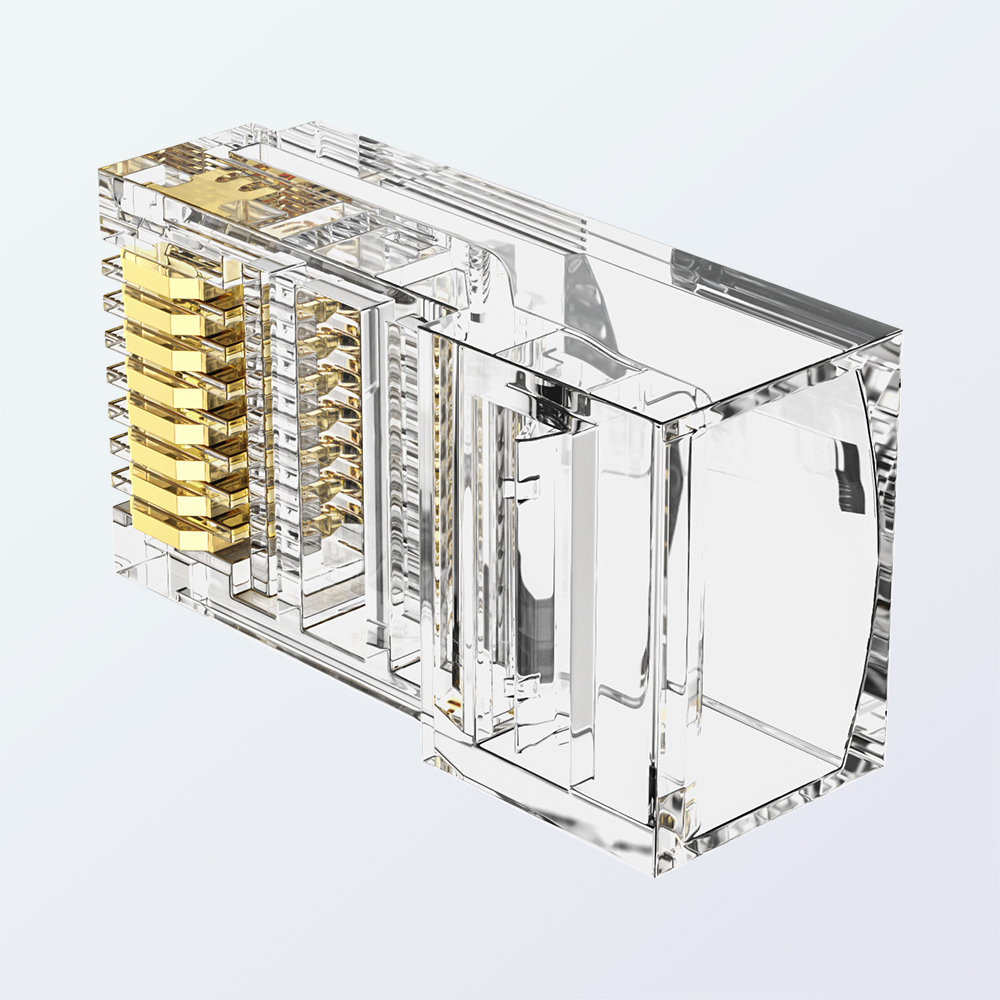

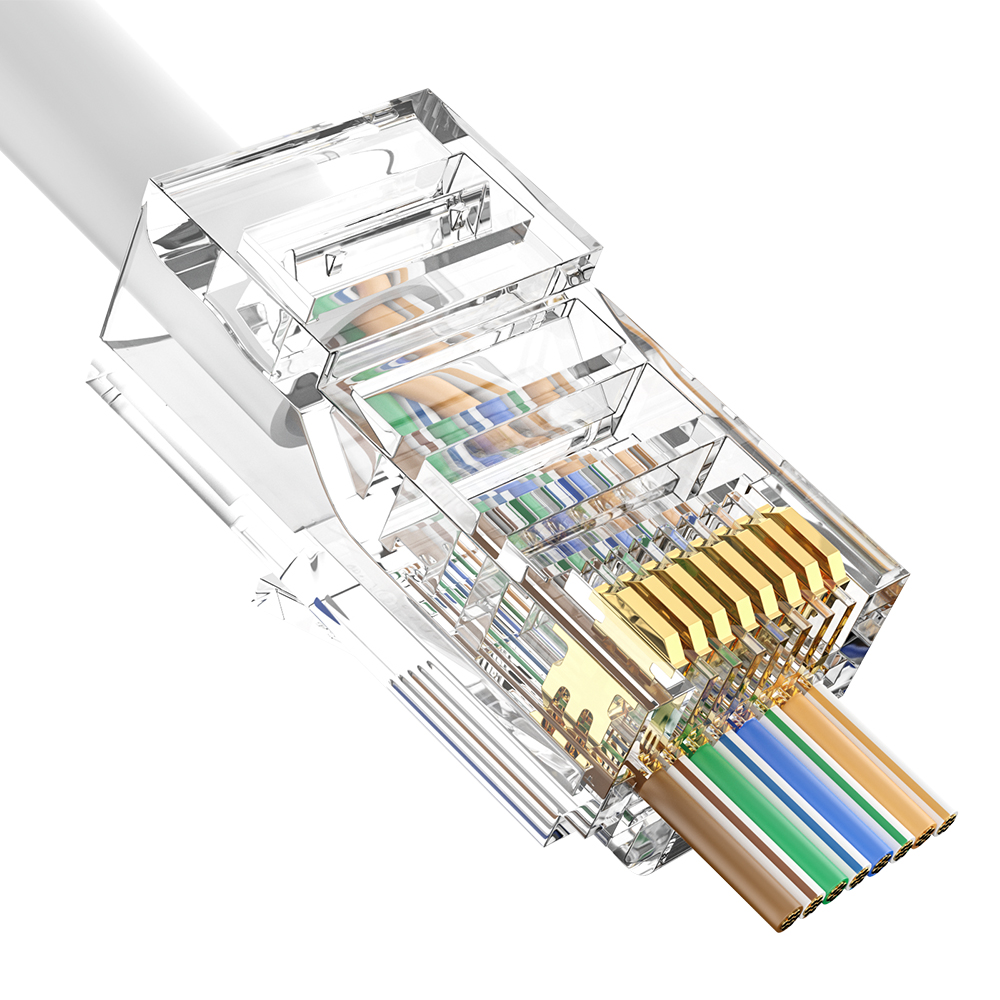

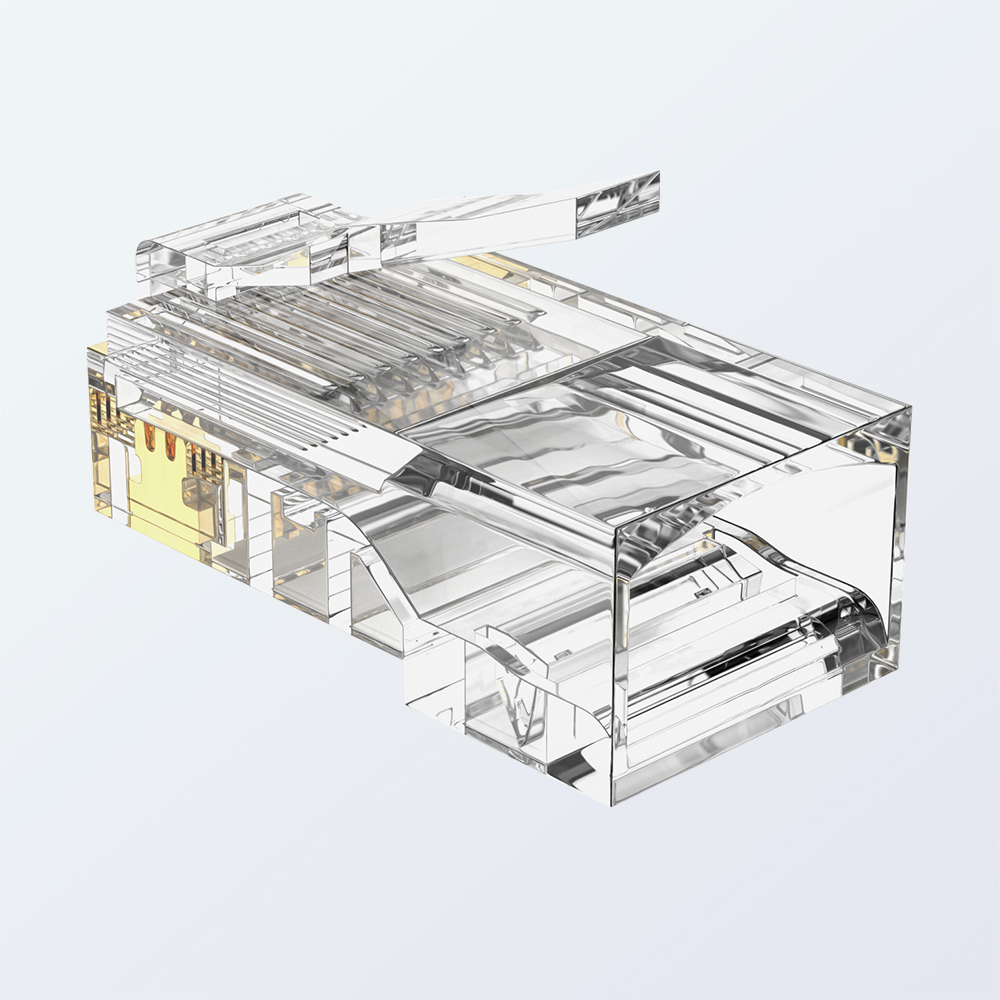

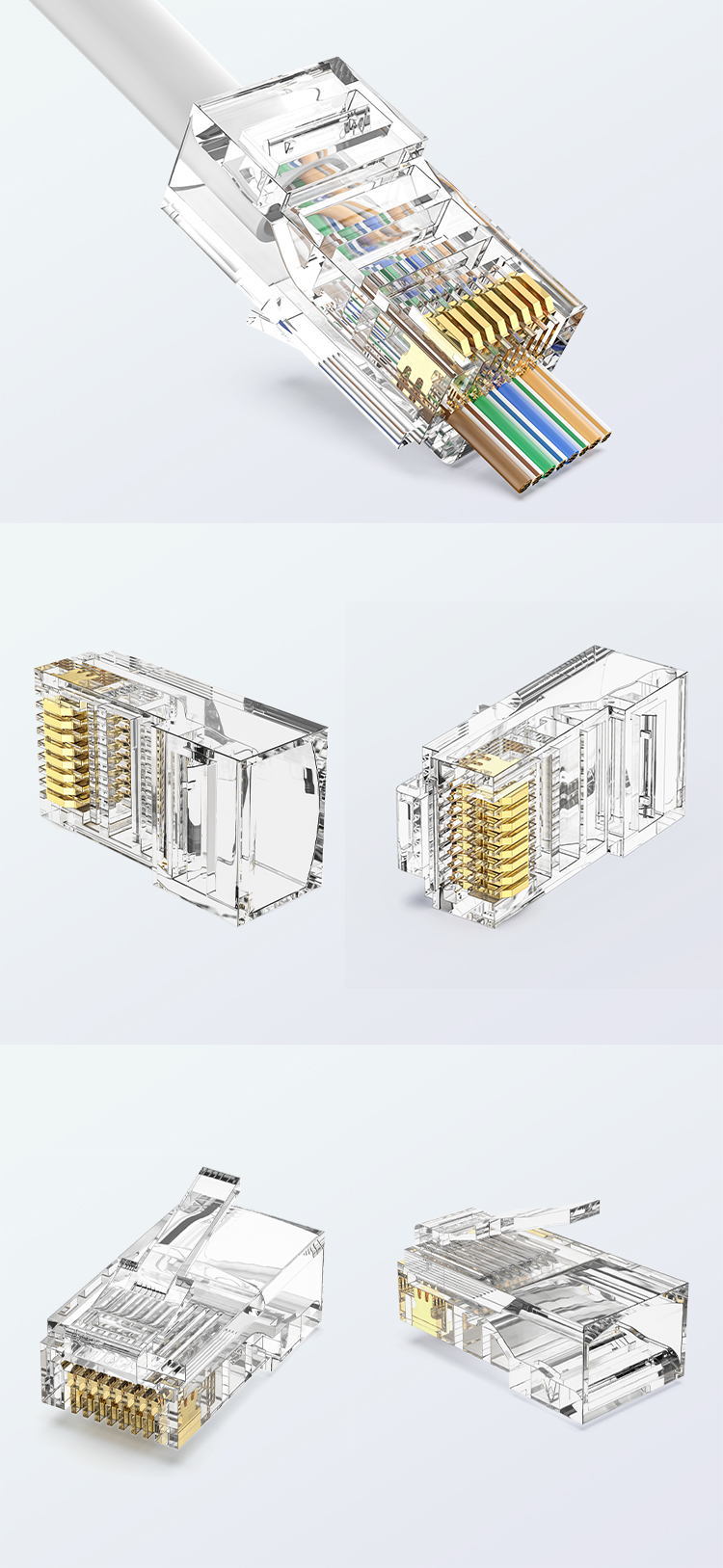

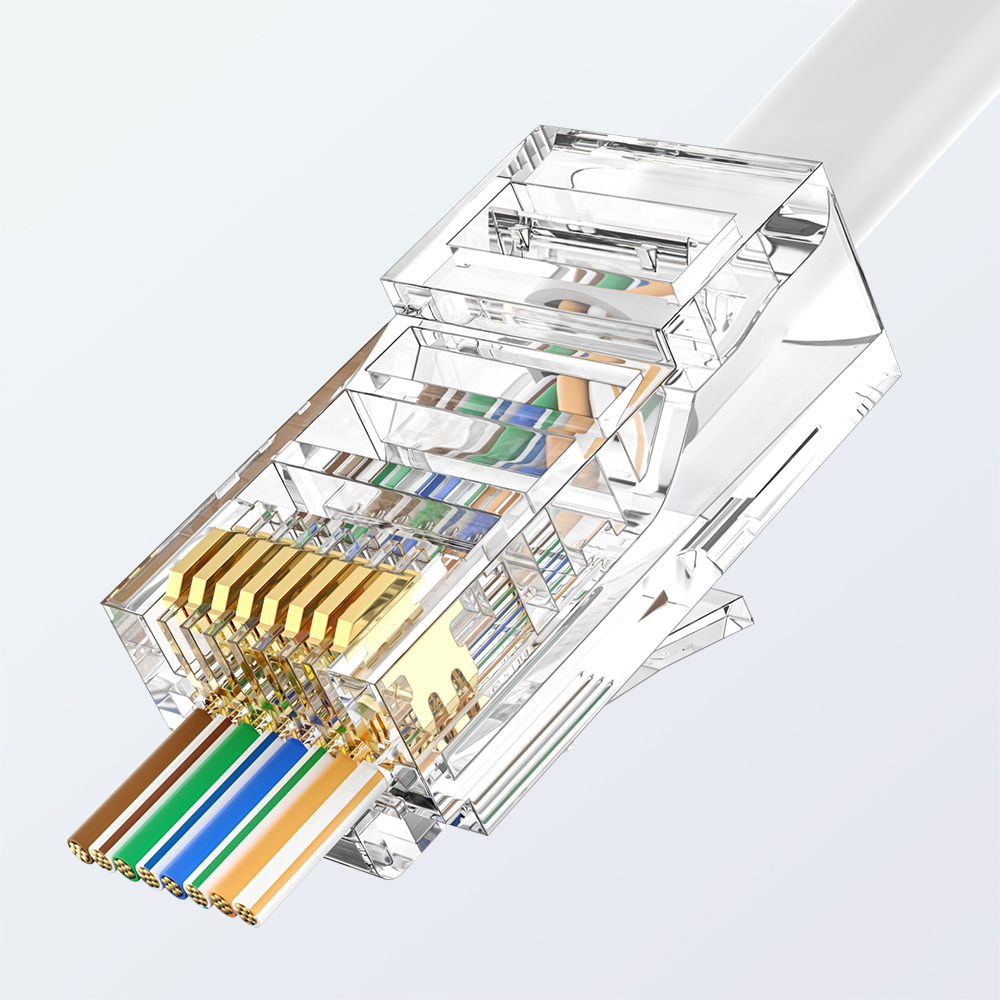

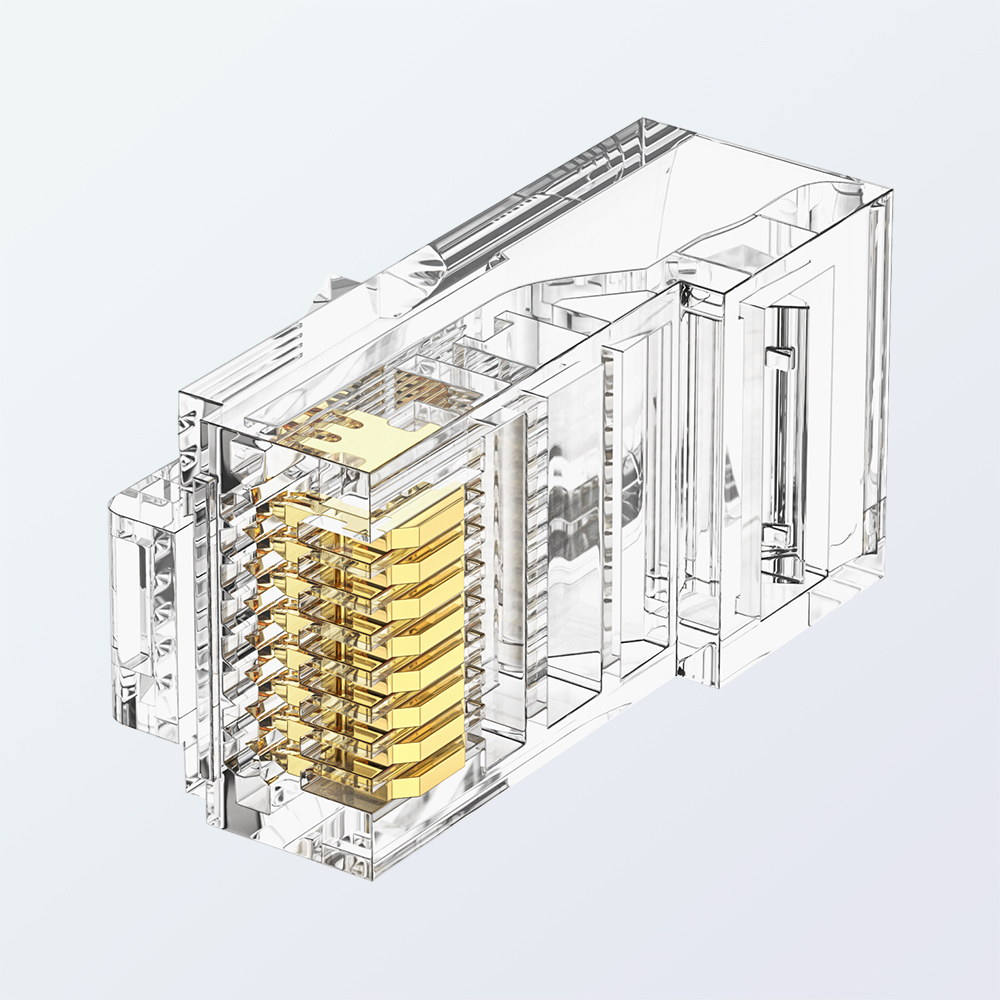

      CAT5E RJ45 8P8C UTP Pass-Through Modular Plug 1.0mm Easy Termination 1U Gold Plated

      $0.06 USD
      Quantity
      Inventory: 1000000 remaining available

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments
      Item Specification
      Product Name CAT5E RJ45 8P8C UTP Pass-Through Modular Plug
      Model DT-104M1
      Brand Detwiler Tech / OEM / ODM
      Product Type Modular Plug
      Connector Type RJ45 8P8C
      Category CAT5E
      Shielding Type UTP (Unshielded Twisted Pair)
      Structure Pass-Through / Front Piercing Design
      Wire Core Hole 1.0mm
      Supported Conductor Diameter 0.75–1.0mm
      Supported Cable Type 22–24AWG Solid or Stranded Cable
      Contact Material Brass 3-Prong Contact
      Contact Plating 1U Gold Plated
      Housing Material PC (Polycarbonate)
      Flame Rating UL94-V2
      Electrical Rating 125V AC 1.5A @ 25℃
      Contact Resistance ≤20mΩ
      Insulation Resistance ≥500MΩ (100V DC / 1 min)
      Dielectric Strength 1000V AC / 1 min
      Pull Test ≤30N
      Durability ≥750 mating cycles
      IP Rating IP20
      Operating Temperature -40℃ ~ +85℃
      Certifications UL / CSA / CE / SGS / RoHS / ISO9001
      Packaging Box / Bag
      HS Code 8536901100
      OEM/ODM Supported

      Option Available Choices
      Gold Plating FU, 3U", 15U", 30U", 50U"
      Packaging Box, Bag, OEM Custom Packaging
      Logo Printing

      Detwiler Tech / OEM / ODM

      Product Description

      Product Overview

      This CAT5E RJ45 8P8C UTP pass-through modular plug features a front piercing structure designed to simplify cable termination and improve installation efficiency. It supports 0.75–1.0mm conductors and 22–24AWG Ethernet cables, ensuring stable and reliable network performance.

      Key Features

      • CAT5E RJ45 8P8C UTP pass-through design
      • Front piercing structure for fast installation
      • 1.0mm core hole for precise wire compatibility
      • 1U gold plated contacts for stable signal transmission
      • Supports 22–24AWG Ethernet cables
      • High durability up to 750 mating cycles
      • IP20 protection rating for indoor use
      • Operating temperature range: -40℃ to +85℃
      • Compliant with UL, CSA, CE, SGS, RoHS, ISO9001

      Applications

      • Fast network cable termination
      • Office and home Ethernet wiring
      • Structured cabling systems
      • Data communication installations
      • Telecom and IT infrastructure

      OEM & ODM Service

      Detwiler Tech provides OEM/ODM customization including logo printing, packaging design, and bulk manufacturing solutions for global distributors and structured cabling projects.

      #CAT5E #RJ45Connector #PassThrough #UTPConnector #8P8C #NetworkConnector #EasyTermination #StructuredCabling #DetwilerTech #OEM #ODM
