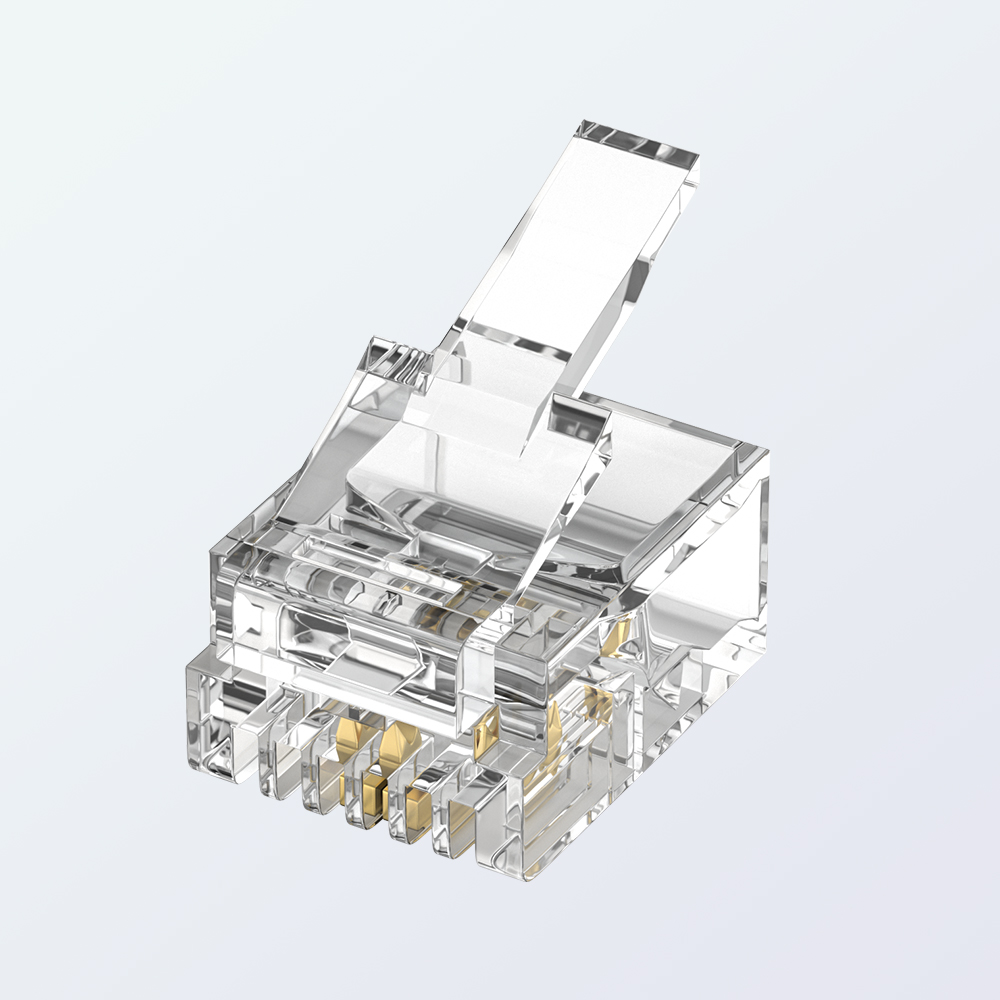

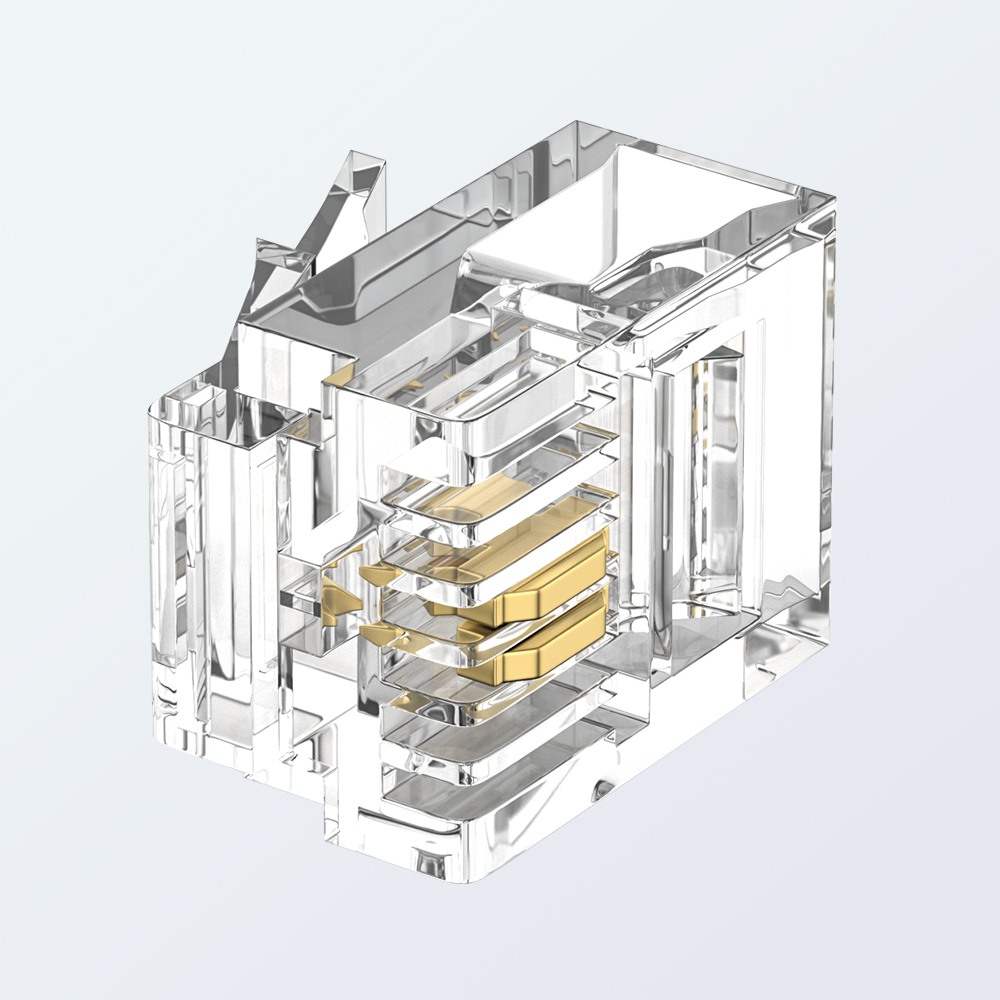

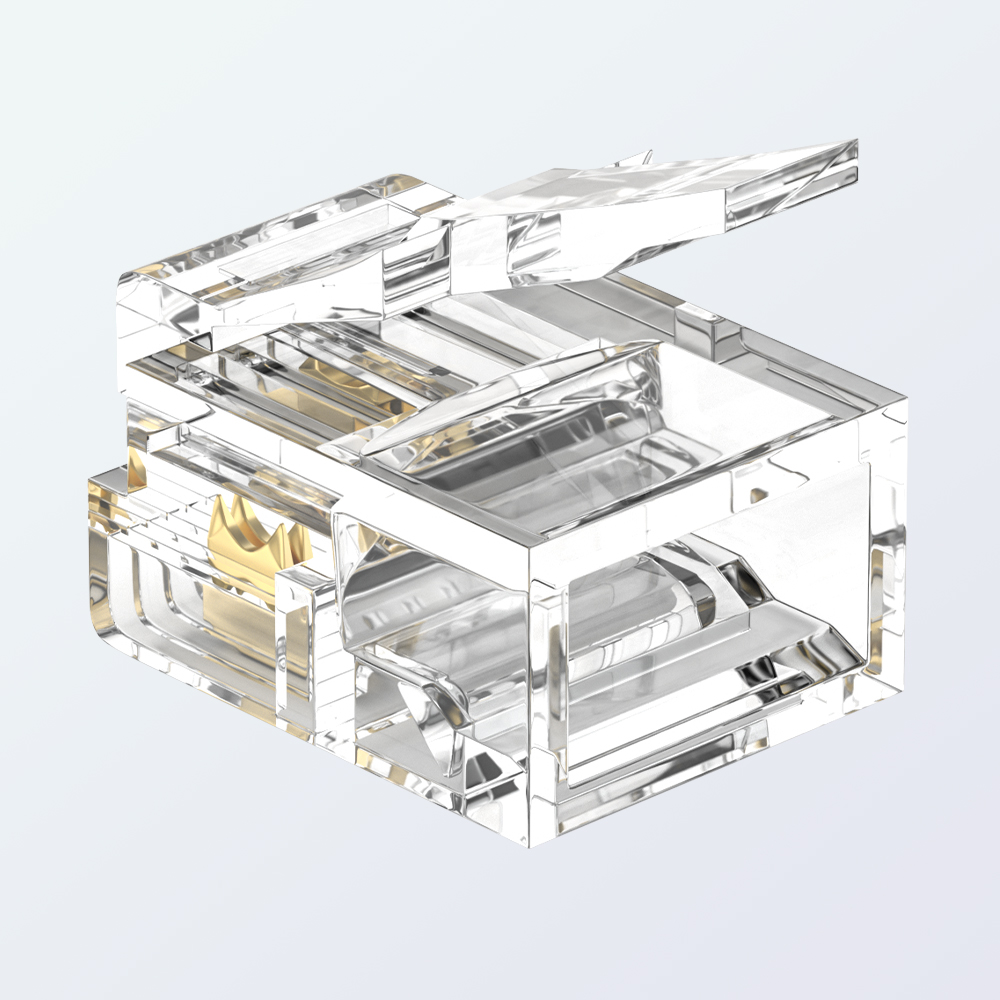

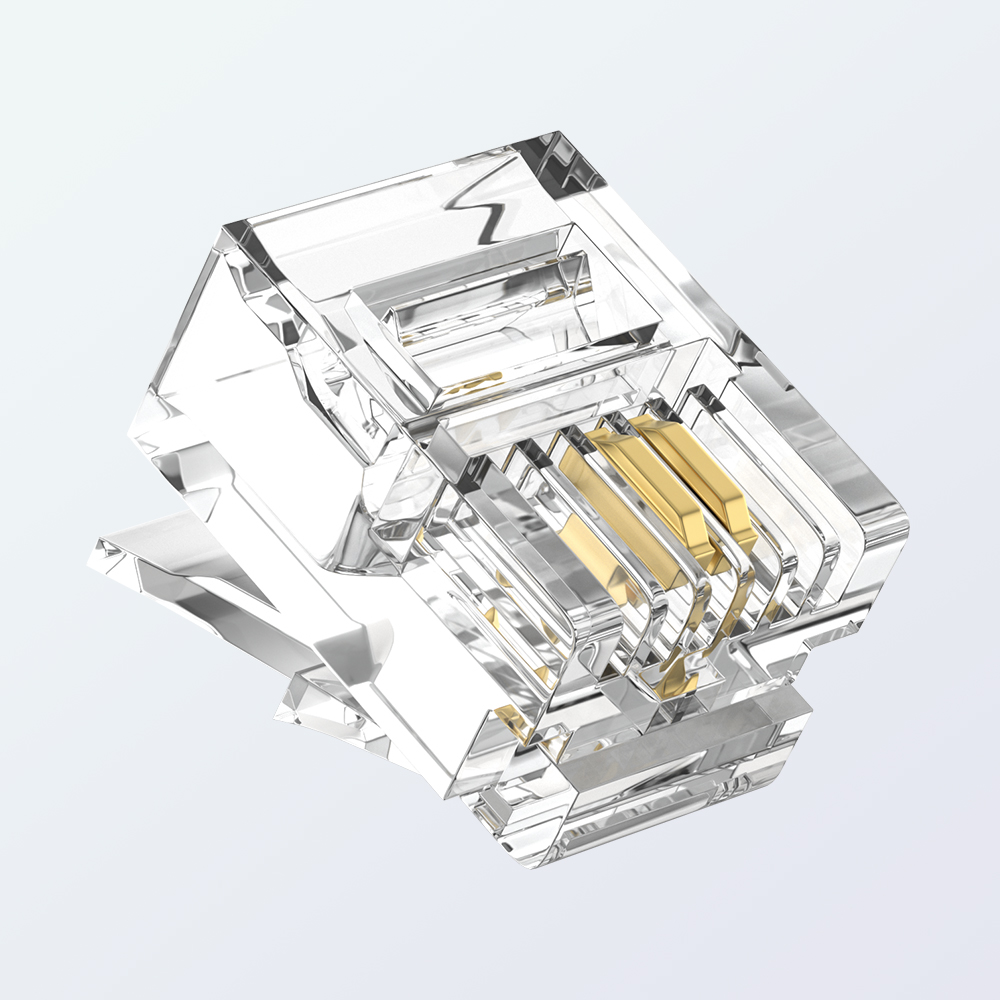

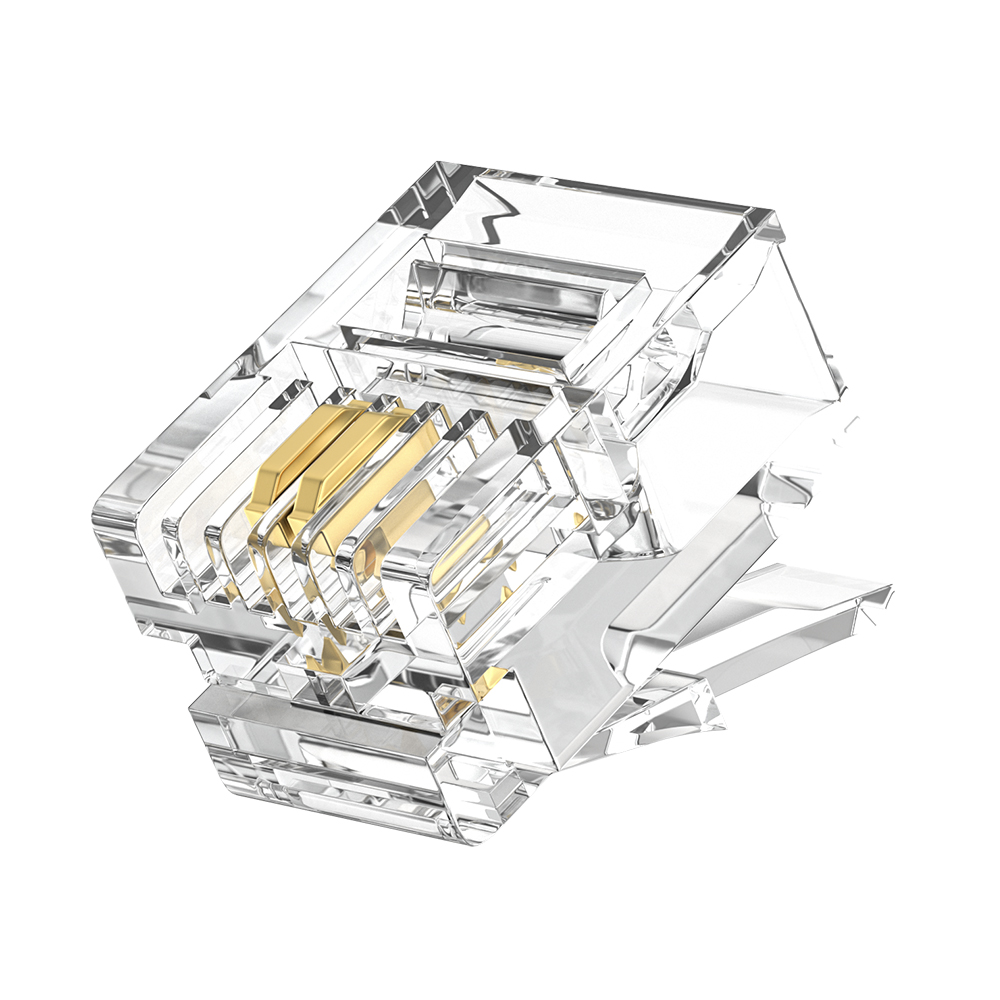

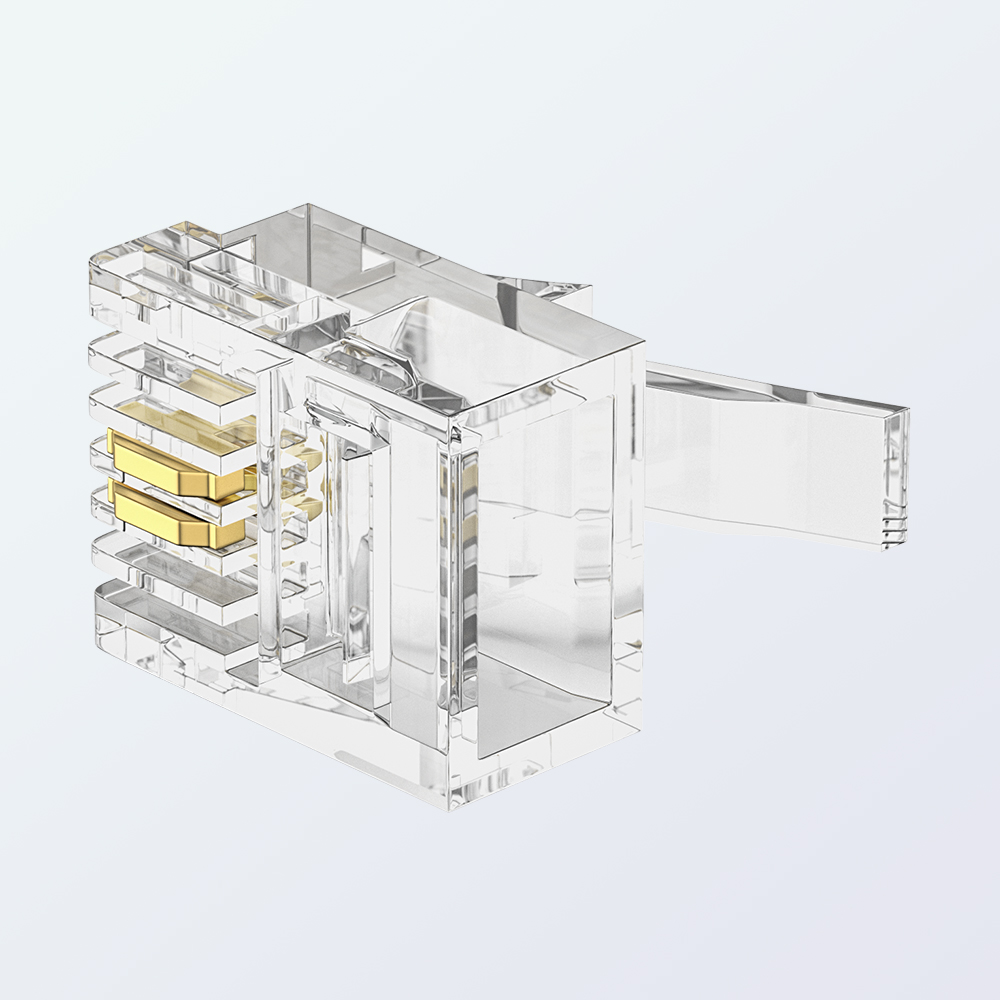

      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      • RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      • RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      • RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      • RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      • RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      • RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated
      1 / 6

      RJ11 6P2C Modular Plug UTP Telephone Connector 1U Gold Plated

      $0.02 USD
      Quantity
      Inventory: 1000000 remaining available

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments
      Item Specification
      Product Name RJ11 6P2C Modular Plug
      Model DT-105-2AB
      Brand Detwiler Tech / OEM / ODM
      Product Type Telephone Modular Plug
      Connector Type RJ11 6P2C
      Shielding Type UTP (Unshielded Twisted Pair)
      Wire Core Hole 1.0mm
      Supported Conductor Diameter 0.75–1.0mm
      Supported Cable Type Telephone Cable
      Contact Material Copper Alloy with Nickel Plating
      Contact Plating 1U Gold Plated
      Housing Material PC (Polycarbonate)
      Flame Rating UL94-V2
      Electrical Rating 250V AC, Max 2A
      Contact Resistance ≤20mΩ
      Insulation Resistance ≥500MΩ (1000V DC / 1 min)
      Dielectric Strength 1000V DC / 1 min
      Pull Test ≥89N (20 lbs for 1 min)
      Durability ≥2000 mating cycles
      Operating Temperature -40℃ ~ +125℃
      Certifications UL / CSA / CE / SGS / RoHS / ISO9001
      Packaging Box / Bag
      HS Code 8536901100
      OEM/ODM Supported

      Option Available Choices
      Gold Plating FU, 3U", 15U", 30U", 50U"
      Packaging Box, Bag, OEM Custom Packaging
      Logo Printing

      Detwiler Tech / OEM / ODM

      Product Description

      Product Overview

      This RJ11 6P2C modular plug is designed for telephone communication systems and voice transmission applications. Featuring a durable PC housing and gold plated contacts, it provides stable signal connectivity and long service life for telephone line installations.

      Key Features

      • RJ11 6P2C telephone connector
      • UTP design for voice communication applications
      • 1U gold plated contacts for reliable conductivity
      • 1.0mm core hole for easy cable termination
      • Supports 0.75–1.0mm conductors
      • Durable PC housing with UL94-V2 flame rating
      • High durability with over 2000 mating cycles
      • Operating temperature range from -40℃ to +125℃
      • Certified to UL, CSA, CE, SGS, RoHS, and ISO9001 standards

      Applications

      • Telephone systems
      • PBX installations
      • Voice communication networks
      • Residential telephone wiring
      • Commercial telecom projects

      OEM & ODM Service

      Detwiler Tech offers OEM/ODM services including custom logo printing, packaging solutions, and bulk manufacturing support for telecom distributors and communication system integrators.
