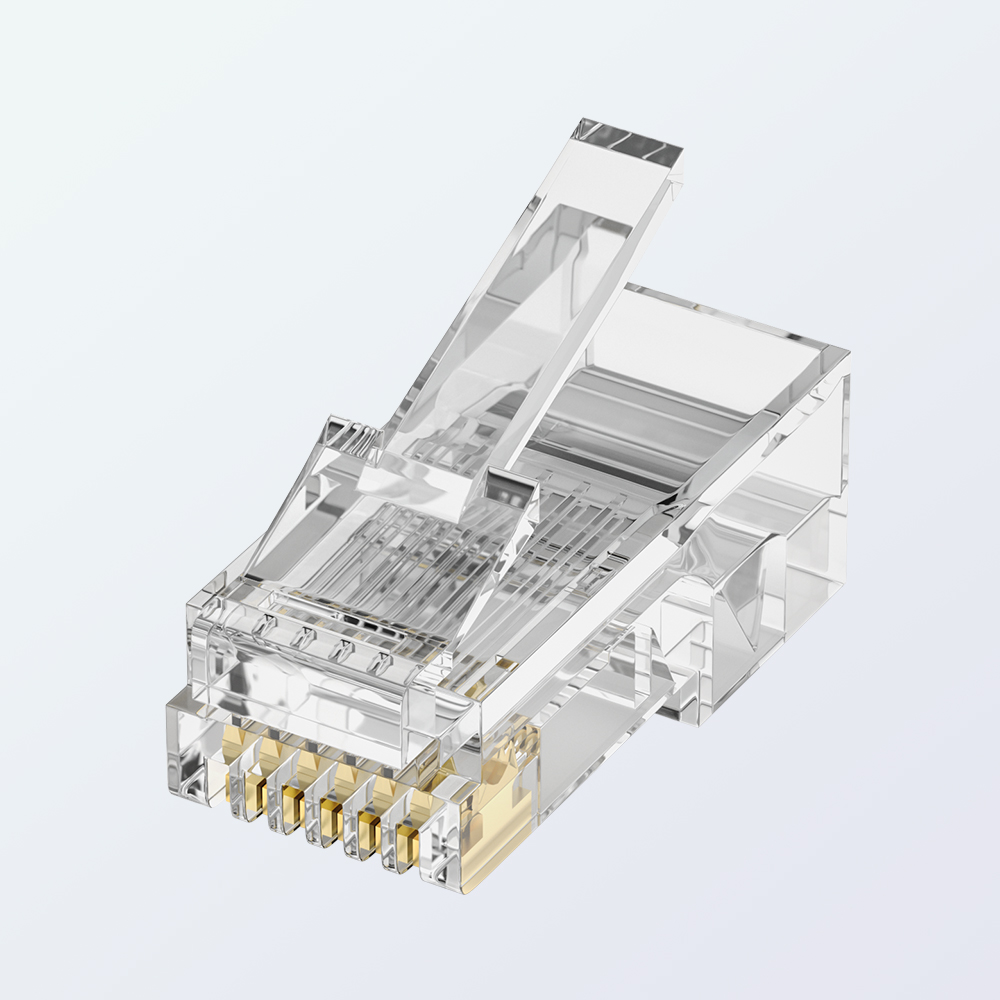

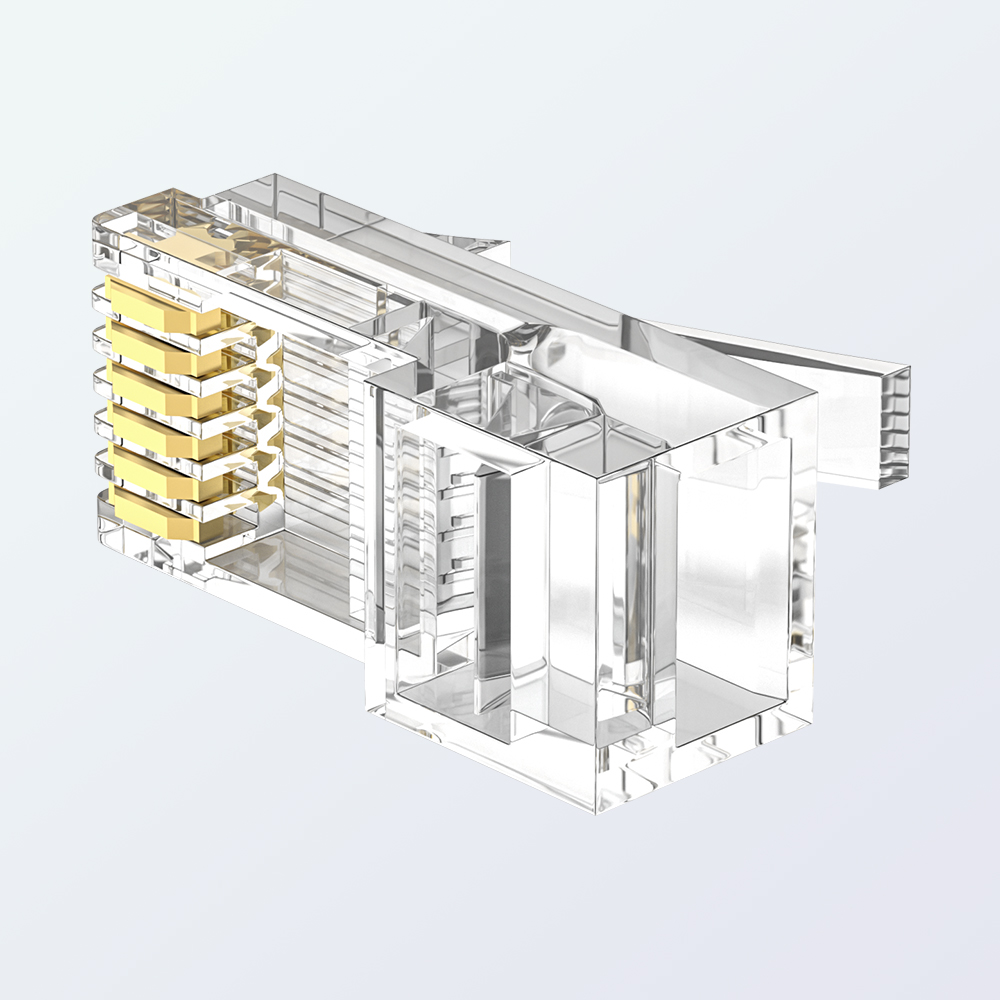

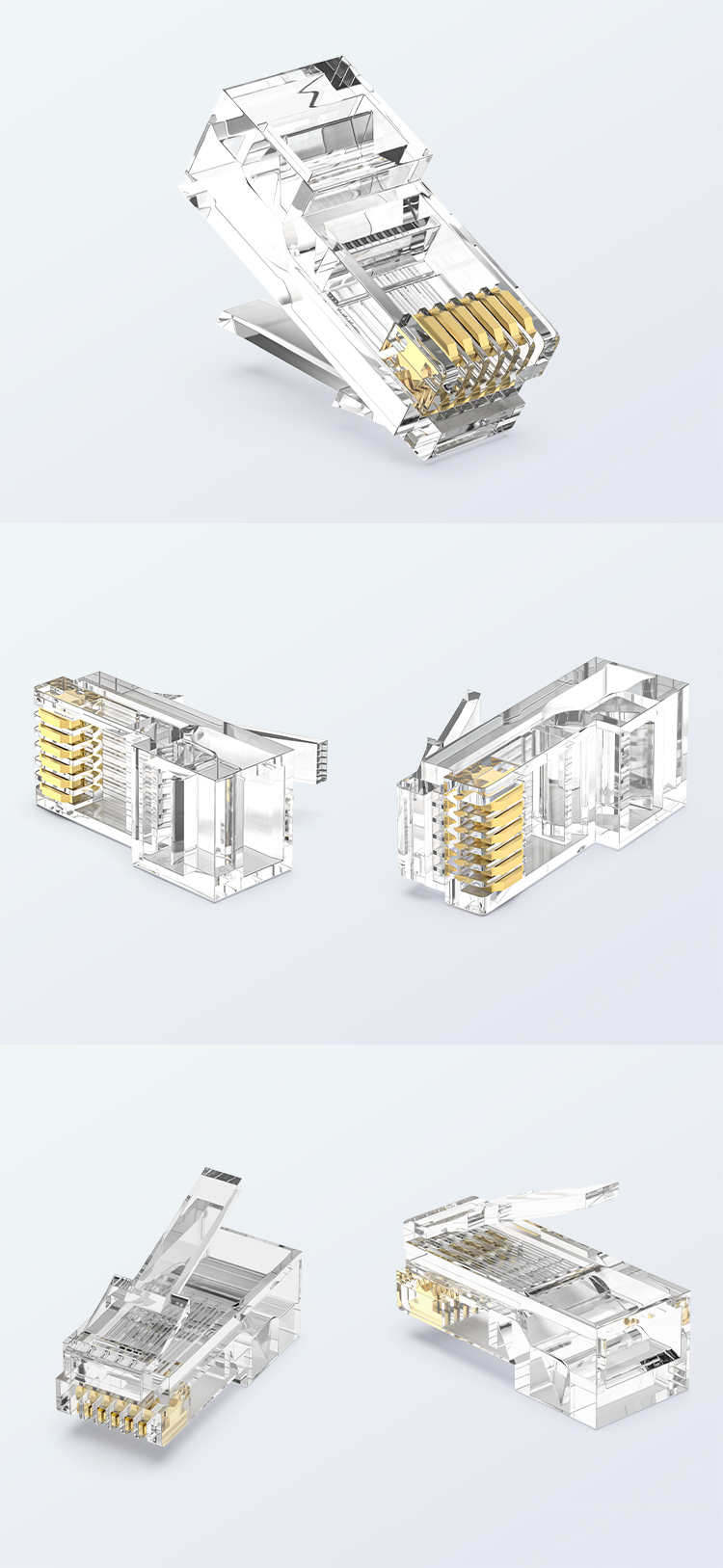

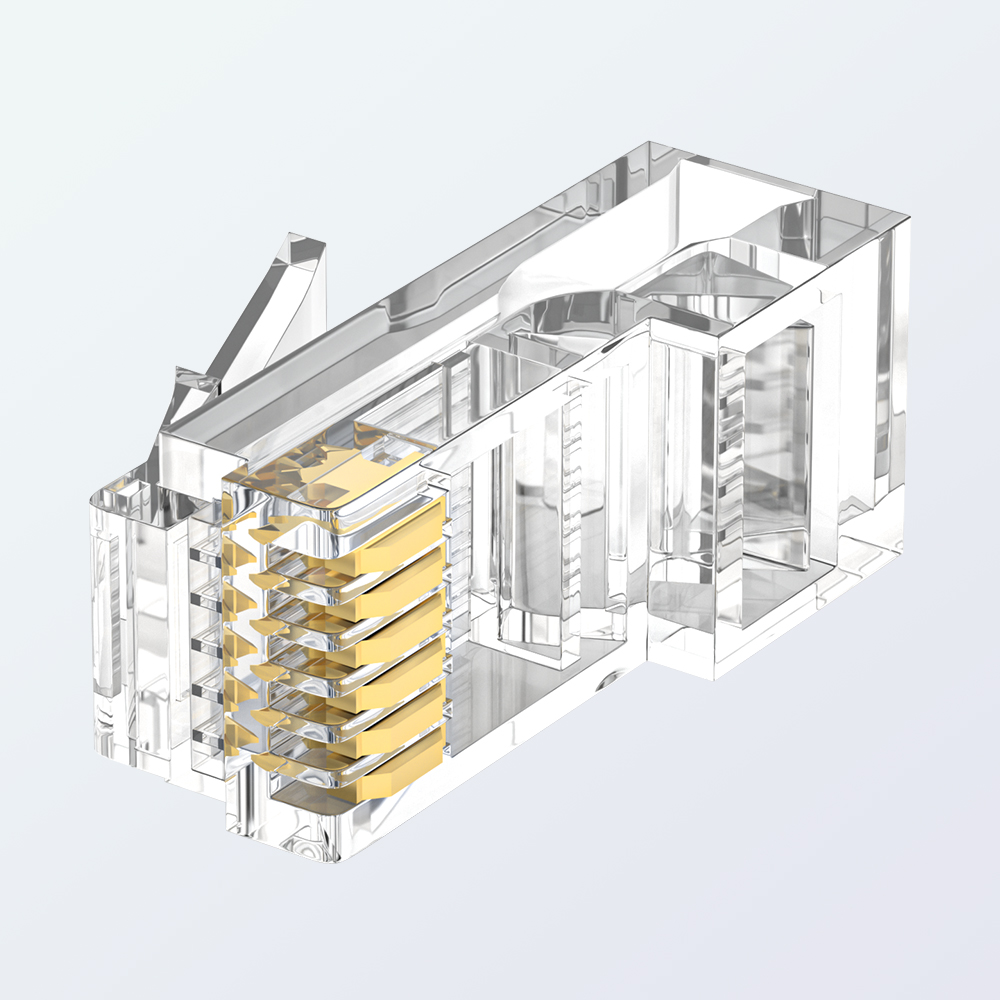

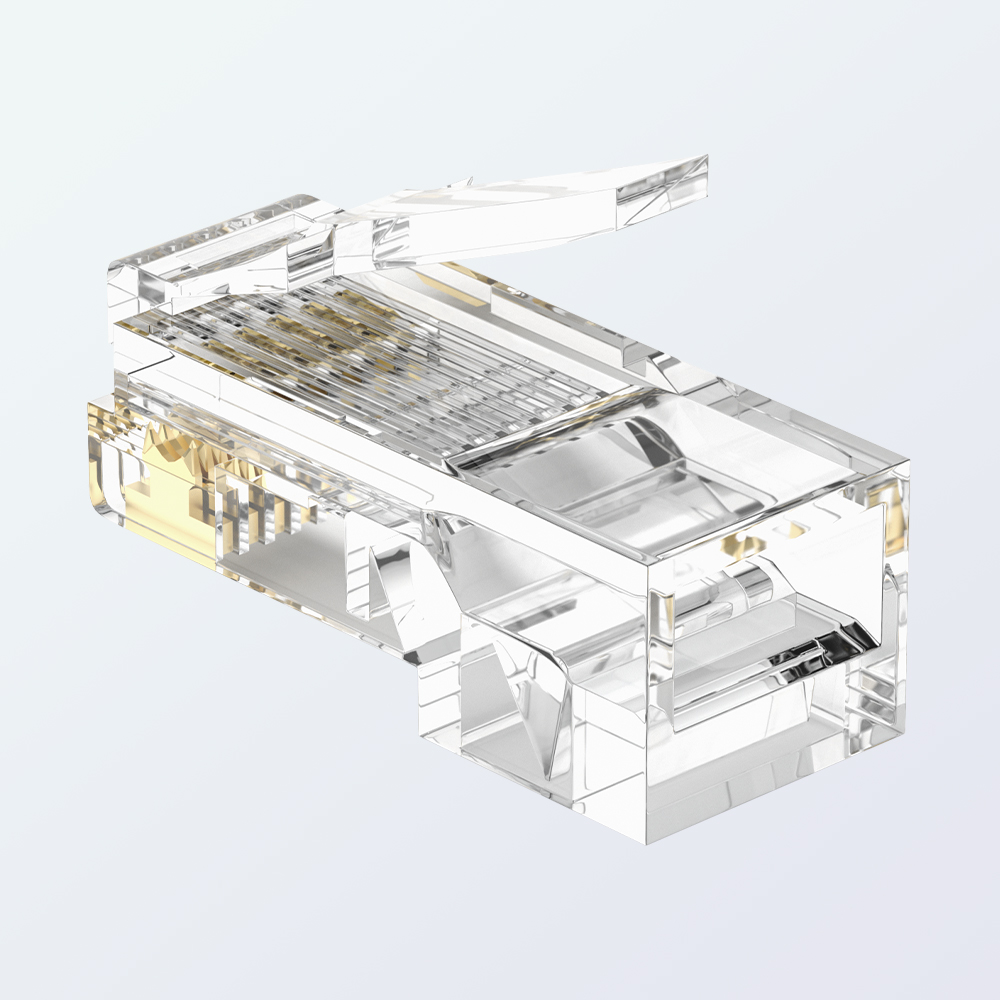

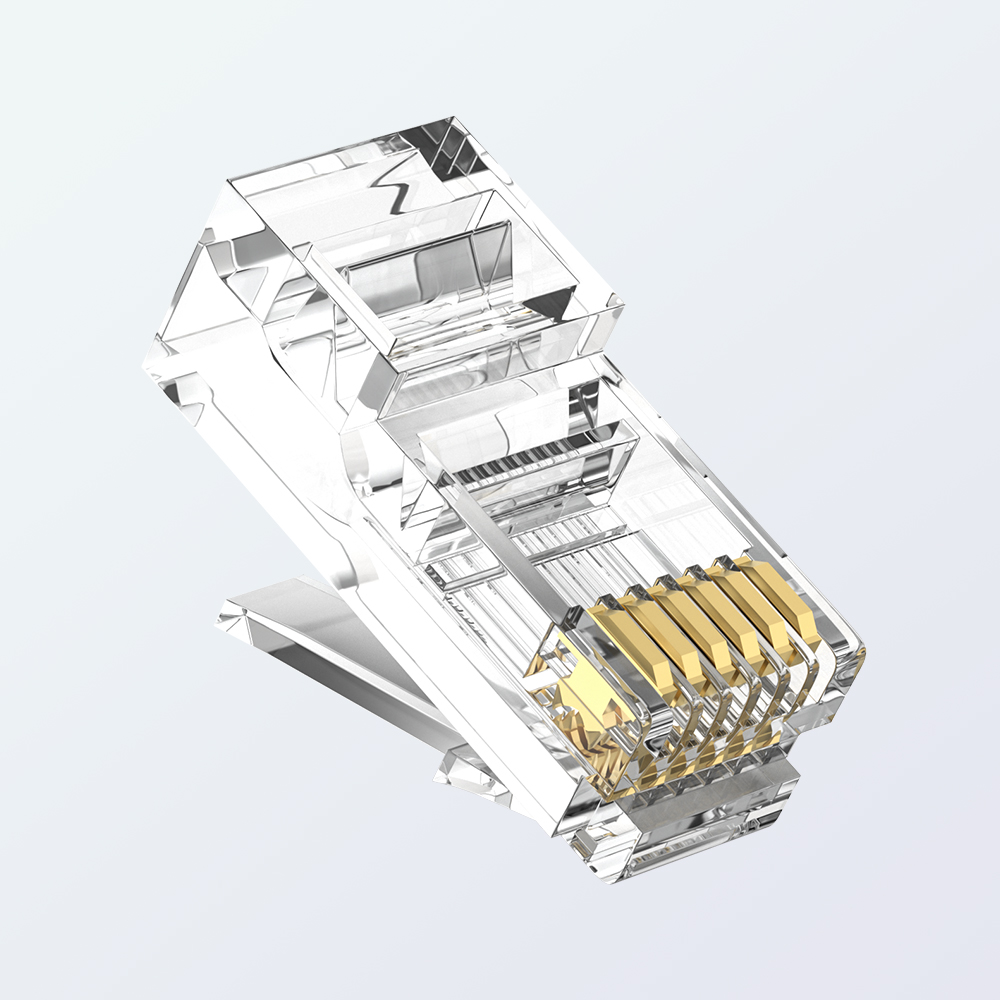

      RJ12 6P6C Extended Modular Plug for Telephone Cable 1U Gold Plated

      $0.04 USD
      Quantity
      Inventory: 1000000 remaining available

      • Free worldwide shipping

      • Free returns

      • Carbon neutral

      • Secure payments
      Item Specification
      Product Name RJ12 6P6C Extended Modular Plug
      Model DT-109T6
      Brand Detwiler Tech / OEM / ODM
      Product Type Telephone Modular Plug
      Connector Type RJ12 6P6C
      Structure Extended Body Design
      Shielding Type UTP (Unshielded Twisted Pair)
      Wire Core Hole 1.0mm
      Supported Conductor Diameter 0.75–1.0mm
      Supported Cable Type Telephone Cable
      Contact Material Copper Alloy with Nickel Plating
      Contact Plating 1U Gold Plated
      Housing Material PC (Polycarbonate)
      Flame Rating UL94-V2
      Electrical Rating 125V AC 1.5A @ 25°C
      Contact Resistance ≤20mΩ
      Insulation Resistance ≥500MΩ (100V DC / 1 min)
      Dielectric Strength 1000V AC / 1 min, No Breakdown
      Insertion & Withdrawal Force ≤30N
      Durability ≥750 Mating Cycles
      Operating Temperature -40℃ ~ +85℃
      Certifications UL / CSA / CE / SGS / RoHS / ISO9001
      Environmental Compliance RoHS / REACH Compliant
      Packaging Box / Bag
      HS Code 8536901100
      OEM/ODM Supported

      Option Available Choices
      Gold Plating FU, 1U, 3U", 15U", 30U", 50U"
      Packaging Box, Bag, OEM Custom Packaging
      Logo Printing Detwiler Tech / OEM / ODM

      Product Description

      Product Overview

      The DT-109T6 RJ12 6P6C extended modular plug is designed for telephone, PBX, intercom, and voice communication systems. Its extended body structure provides easier termination and improved cable retention, making it suitable for professional telecom installations.

      Key Features

      • RJ12 6P6C connector for telephone and communication systems
      • Extended body design for easier cable assembly
      • 1U gold plated contacts for stable signal transmission
      • Supports 0.75–1.0mm conductor diameter
      • Compatible with standard telephone cables
      • Durable PC housing with UL94-V2 flame resistance
      • Reliable electrical performance and long service life
      • RoHS and REACH compliant materials
      • Certified by UL, CSA, CE, SGS, RoHS, and ISO9001

      Applications

      • Telephone systems
      • PBX systems
      • Voice communication networks
      • Intercom systems
      • Telecom infrastructure projects
      • Security and access control systems

      OEM & ODM Service

      Detwiler Tech offers professional OEM/ODM manufacturing services, including customized logo printing, packaging design, and bulk production solutions for telecom distributors, communication equipment suppliers, and system integrators worldwide.
