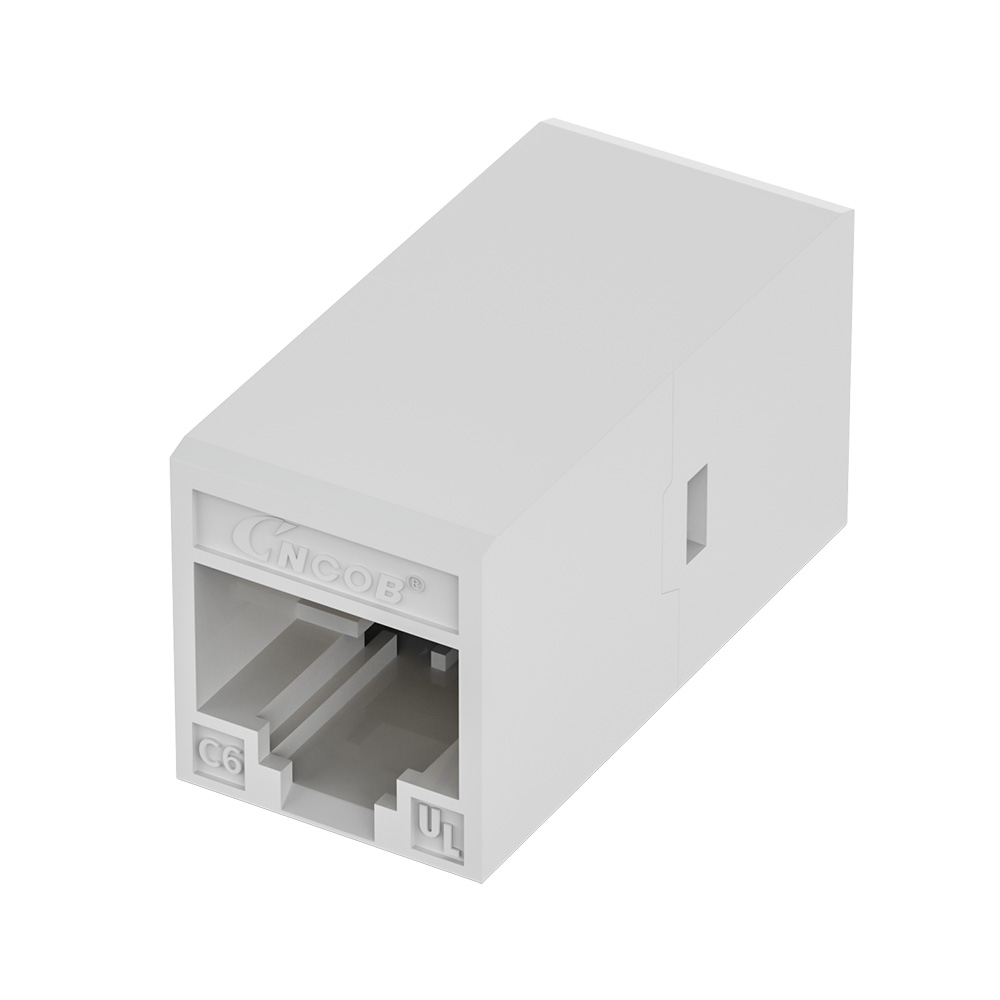

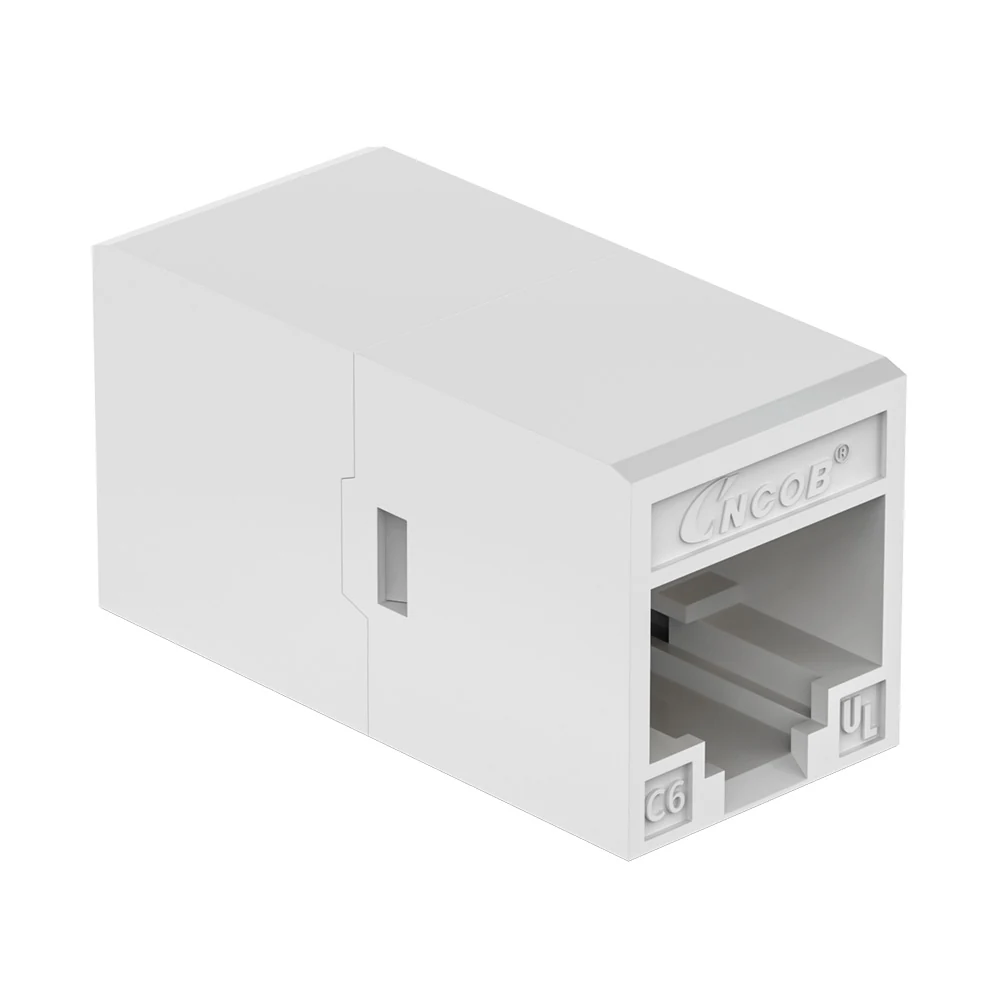

CAT6 RJ45 Inline Coupler Female to Female Ethernet Cable Extender White
High-speed CAT6 RJ45 inline coupler designed for stable Ethernet cable extension with reliable signal transmission over long distances. Featuring a compact female-to-female design, gold-plated contacts, FR4 PCB, and flame-retardant PC housing, it ensures high-performance network connectivity for structured cabling, data centers, and enterprise networks.
SKU Variants
DT-ZT2002TWB-6-W
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT6 RJ45 Inline Coupler |
| Model | DT-ZT2002TWB-6 |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | RJ45 Female to Female Coupler |
| Connector Type | RJ45 Interface |
| Category | CAT6 |
| Function | Ethernet Cable Extension |
| Front Housing Material | PC UL94-V0 |
| Rear Housing Material | PC / ABS UL94-V0 |
| Color | Black / White / Transparent |
| PCB Material | FR4 |
| PCB Thickness | 1.0mm |
| Contact Material | Phosphor Bronze Flat Wire |
| Contact Plating | Nickel Plated |
| Gold Plating | 3U |
| Insulation Resistance | ≥500MΩ |
| Insertion Force | ≤20N (IEC 60603-7) |
| Retention Strength | 8.0kg Between Plug and Jack |
| Operating Temperature | -10°C ~ +68°C |
| Durability | ≥750 Mating Cycles |
| Transmission Performance | CAT6 Compliant with TIA-568.2-D |
| Packaging | Individual Bag / OEM Package |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Color | Black, White, Transparent |
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U |
| Category | CAT5E, CAT6, CAT6A |
| Packaging | Bag, Box, OEM Package |
| Brand | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
The Detwiler Tech DT-ZT2002TWB-6 CAT6 RJ45 Inline Coupler is a high-performance female-to-female Ethernet adapter designed for extending network cable connections while maintaining stable data transmission. It complies with CAT6 transmission performance requirements of TIA-568.2-D, providing reliable connectivity for professional structured cabling applications.
Featuring a durable PC UL94-V0 flame-retardant housing, FR4 PCB, and phosphor bronze contacts with 3U gold plating, this RJ45 coupler delivers excellent conductivity, mechanical durability, and long-term connection reliability.
Key Features
- CAT6 RJ45 female-to-female inline coupler
- Supports Ethernet cable extension applications
- CAT6 transmission performance compliant with TIA-568.2-D
- 3U gold-plated contact area for stable conductivity
- FR4 PCB with 1.0mm thickness
- Flame-retardant PC UL94-V0 housing
- Low insertion loss and reliable signal transmission
- Supports ≥750 mating cycles
- Available in multiple housing colors
- OEM & ODM customization supported
Applications
- Structured Cabling Systems
- Ethernet Network Extension
- Data Center Cabling
- Server Room Networks
- Office LAN Systems
- IP Camera Networks
- Telecom Infrastructure
- Enterprise Network Deployment
OEM & ODM Service
Detwiler Tech provides professional OEM/ODM networking accessory solutions, including custom logo printing, housing color customization, gold plating options, private packaging, barcode labels, and customized RJ45 connectivity products for distributors, system integrators, and global brands.
Buyer specification guide
Evaluate a Cat6 RJ45 inline coupler as part of the channel
A Cat6 RJ45 inline coupler can join two terminated Ethernet cables, but the complete channel still depends on the cable, plugs and installation quality. Confirm the application and test requirement before approval.
Information to confirm before quotation
- Female RJ45 interface, cable category and plug compatibility
- Installation location, housing color and available clearance
- Channel test requirement, sample quantity and packaging
Frequently asked questions
Does adding an inline coupler change the Ethernet channel?
It adds another connection point. The finished link should be assessed with the actual cable and plugs using the test method required by the project.
Which details are needed before selecting a Cat6 coupler?
Confirm cable and plug category, shielding plan, installation position, housing requirement and whether channel or permanent-link test results are required.
See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
