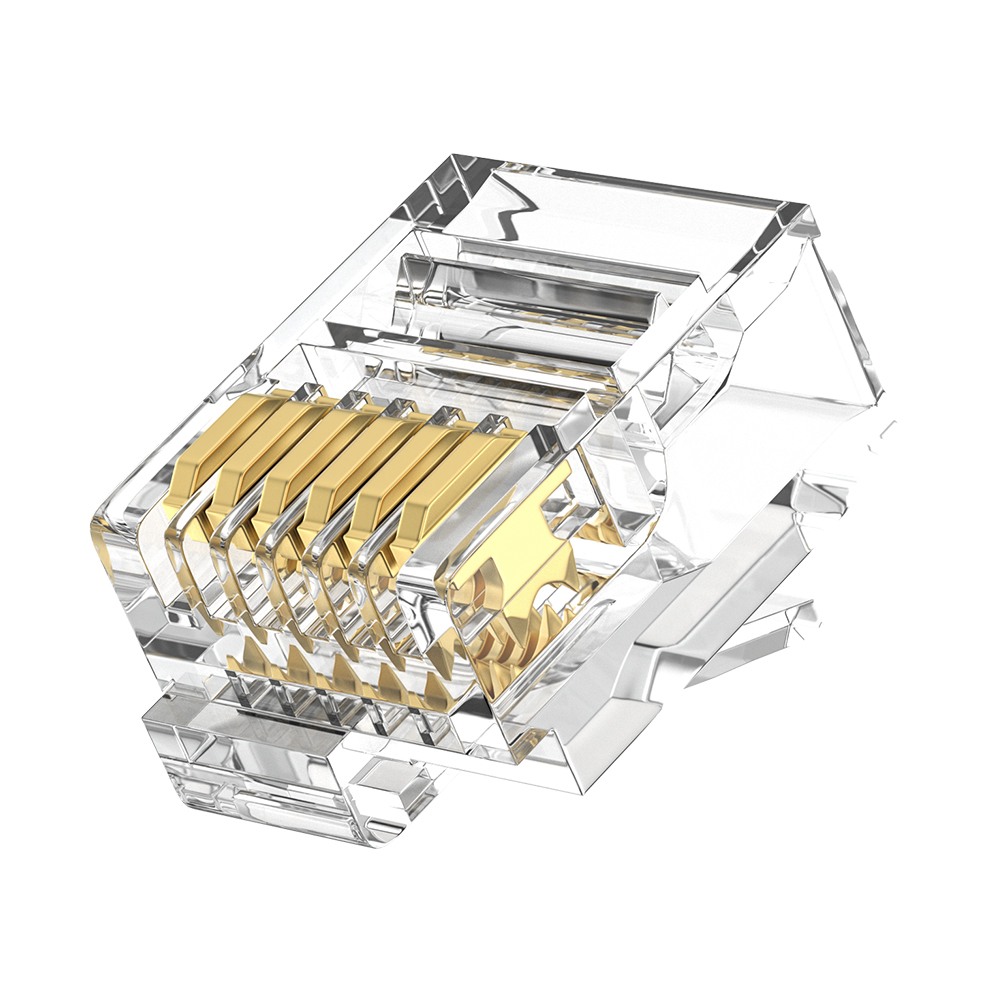

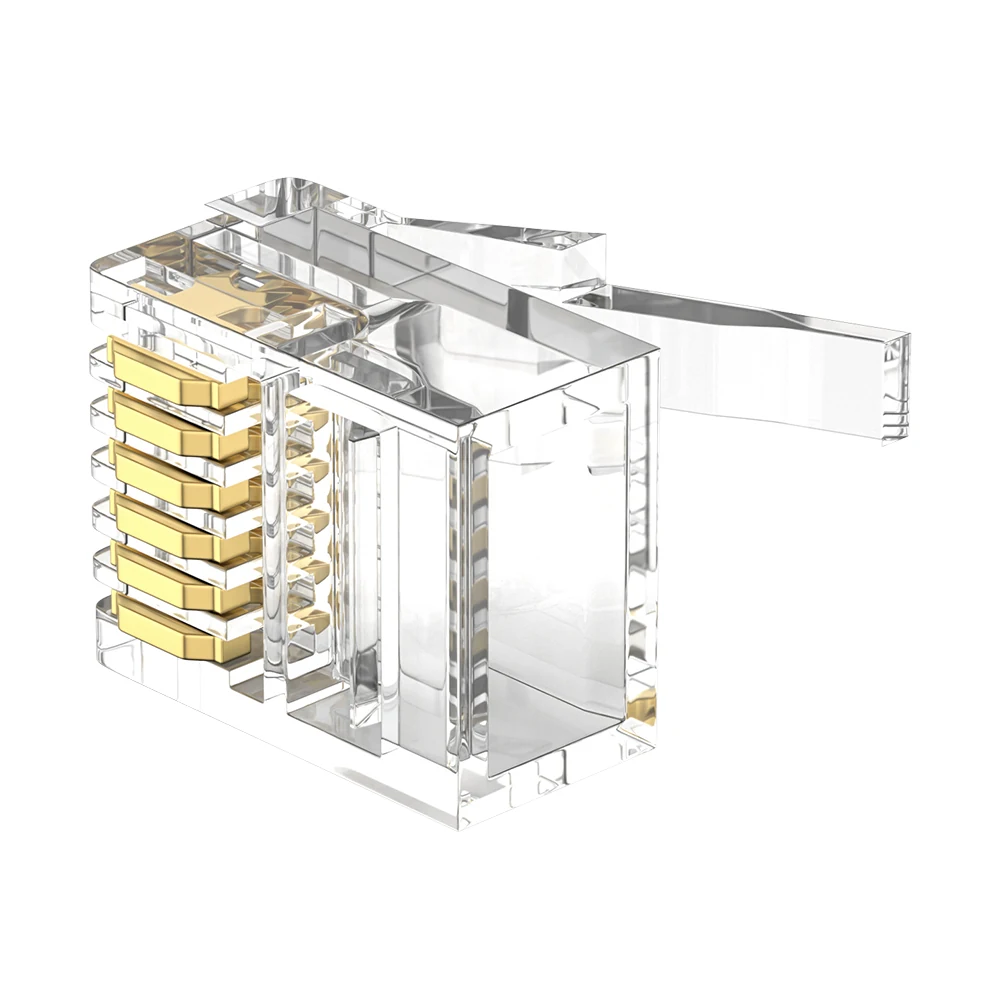

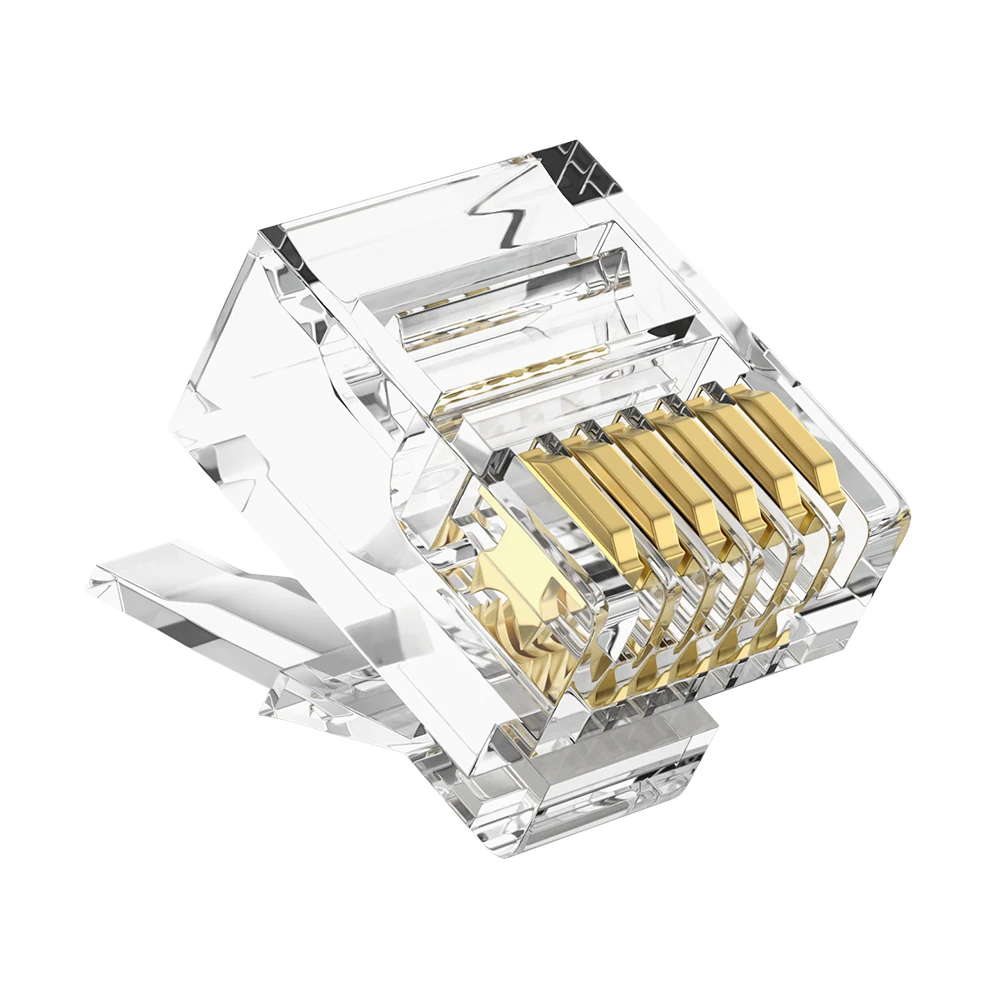

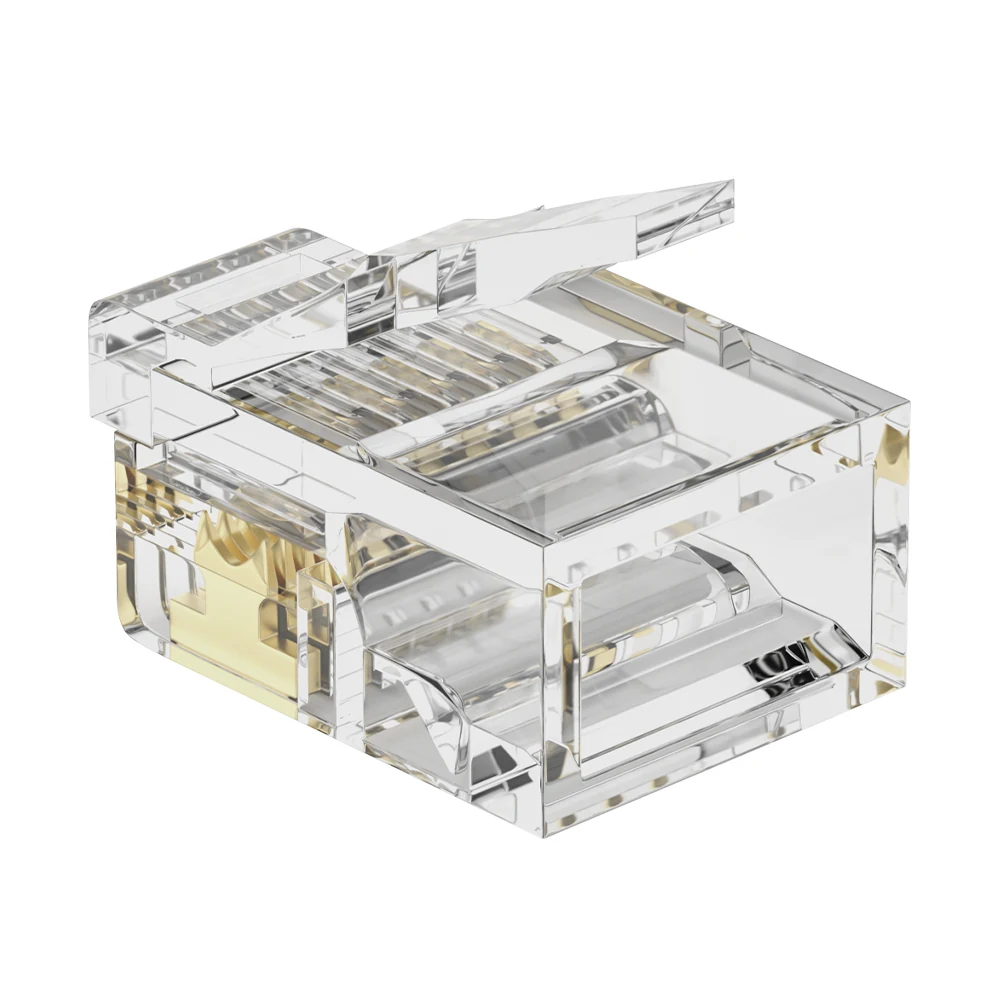

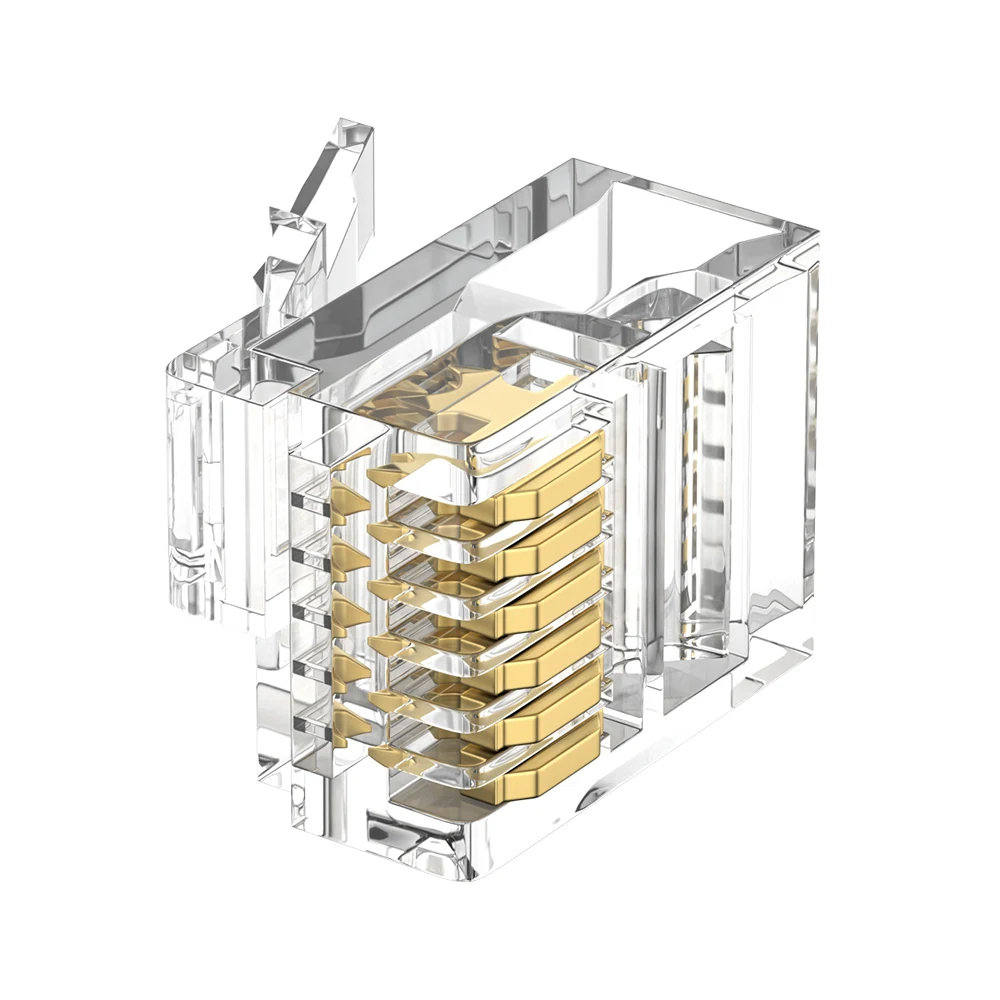

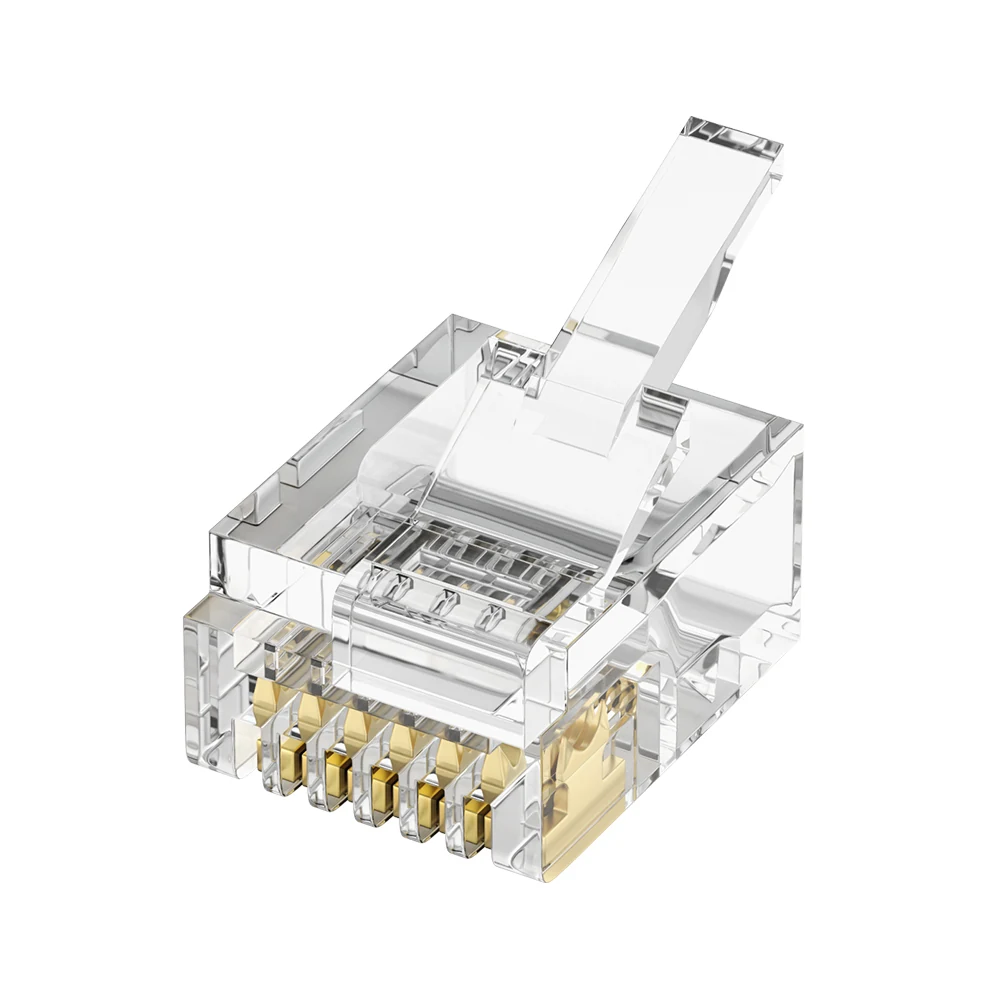

6P6C RJ11 Right Angle Modular Plug UTP 1.0mm Telephone Connector 1U Gold Plated
6P6C RJ11 right angle (USA-style bent tab) modular plug with 1.0mm core hole and UTP structure. Designed for telephone line applications, featuring 1U gold plated contacts, PC housing, and stable electrical performance for reliable voice communication systems.
SKU Variants
DT-101C
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | 6P6C RJ11 Right Angle Modular Plug |
| Model | DT-101C |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Telephone Modular Plug |
| Connector Type | 6P6C RJ11 Right Angle (Bent Tab) |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Contact Material | Copper Alloy with Nickel Plating |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC (Polycarbonate) |
| Wire Core Hole | 1.0mm |
| Supported Conductor Diameter | 0.75–1.0mm |
| Supported Cable Type | Telephone Cable |
| Flame Rating | UL94-V2 |
| Electrical Rating | 125V AC 1.5A @ 25°C |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (100V DC / 1 min) |
| Dielectric Strength | 1000V AC / 1 min, no breakdown |
| Insertion & Withdrawal Force | Max 30N |
| Durability | ≥750 mating cycles |
| Operating Temperature | -40℃ ~ +85℃ |
| Certifications | UL / CSA / CE / SGS / RoHS / ISO9001 |
| Packaging | Box / Bag |
| Environmental Compliance | RoHS / REACH Compliant |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
This 6P6C RJ11 right angle modular plug is designed for telephone communication systems, featuring a USA-style bent tab structure for easy installation in compact environments. With a 1.0mm core hole and UTP design, it ensures stable voice transmission performance.
Key Features
- 6P6C RJ11 right angle (USA-style bent tab) design
- UTP structure for standard telephone applications
- 1U gold plated contacts for stable conductivity
- 1.0mm wire core hole for precise cable fit
- PC housing with UL94-V2 flame rating
- High durability with ≥750 mating cycles
- Operating temperature: -40℃ to +85℃
- Certified by UL, CSA, CE, SGS, RoHS, ISO9001
Applications
- Telephone wiring systems
- Voice communication networks
- Office PBX systems
- Residential telephone installations
- Low-voltage communication systems
OEM & ODM Service
Detwiler Tech supports full OEM/ODM customization including logo printing, packaging solutions, and bulk manufacturing for global distributors and telecom projects.
Buyer specification guide
Match a right-angle 6P6C modular plug to the equipment
A right-angle 6P6C modular plug must match the contact sequence, cable dimensions and latch orientation of the intended equipment. Approve the interface drawing or a terminated sample before ordering a production lot.
Information to confirm before quotation
- Six-position, six-contact wiring sequence and equipment interface
- Cable construction, insulation diameter and 1.0 mm core-hole fit
- Latch direction, contact plating, quantity and packaging format
Frequently asked questions
Why should the 6P6C contact arrangement be confirmed?
6P6C identifies six positions and six contacts, but equipment naming and wiring assignments can vary. Approve the pin sequence against the equipment drawing or sample.
What is needed to verify the right-angle plug fit?
Send the plug orientation drawing, cable dimensions, conductor sequence, mating-jack details and a sample reference when available.

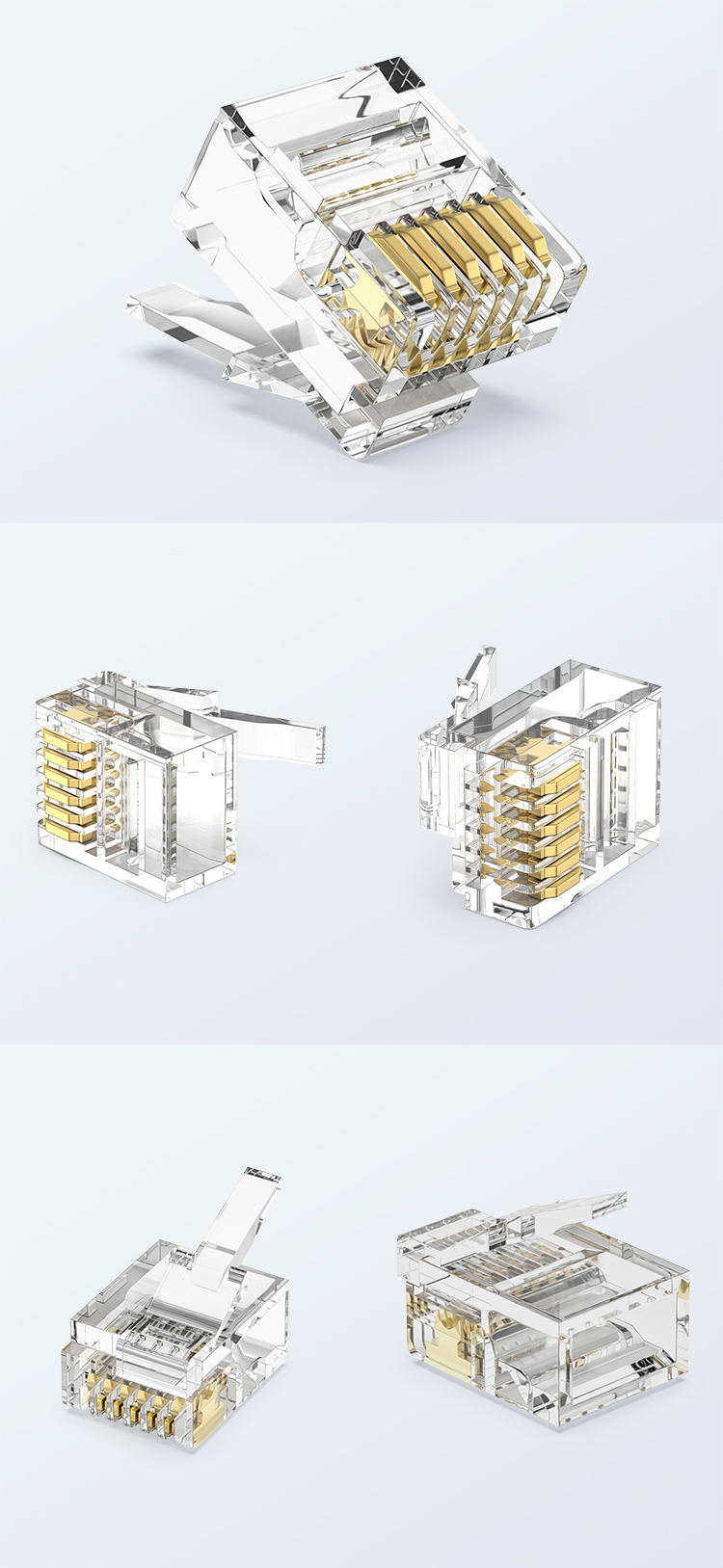

See the Product from Every Critical Angle
