RJ12 Modular Plug

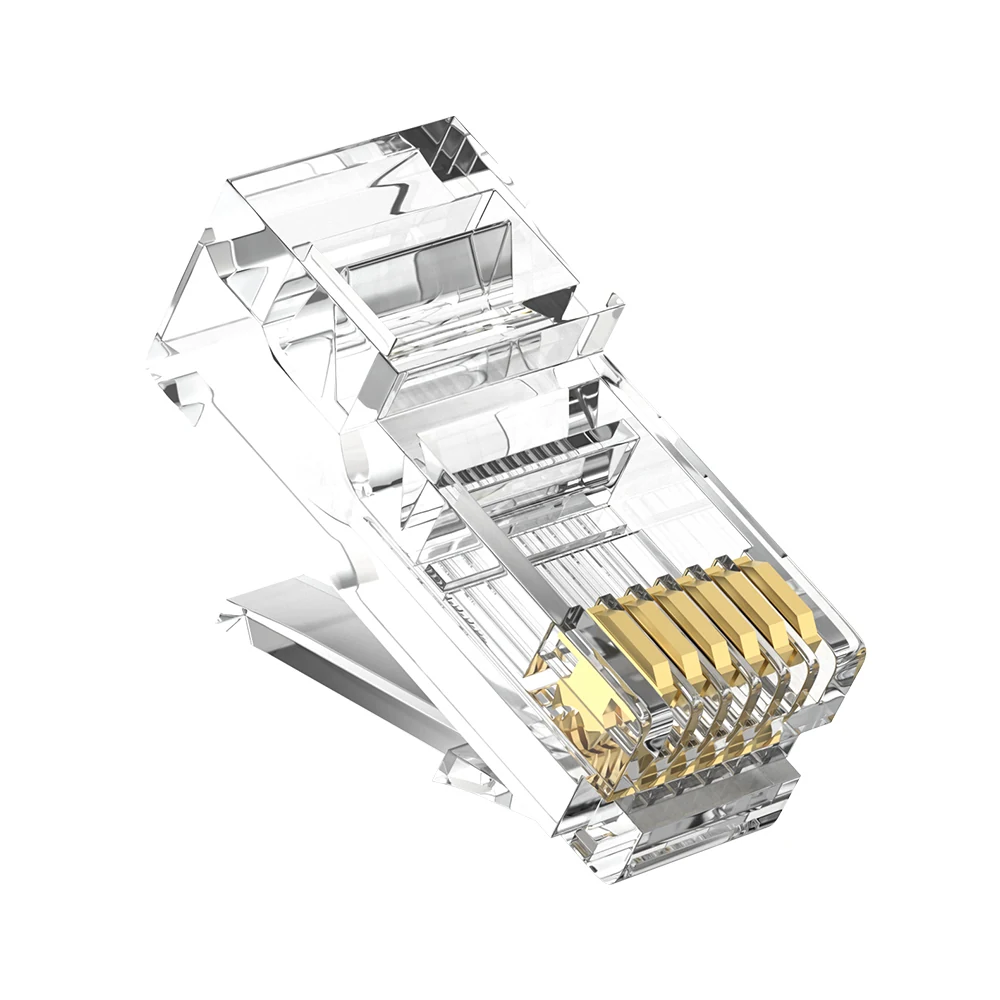

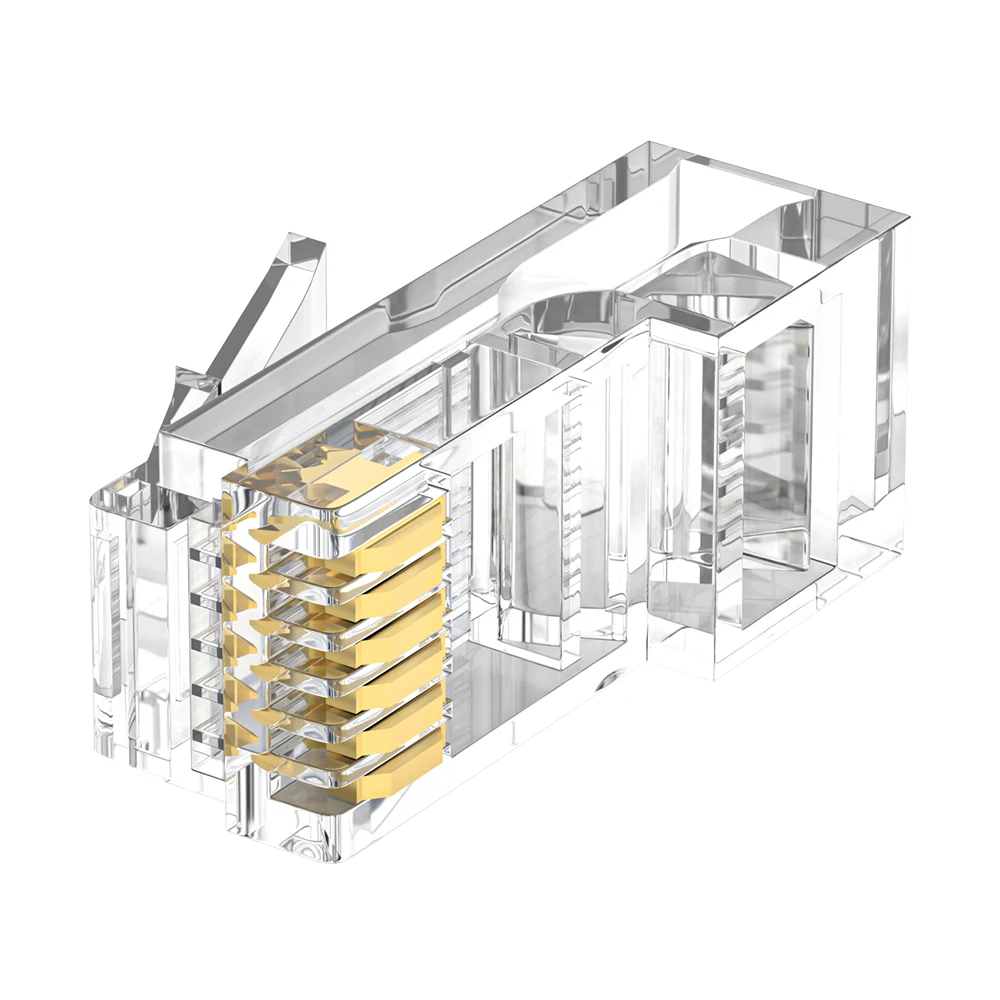

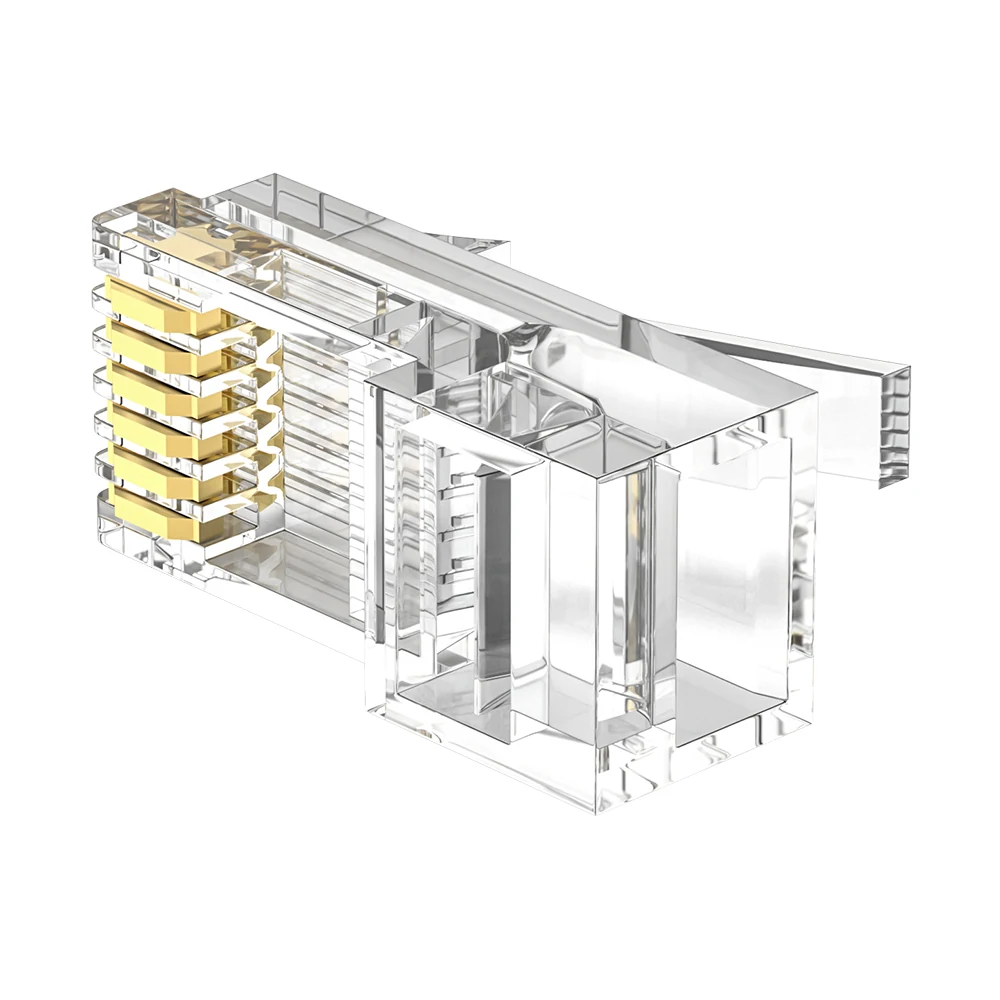

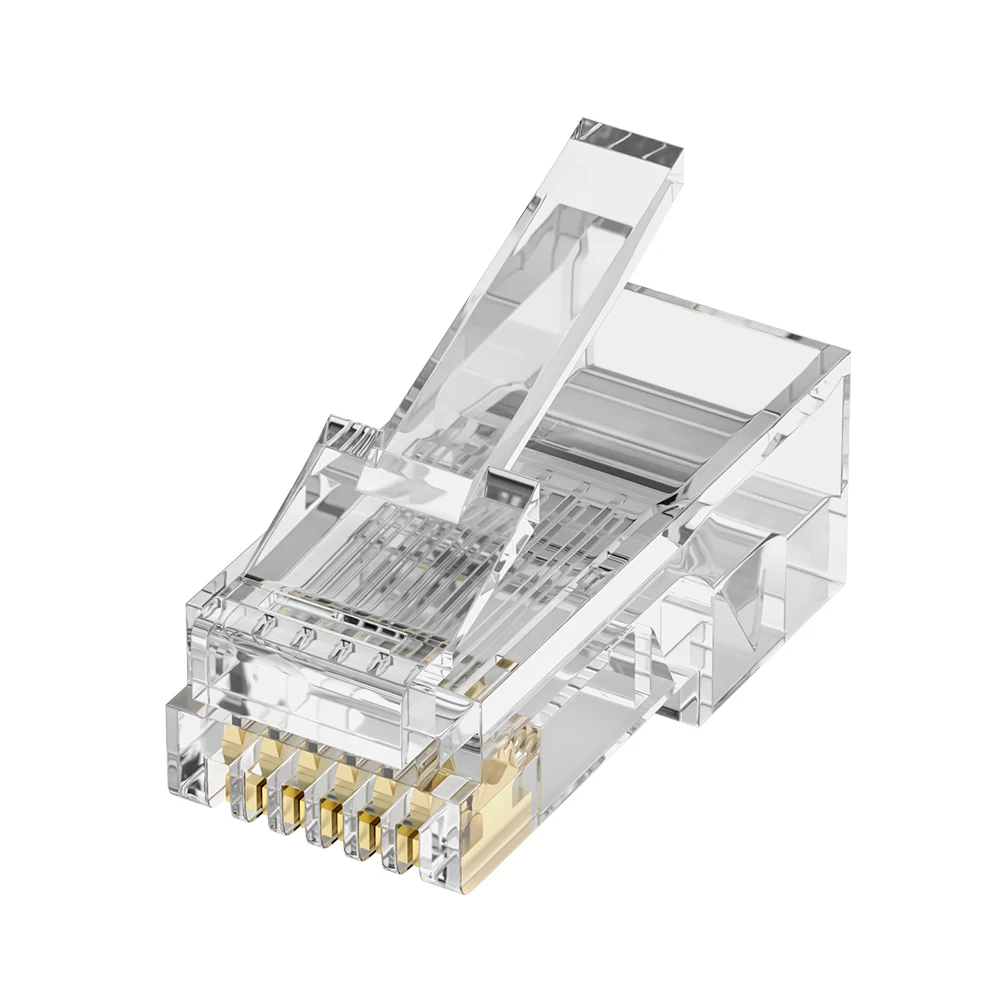

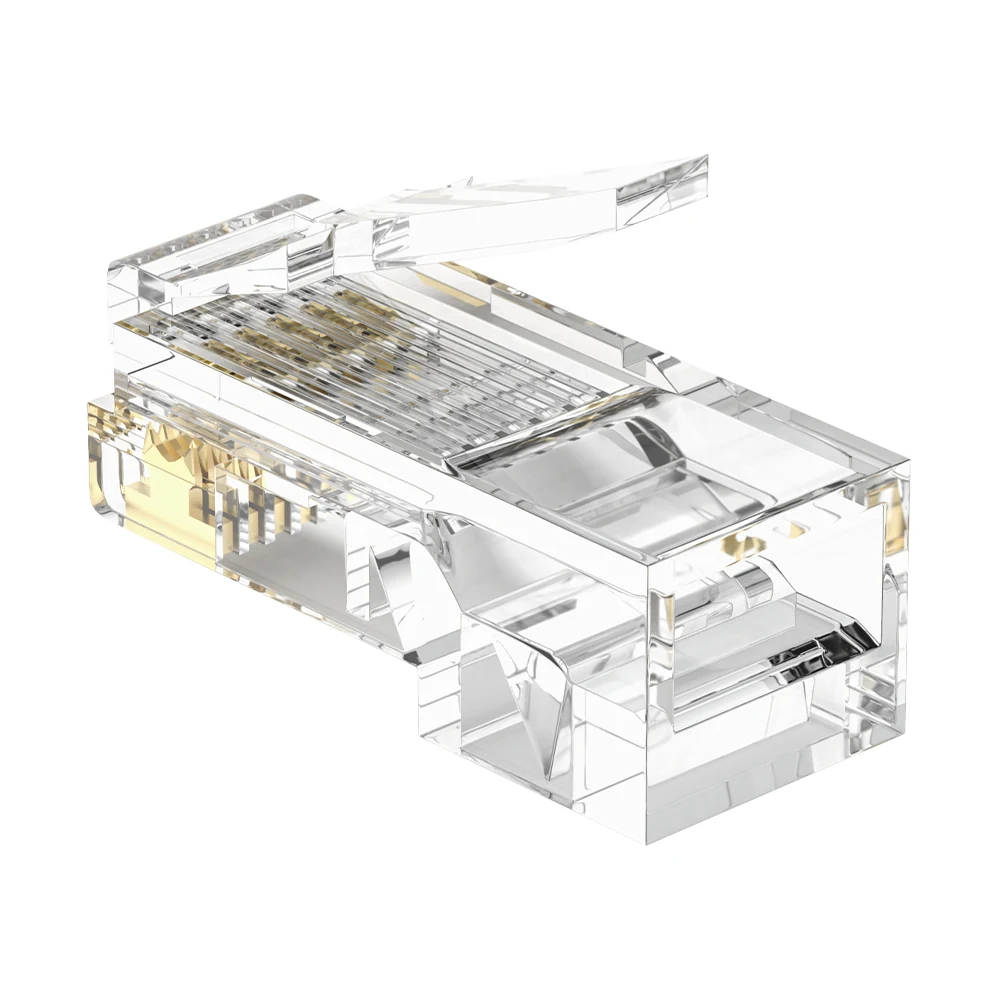

RJ12 6P6C Extended Modular Plug for Telephone Cable 1U Gold Plated
RJ12 6P6C extended modular plug designed for telephone and voice communication systems. Features 1U gold plated contacts, durable PC housing, and supports 0.75–1.0mm conductors for stable signal transmission and reliable connectivity.
SKU Variants
DT-109T6
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | RJ12 6P6C Extended Modular Plug |
| Model | DT-109T6 |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Telephone Modular Plug |
| Connector Type | RJ12 6P6C |
| Structure | Extended Body Design |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Wire Core Hole | 1.0mm |
| Supported Conductor Diameter | 0.75–1.0mm |
| Supported Cable Type | Telephone Cable |
| Contact Material | Copper Alloy with Nickel Plating |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC (Polycarbonate) |
| Flame Rating | UL94-V2 |
| Electrical Rating | 125V AC 1.5A @ 25°C |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (100V DC / 1 min) |
| Dielectric Strength | 1000V AC / 1 min, No Breakdown |
| Insertion & Withdrawal Force | ≤30N |
| Durability | ≥750 Mating Cycles |
| Operating Temperature | -40℃ ~ +85℃ |
| Certifications | UL / CSA / CE / SGS / RoHS / ISO9001 |
| Environmental Compliance | RoHS / REACH Compliant |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 1U, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
The DT-109T6 RJ12 6P6C extended modular plug is designed for telephone, PBX, intercom, and voice communication systems. Its extended body structure provides easier termination and improved cable retention, making it suitable for professional telecom installations.
Key Features
- RJ12 6P6C connector for telephone and communication systems
- Extended body design for easier cable assembly
- 1U gold plated contacts for stable signal transmission
- Supports 0.75–1.0mm conductor diameter
- Compatible with standard telephone cables
- Durable PC housing with UL94-V2 flame resistance
- Reliable electrical performance and long service life
- RoHS and REACH compliant materials
- Certified by UL, CSA, CE, SGS, RoHS, and ISO9001
Applications
- Telephone systems
- PBX systems
- Voice communication networks
- Intercom systems
- Telecom infrastructure projects
- Security and access control systems
OEM & ODM Service
Detwiler Tech offers professional OEM/ODM manufacturing services, including customized logo printing, packaging design, and bulk production solutions for telecom distributors, communication equipment suppliers, and system integrators worldwide.
Buyer specification guide
Match an RJ12 6P6C modular plug to the cable and equipment
An RJ12 6P6C modular plug should be approved against the telephone cable dimensions, six-contact wiring sequence and mating equipment. A drawing or terminated sample reduces compatibility risk before production.
Information to confirm before quotation
- Six-position, six-contact wiring assignment and equipment interface
- Cable conductor construction, insulation diameter and core-hole fit
- Contact plating, sample quantity, marking and packaging format
Frequently asked questions
What does 6P6C mean on an RJ12 modular plug?
It means the plug has six positions and six contacts. The conductor assignment must still match the cable and the telephone or control equipment.
Which cable details are required for an RJ12 plug review?
Provide conductor construction, insulation diameter, cable shape and dimensions, wiring sequence, mating interface and the intended crimping tool.

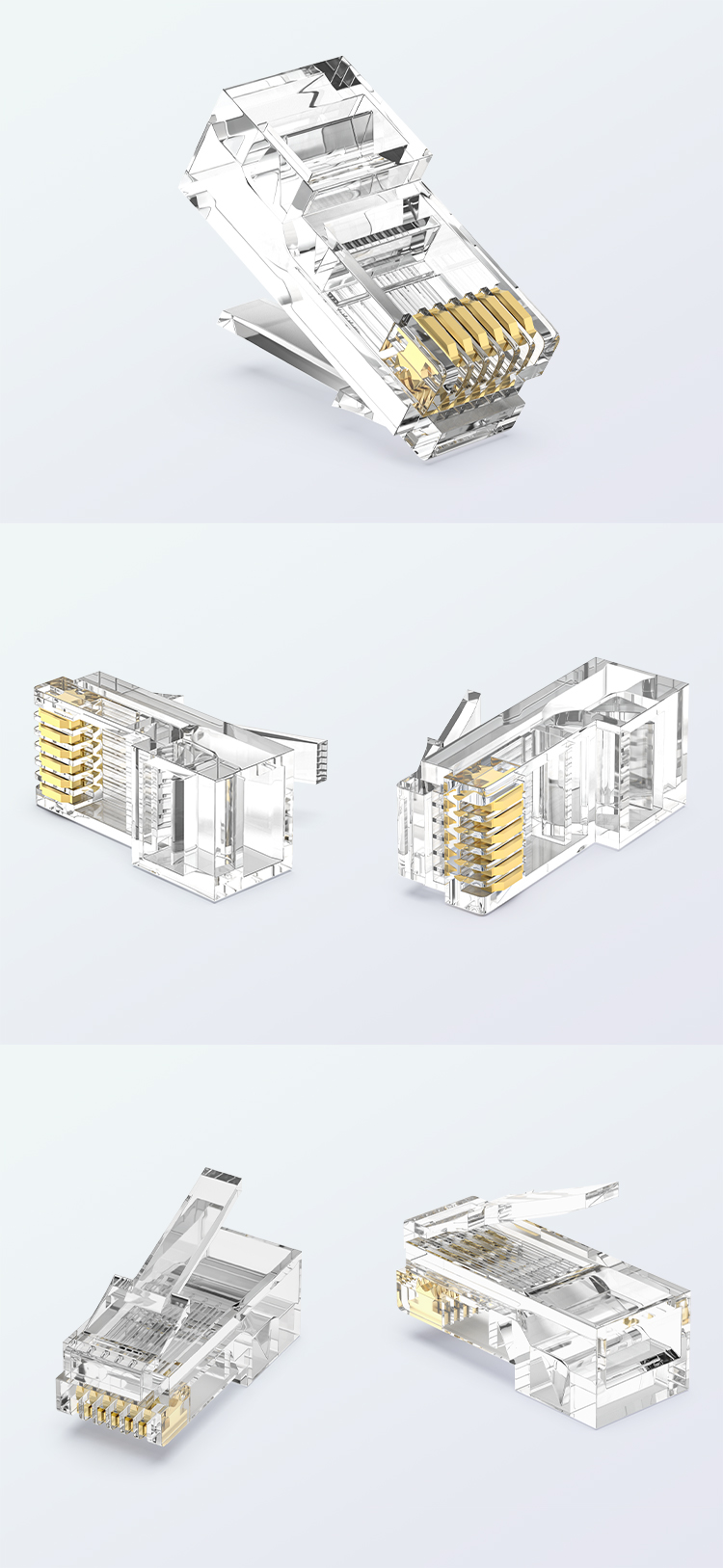

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
