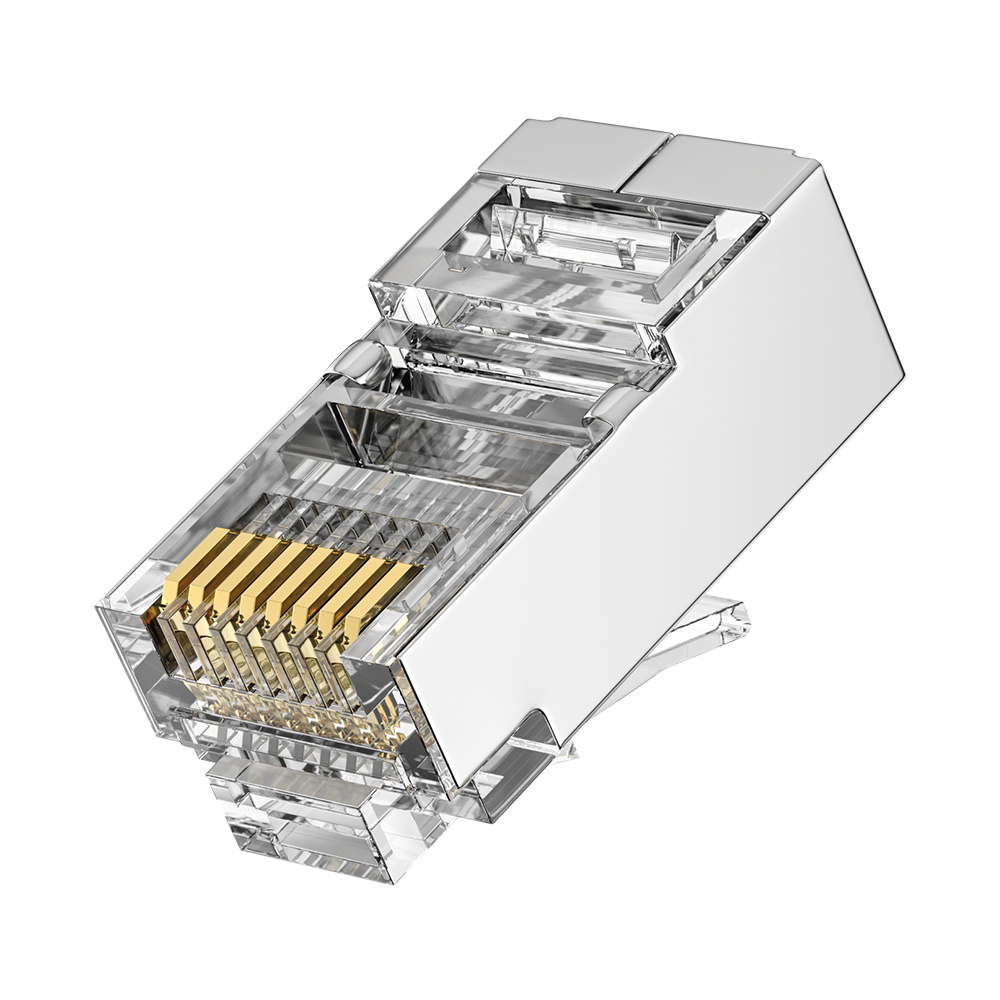

CAT5E RJ45 8P8C FTP Shielded Modular Plug 1.0mm Copper Housing 1U Gold Plated
CAT5E RJ45 8P8C FTP shielded modular plug with copper nickel-plated housing for enhanced EMI protection. Features 1.0mm core hole, 1U gold plated contacts, and supports 0.75–1.0mm conductors for stable high-performance Ethernet connections.
| Item | Specification |
|---|---|
| Product Name | CAT5E RJ45 8P8C FTP Shielded Modular Plug |
| Model | DT-1001P |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT5E |
| Shielding Type | FTP (Foiled Twisted Pair) |
| Housing Structure | PC + Copper Nickel-Plated Shield Shell |
| Wire Core Hole | 1.0mm |
| Supported Conductor Diameter | 0.75–1.0mm |
| Supported Cable Type | 22–24AWG Solid or Stranded Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 1U Gold Plated |
| Flame Rating | UL94-V2 |
| Electrical Rating | 250V AC, Max 2A |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (1000V DC / 1 min) |
| Dielectric Strength | 1000V DC / 1 min |
| Pull Test | ≥89N (20 lbs for 1 min) |
| Durability | ≥2000 mating cycles |
| IP Rating | IP20 |
| Operating Temperature | -40℃ ~ +125℃ |
| Certifications | UL / CE / RoHS / SGS / CSA / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview

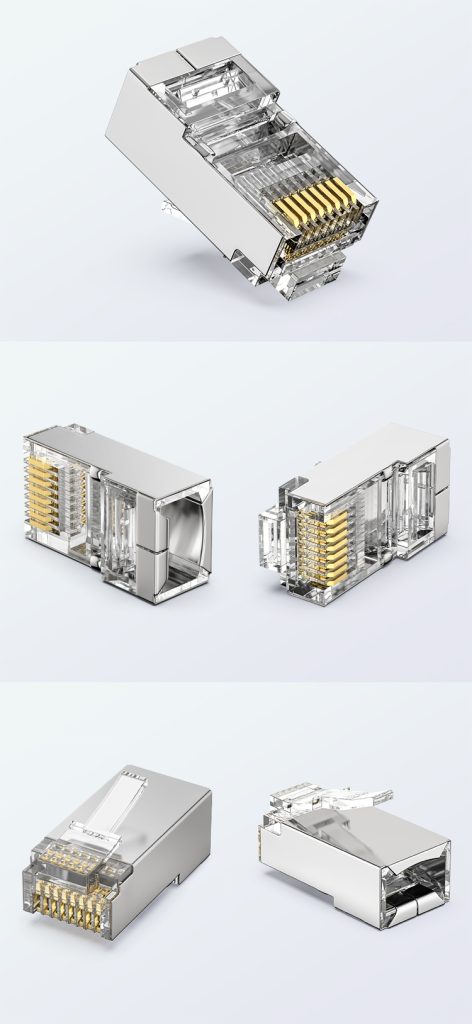

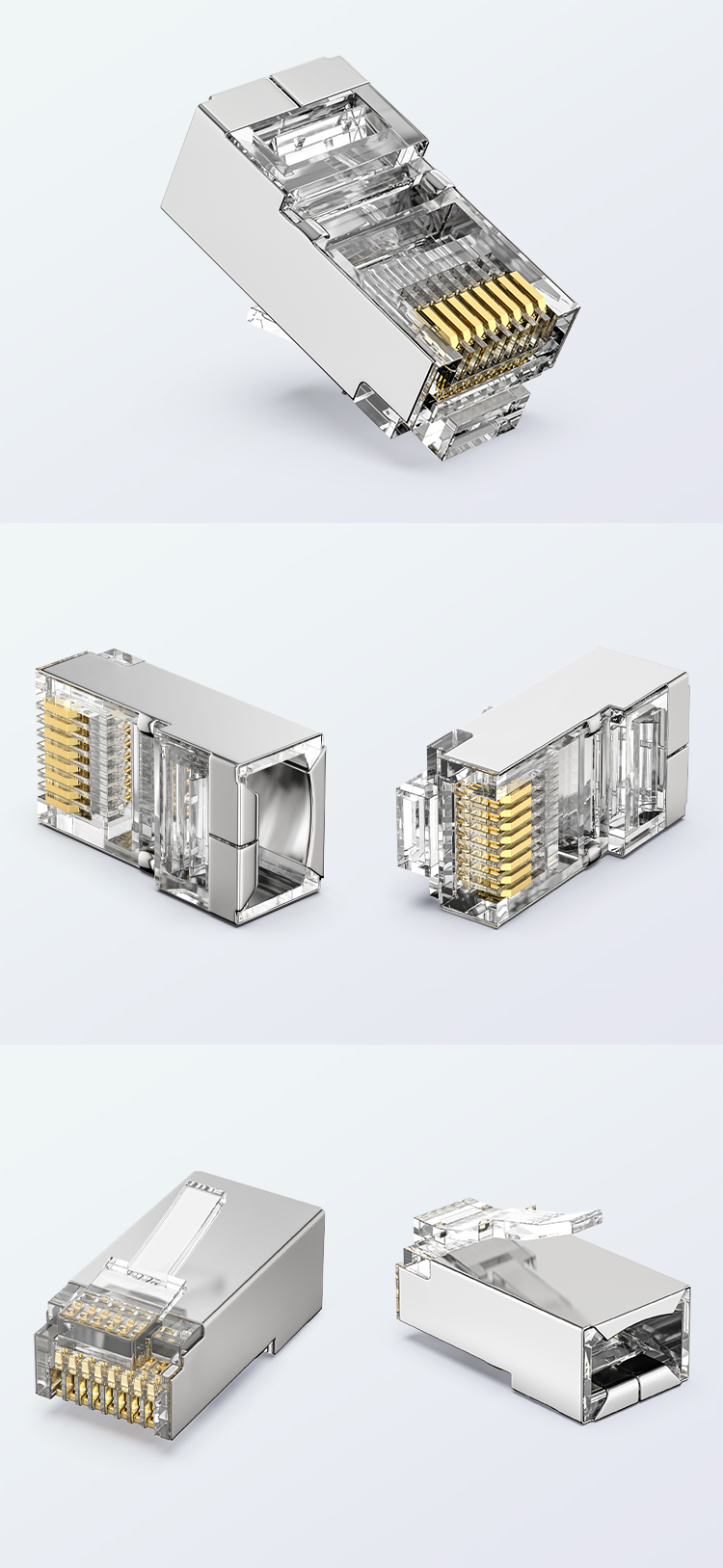

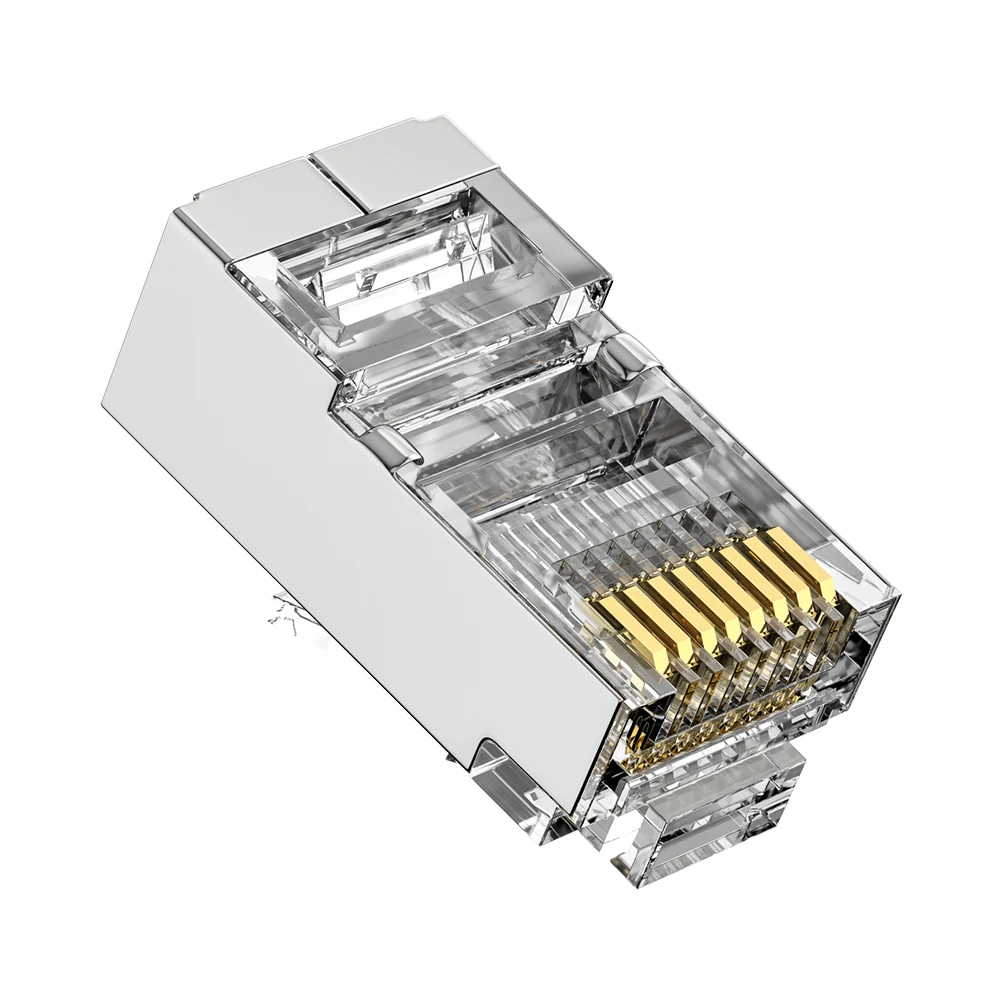

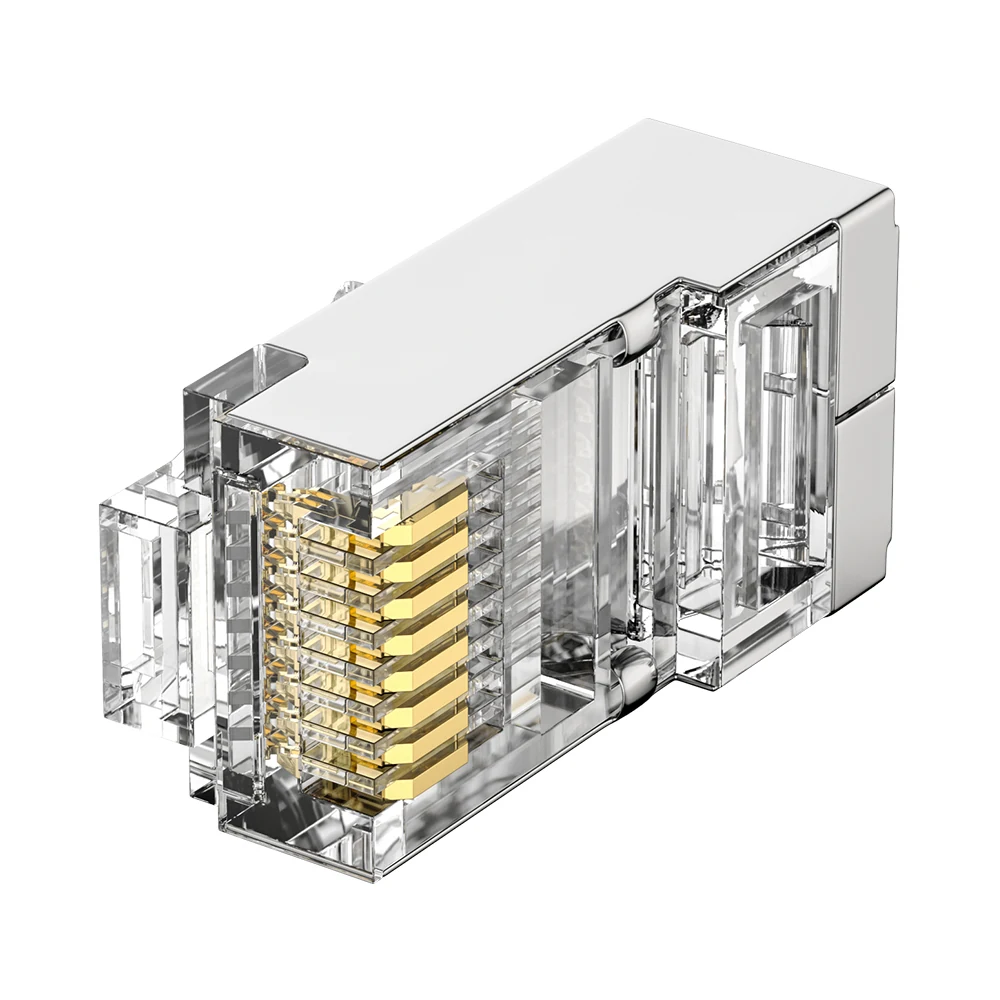

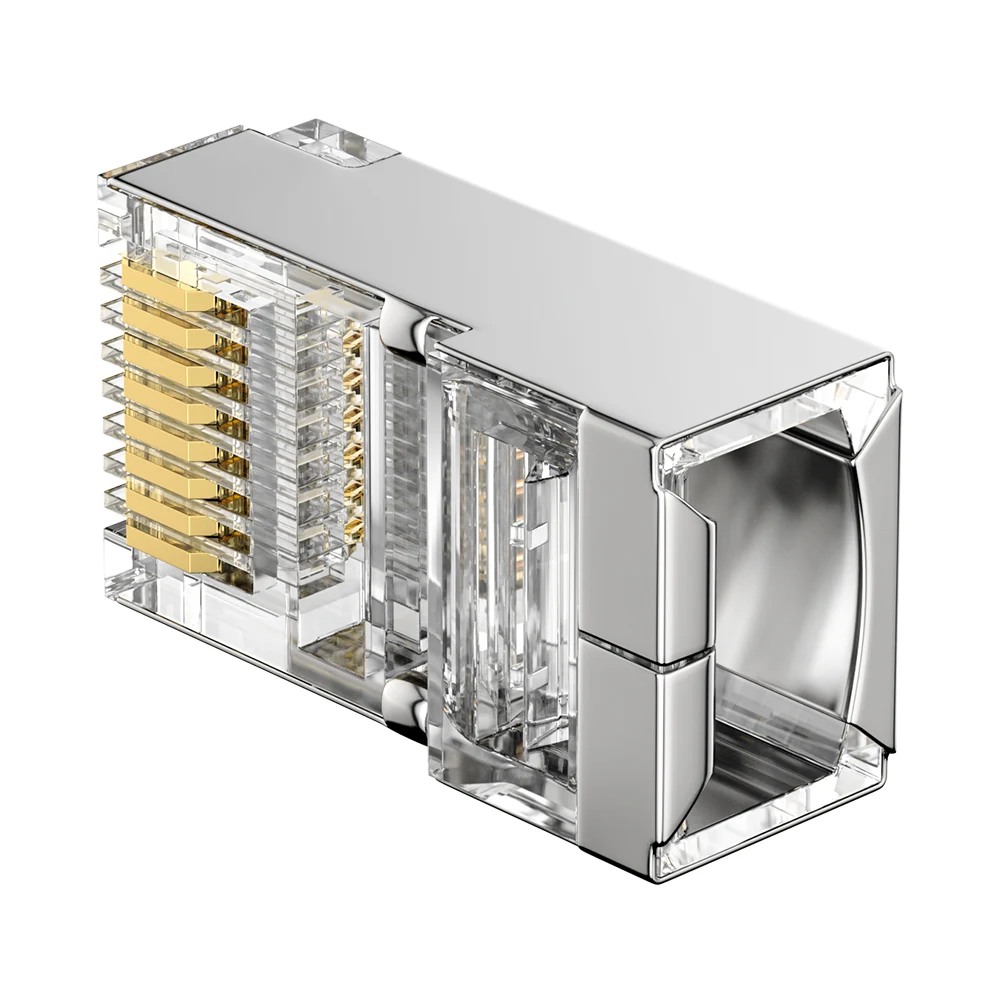

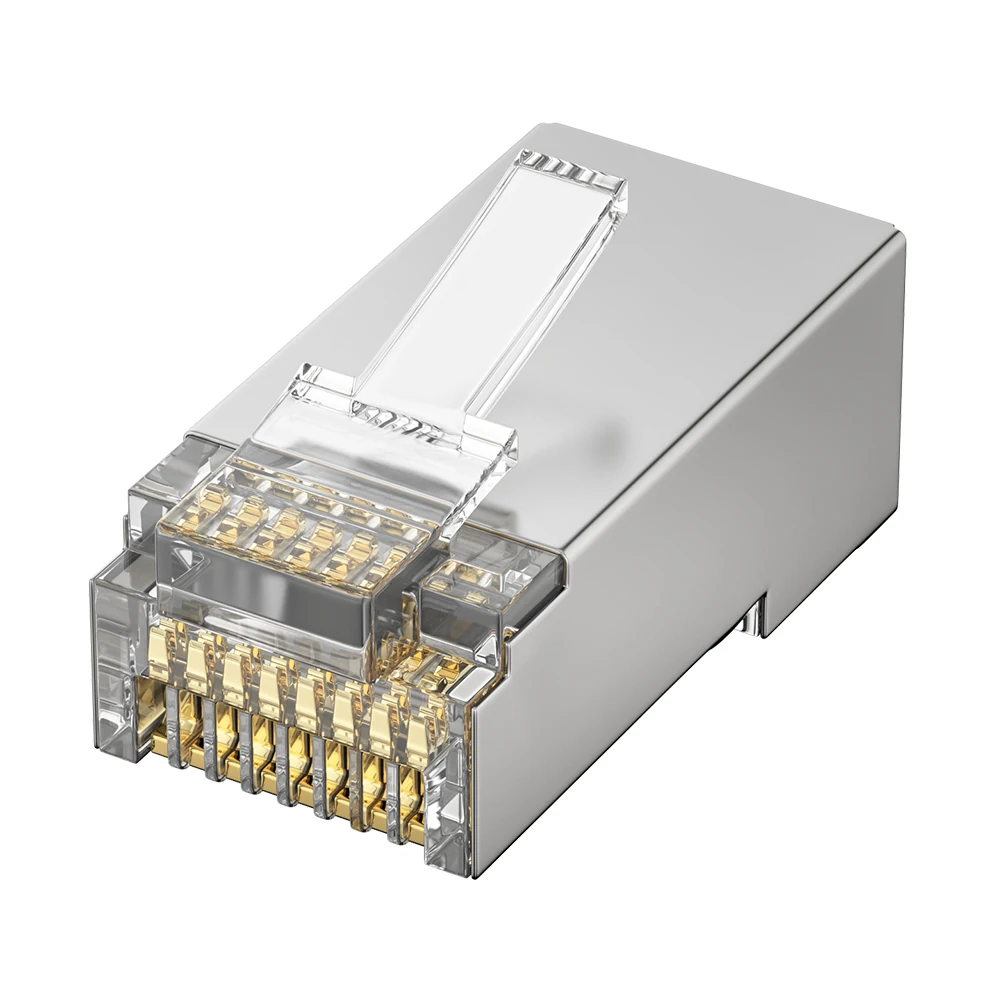

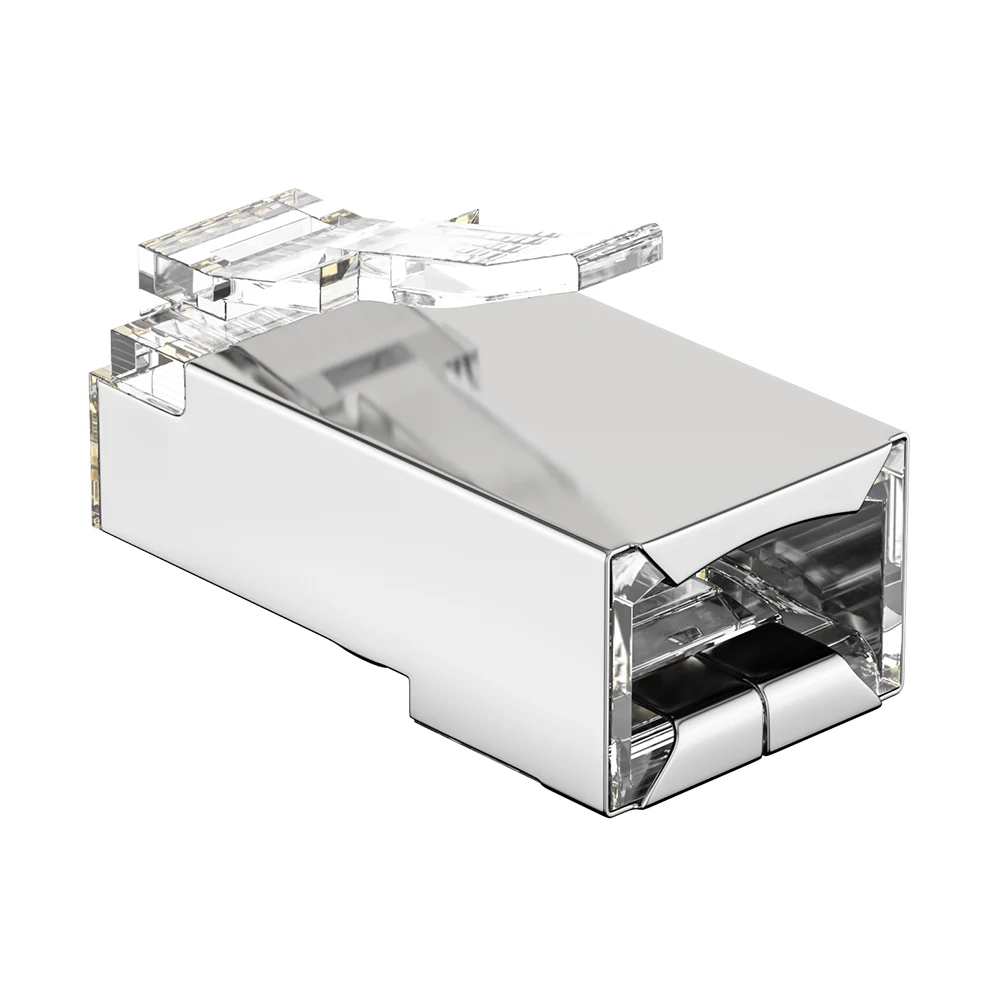

This CAT5E RJ45 8P8C FTP shielded modular plug is designed with a copper nickel-plated shielding shell to enhance EMI protection and transmission stability. It supports 1.0mm core wiring and 0.75–1.0mm conductors, ensuring reliable termination for structured cabling systems.
Key Features
- CAT5E RJ45 8P8C FTP shielded design
- Copper + nickel-plated shielding housing for EMI protection
- 1.0mm core hole for precise wire fitting
- 1U gold plated contacts for stable conductivity
- Supports 22–24AWG Ethernet cables
- High durability up to 2000 mating cycles
- Wide operating temperature range: -40℃ to +125℃
- High mechanical strength: ≥89N pull test
- IP20 protection rating for indoor use
- Compliant with UL, CE, RoHS, SGS, CSA, ISO9001
Applications
- Structured cabling systems
- Data communication networks
- Enterprise LAN installations
- Industrial Ethernet environments
- Telecom infrastructure projects
OEM & ODM Service
Detwiler Tech provides OEM/ODM customization including logo printing, packaging design, and bulk manufacturing solutions for global distributors and structured cabling projects.
#CAT5E #RJ45Connector #FTPConnector #ShieldedPlug #8P8C #NetworkConnector #EthernetPlug #StructuredCabling #DetwilerTech #OEM #ODM
| SKU Variants | DT-1001P |
