RJ45 Modular Plug

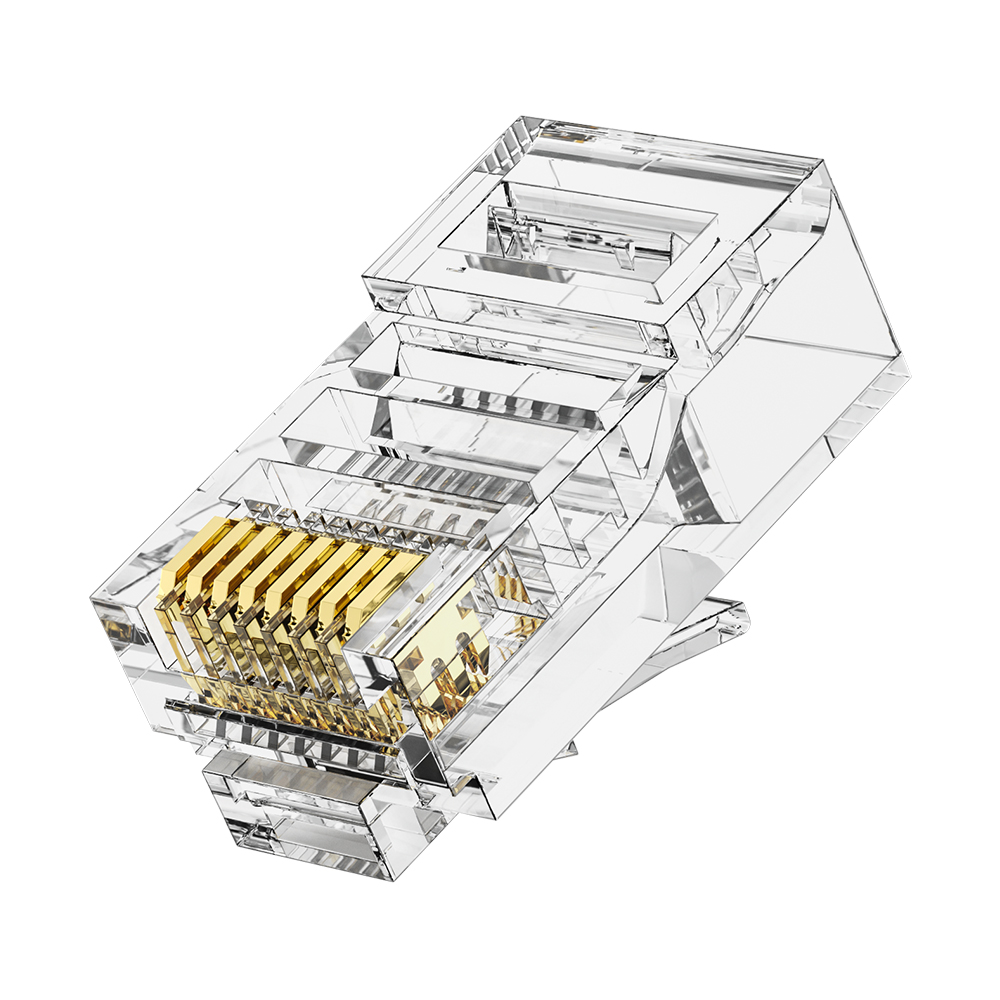

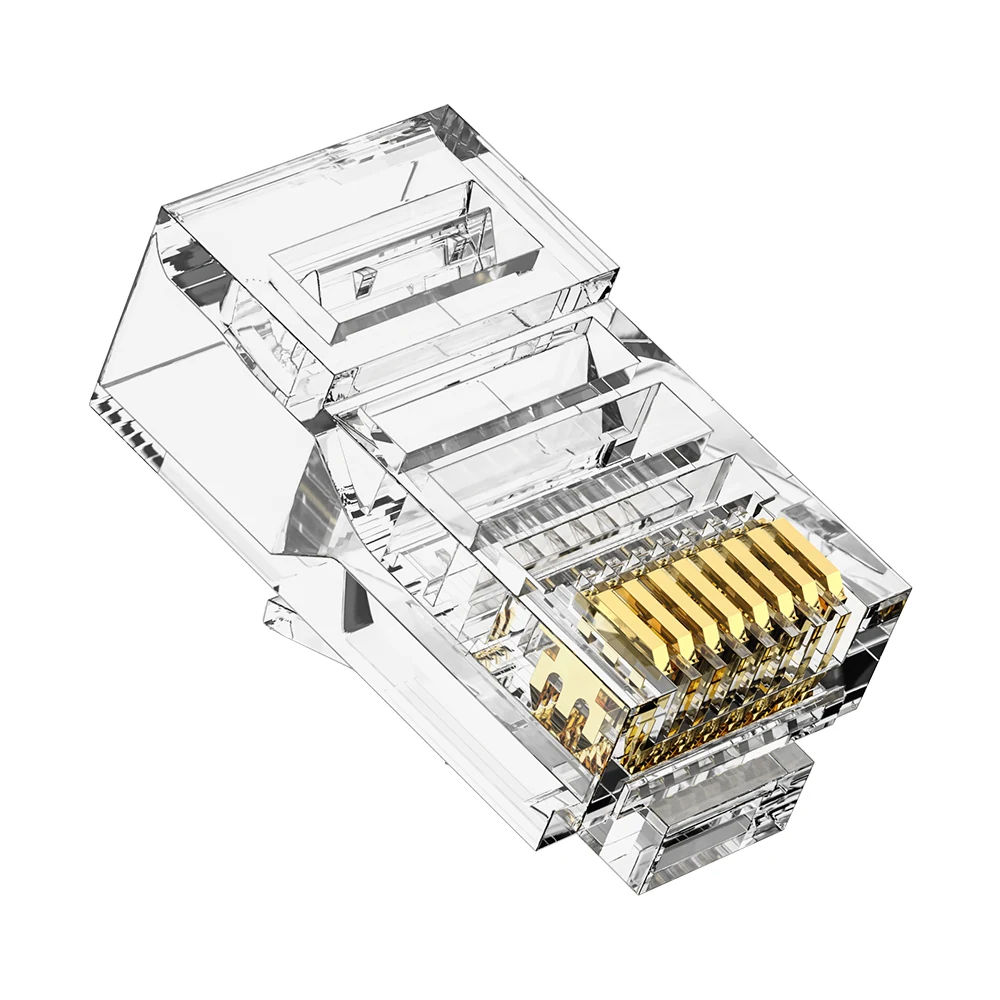

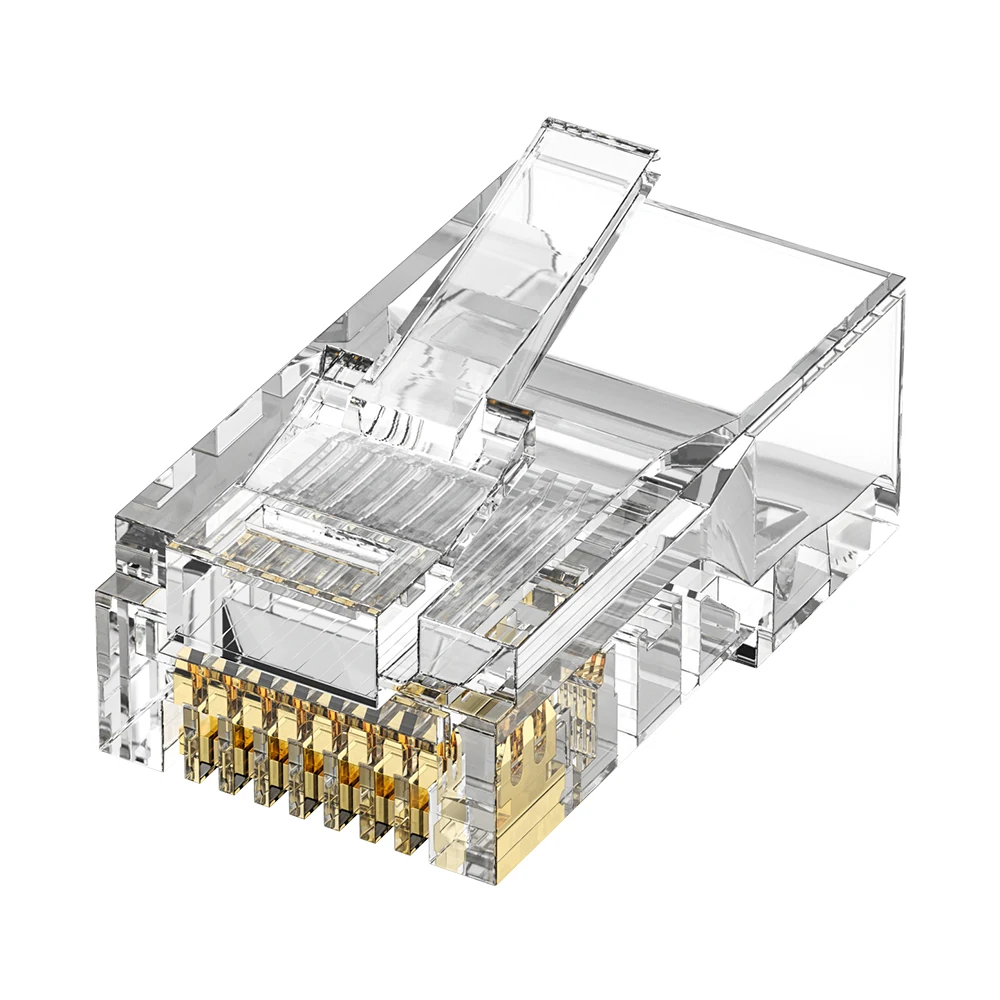

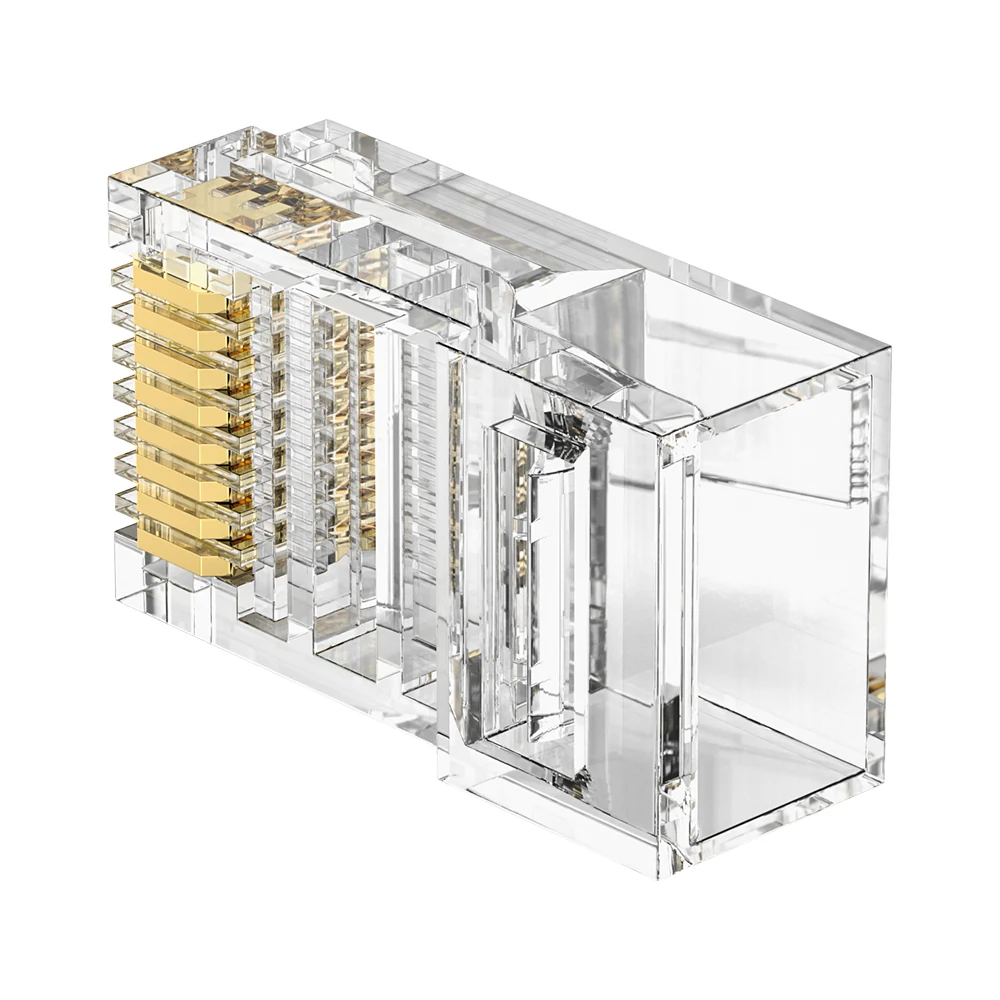

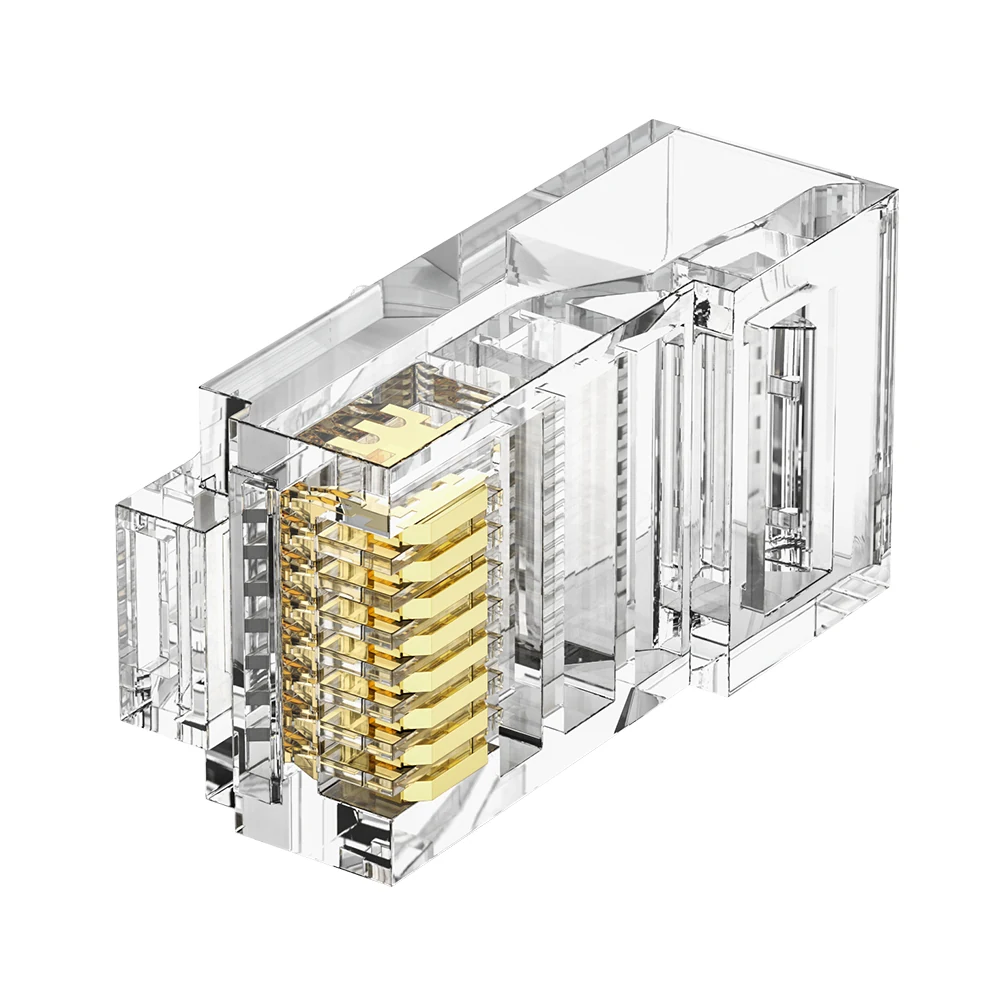

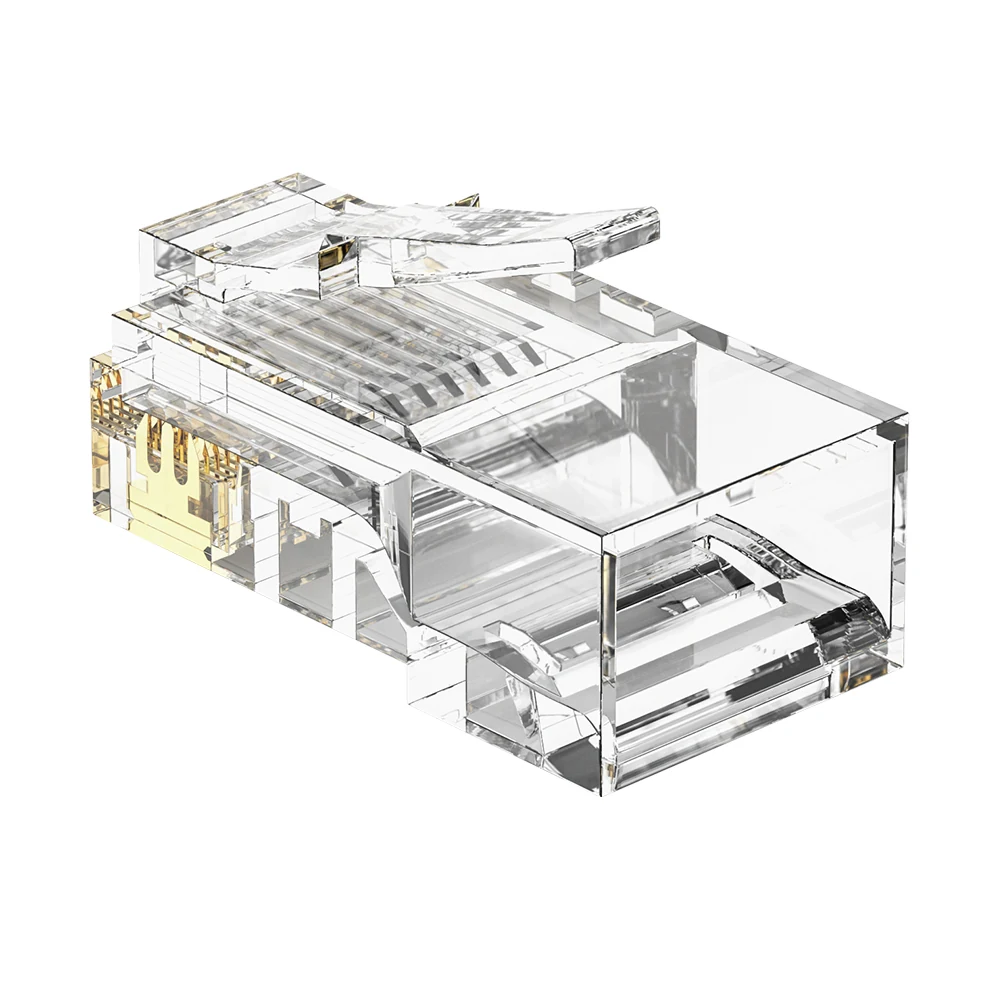

CAT5E RJ45 8P8C UTP Modular Plug Square Entry 1.0mm 1U Gold Plated for 24AWG Cable
CAT5E RJ45 8P8C UTP modular plug with square cable entry design, compatible with 1.0mm core and 0.75–1.0mm conductor diameter. Features 1U gold plated contacts and supports CAT5E 24AWG Ethernet cables for stable and reliable network connections.
SKU Variants
DT-102M2
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT5E RJ45 8P8C UTP Modular Plug |
| Model | DT-102M2 |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT5E |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Structure | Square Cable Entry Design |
| Cable Entry Type | Square Inlet |
| Wire Core Hole | 1.0mm |
| Supported Conductor Diameter | 0.75–1.0mm |
| Supported Cable Type | CAT5E 24AWG Ethernet Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC (Polycarbonate) |
| Flame Rating | UL94-V2 |
| Electrical Rating | 250V AC, Max 2A |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (1000V DC / 1 min) |
| Dielectric Strength | 1000V DC / 1 min |
| Pull Test | ≥89N (20 lbs for 1 min) |
| Durability | ≥2000 mating cycles |
| IP Rating | IP20 |
| Operating Temperature | -40℃ ~ +125℃ |
| Certifications | UL / CE / RoHS / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
This CAT5E RJ45 8P8C UTP modular plug features a square entry design, optimized for stable cable insertion and compatibility with snap-in strain relief boots. Designed for 24AWG CAT5E Ethernet cables, it ensures reliable network performance in structured cabling systems.
Key Features
- CAT5E RJ45 8P8C UTP connector design
- Square cable entry for improved installation stability
- 1.0mm core hole for precise conductor fitting
- 1U gold plated contacts for stable signal transmission
- Supports CAT5E 24AWG Ethernet cables
- High durability up to 2000 mating cycles
- Wide operating temperature range: -40℃ to +125℃
- High mechanical strength: ≥89N pull test
- IP20 protection rating for indoor use
- Complies with UL, CE, RoHS, ISO9001 standards
Applications
- Office network cabling systems
- Residential Ethernet wiring
- Structured cabling installations
- Telecom and LAN connections
- Low-voltage data transmission systems
OEM & ODM Service
Detwiler Tech provides full OEM/ODM customization including logo printing, packaging design, and bulk manufacturing solutions for global distributors and network infrastructure projects.

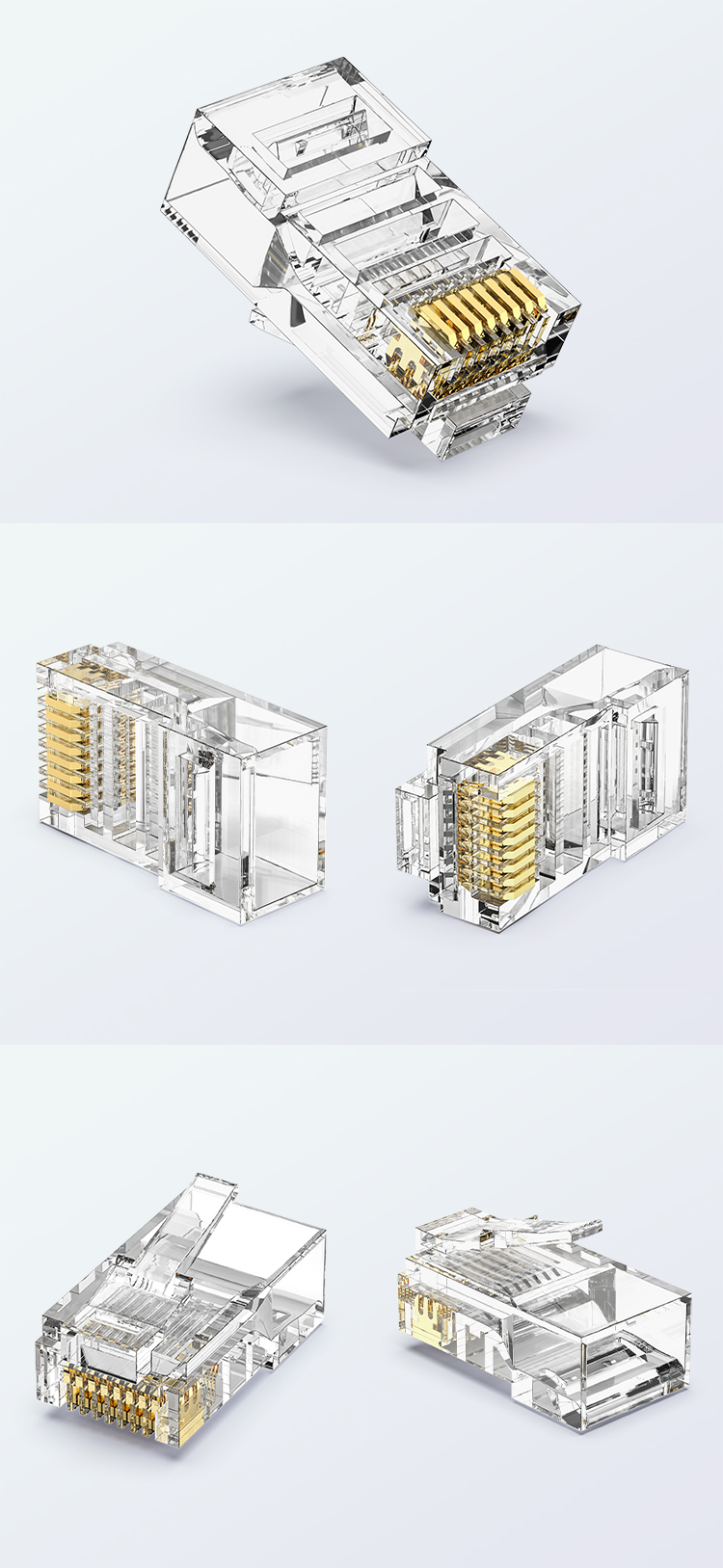

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
RFQ / SAMPLE REQUEST
Tell Us What the Application Requires
Share the target specification, quantity, cable construction and OEM/ODM requirements. Our team will review the critical interfaces before quotation.
- Product and cable compatibility review
- Sample, lead-time and packaging discussion
- Clear follow-up for export projects
