RJ45 Modular Plug

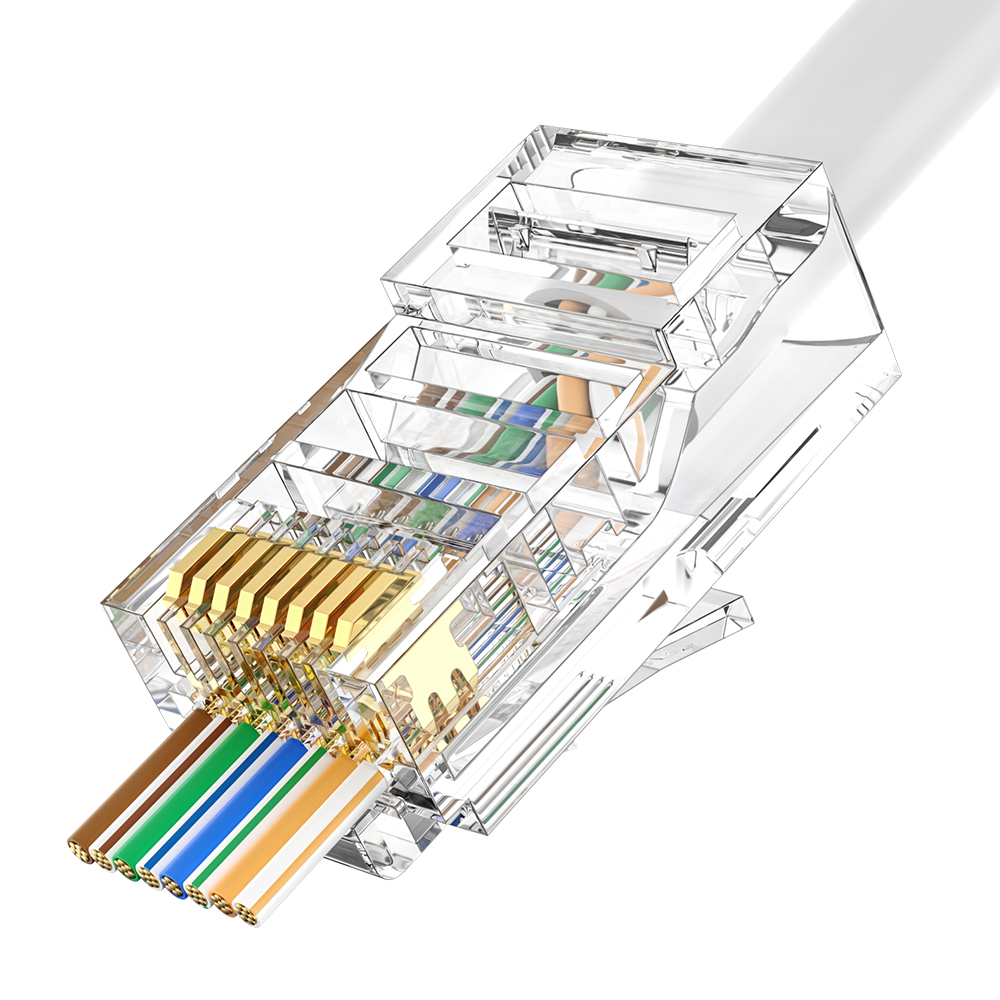

CAT5E RJ45 8P8C UTP Pass-Through Modular Plug 1.0mm Easy Termination 1U Gold Plated
CAT5E RJ45 8P8C UTP pass-through modular plug with front piercing design for fast and easy termination. Features 1.0mm core hole, 1U gold plated contacts, and supports 0.75–1.0mm conductors for reliable Ethernet connectivity.
SKU Variants
DT-104M1
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT5E RJ45 8P8C UTP Pass-Through Modular Plug |
| Model | DT-104M1 |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT5E |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Structure | Pass-Through / Front Piercing Design |
| Wire Core Hole | 1.0mm |
| Supported Conductor Diameter | 0.75–1.0mm |
| Supported Cable Type | 22–24AWG Solid or Stranded Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC (Polycarbonate) |
| Flame Rating | UL94-V2 |
| Electrical Rating | 125V AC 1.5A @ 25℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (100V DC / 1 min) |
| Dielectric Strength | 1000V AC / 1 min |
| Pull Test | ≤30N |
| Durability | ≥750 mating cycles |
| IP Rating | IP20 |
| Operating Temperature | -40℃ ~ +85℃ |
| Certifications | UL / CSA / CE / SGS / RoHS / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing |
Detwiler Tech / OEM / ODM |
Product Description
Product Overview
This CAT5E RJ45 8P8C UTP pass-through modular plug features a front piercing structure designed to simplify cable termination and improve installation efficiency. It supports 0.75–1.0mm conductors and 22–24AWG Ethernet cables, ensuring stable and reliable network performance.
Key Features
- CAT5E RJ45 8P8C UTP pass-through design
- Front piercing structure for fast installation
- 1.0mm core hole for precise wire compatibility
- 1U gold plated contacts for stable signal transmission
- Supports 22–24AWG Ethernet cables
- High durability up to 750 mating cycles
- IP20 protection rating for indoor use
- Operating temperature range: -40℃ to +85℃
- Compliant with UL, CSA, CE, SGS, RoHS, ISO9001
Applications
- Fast network cable termination
- Office and home Ethernet wiring
- Structured cabling systems
- Data communication installations
- Telecom and IT infrastructure
OEM & ODM Service
Detwiler Tech provides OEM/ODM customization including logo printing, packaging design, and bulk manufacturing solutions for global distributors and structured cabling projects.
Buyer specification guide
Qualify a Cat5e pass-through RJ45 plug as a termination set

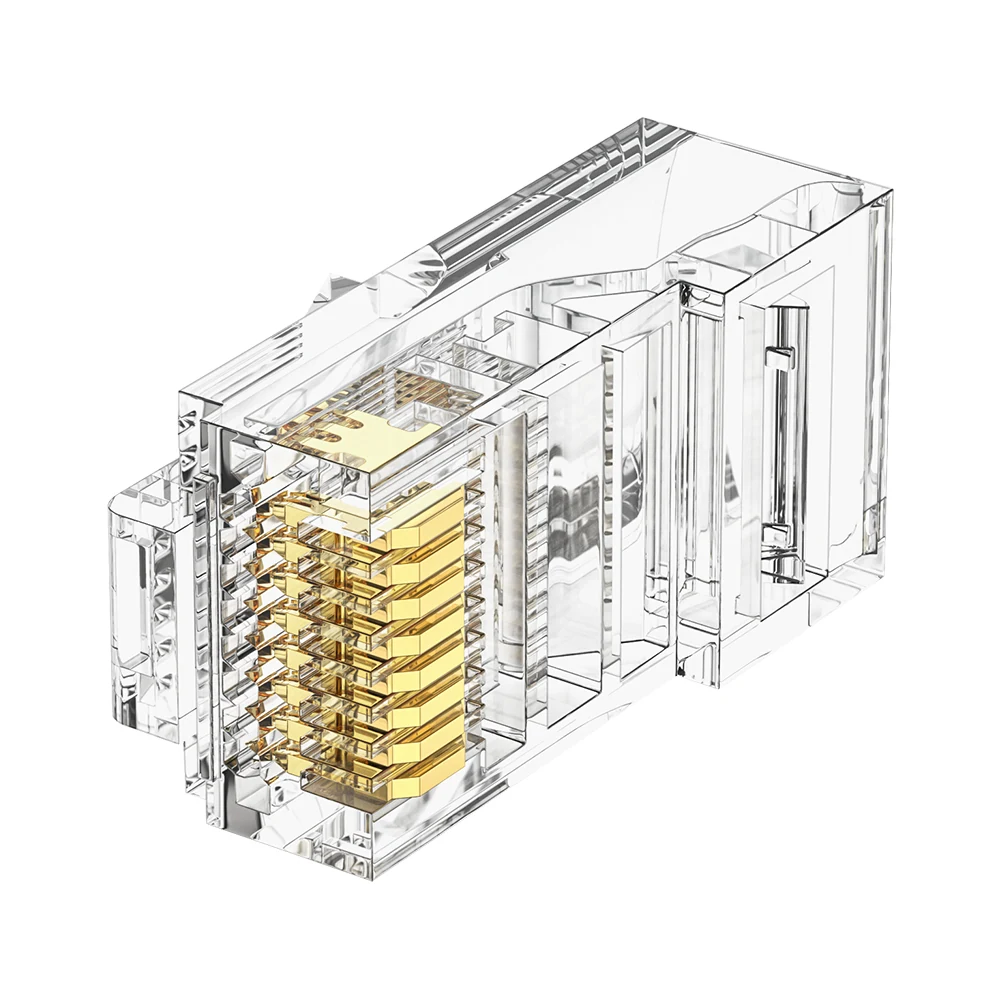

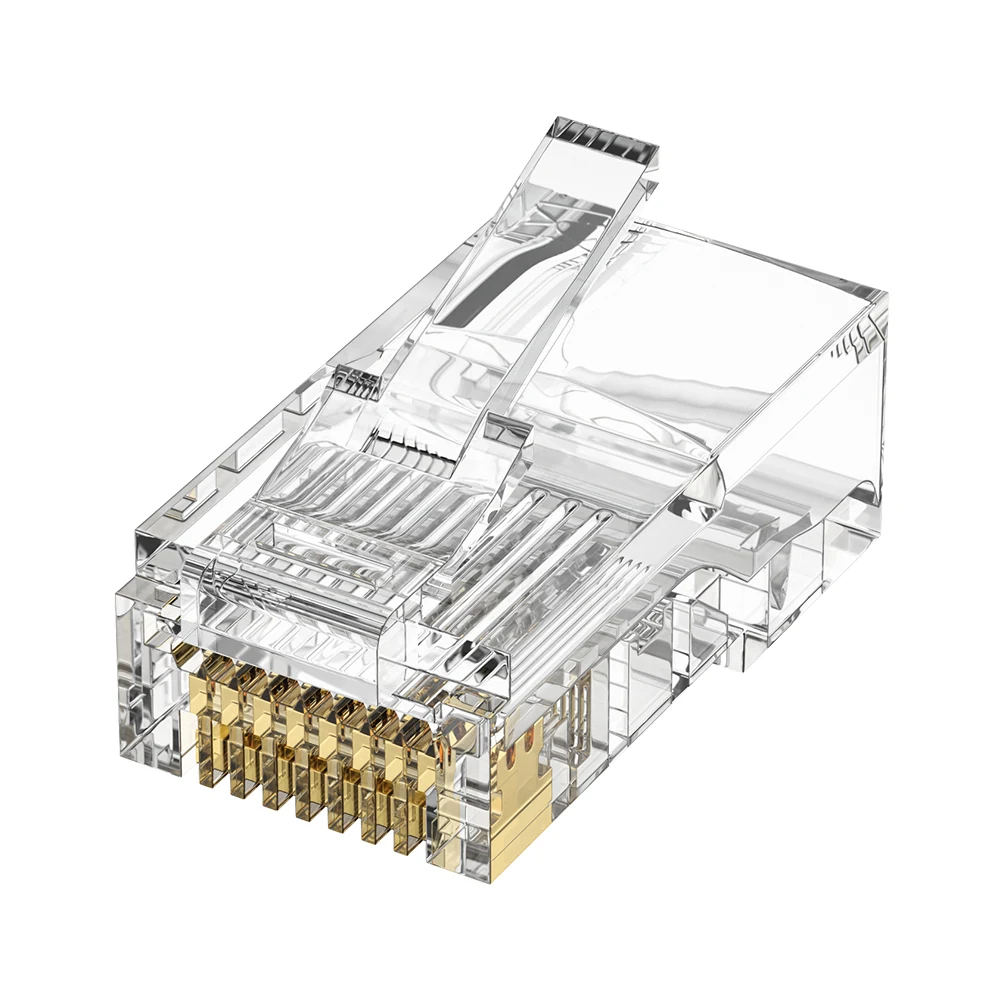

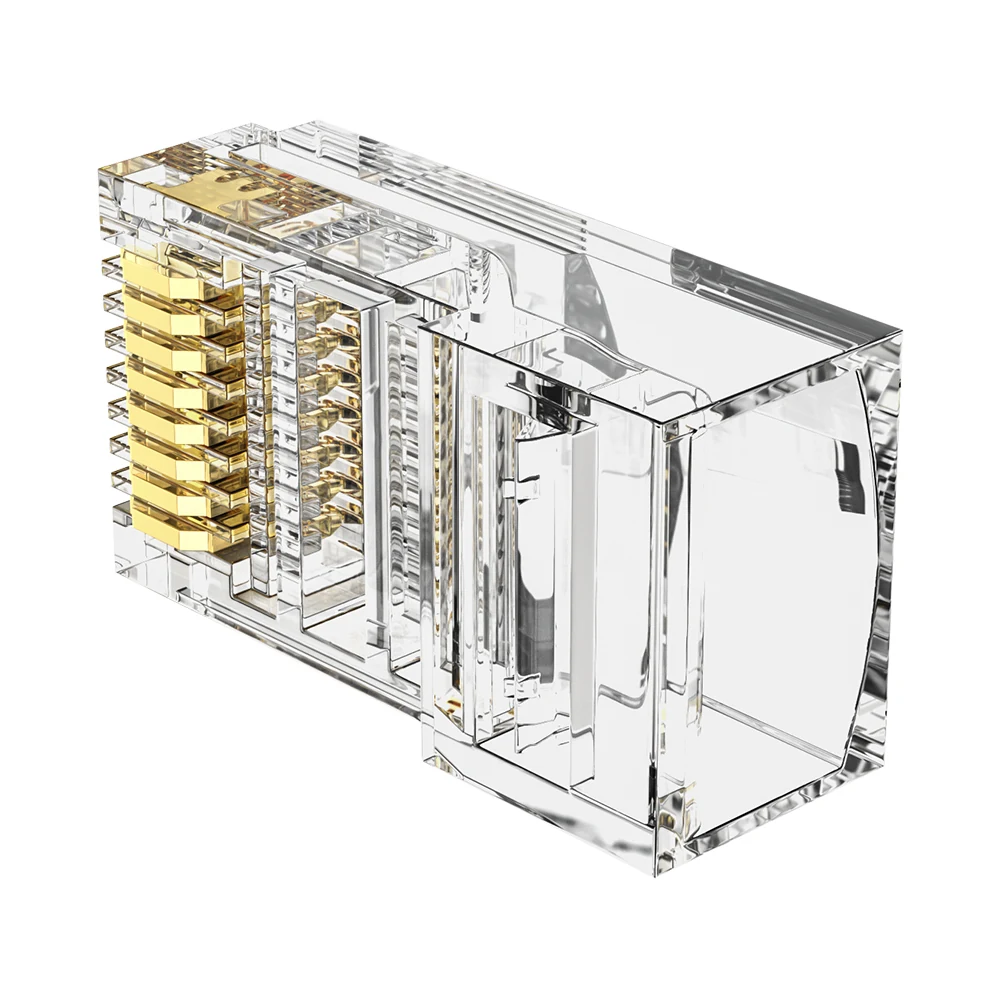

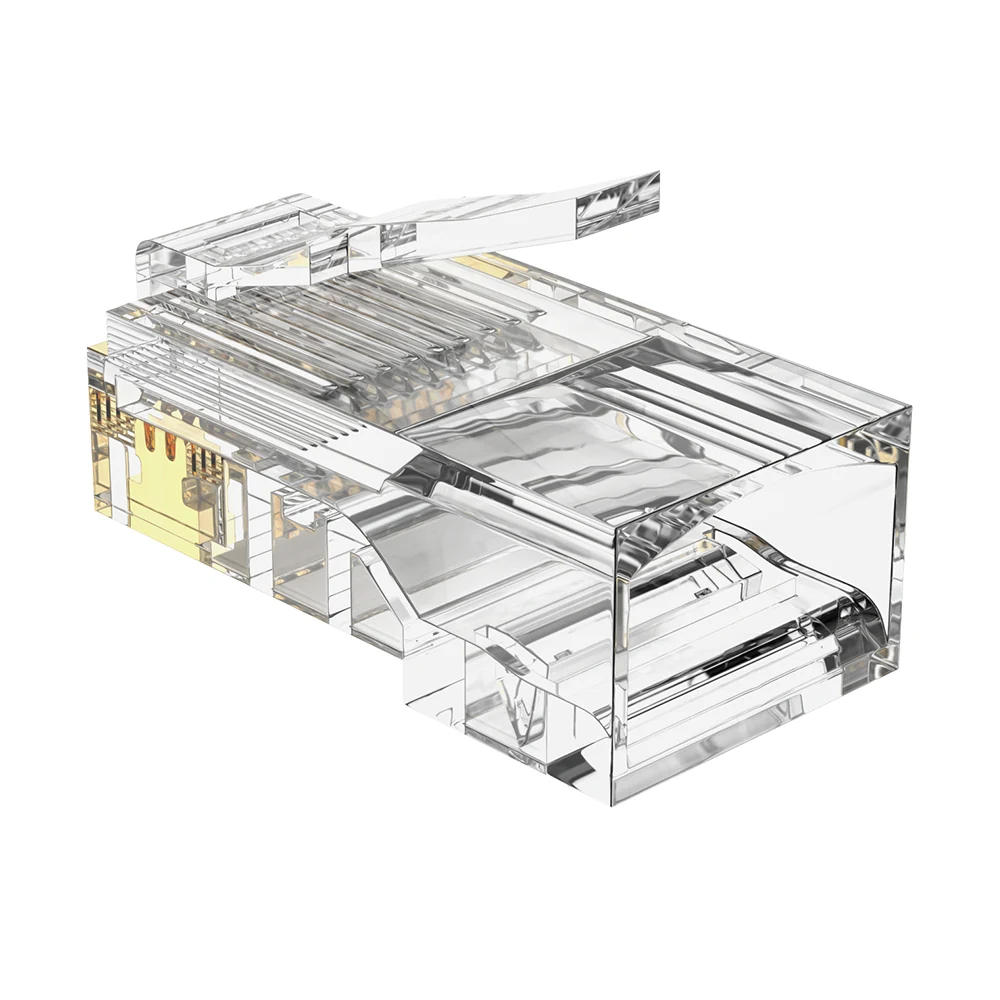

The front-piercing pass-through layout supports faster conductor alignment, while the 1.0 mm core holes and trimming process still need to be matched to the cable and crimping tool.
Information to confirm before quotation
- 0.75–1.0 mm insulated-conductor fit and cable construction
- Conductor sequence, pass-through cut-off and crimp-die compatibility
- 1U contact specification, samples, quantity, marking and packaging
Frequently asked questions
Why should the conductor diameter be checked for this Cat5e plug?
The insulated conductors must pass through and seat correctly in the 1.0 mm core-hole layout. Provide measured conductor dimensions or a cable sample.
Can a standard RJ45 crimper terminate a pass-through plug?
Only if its die fits the plug and it has the correct conductor trimming arrangement. Approve the intended tool with the plug and cable.

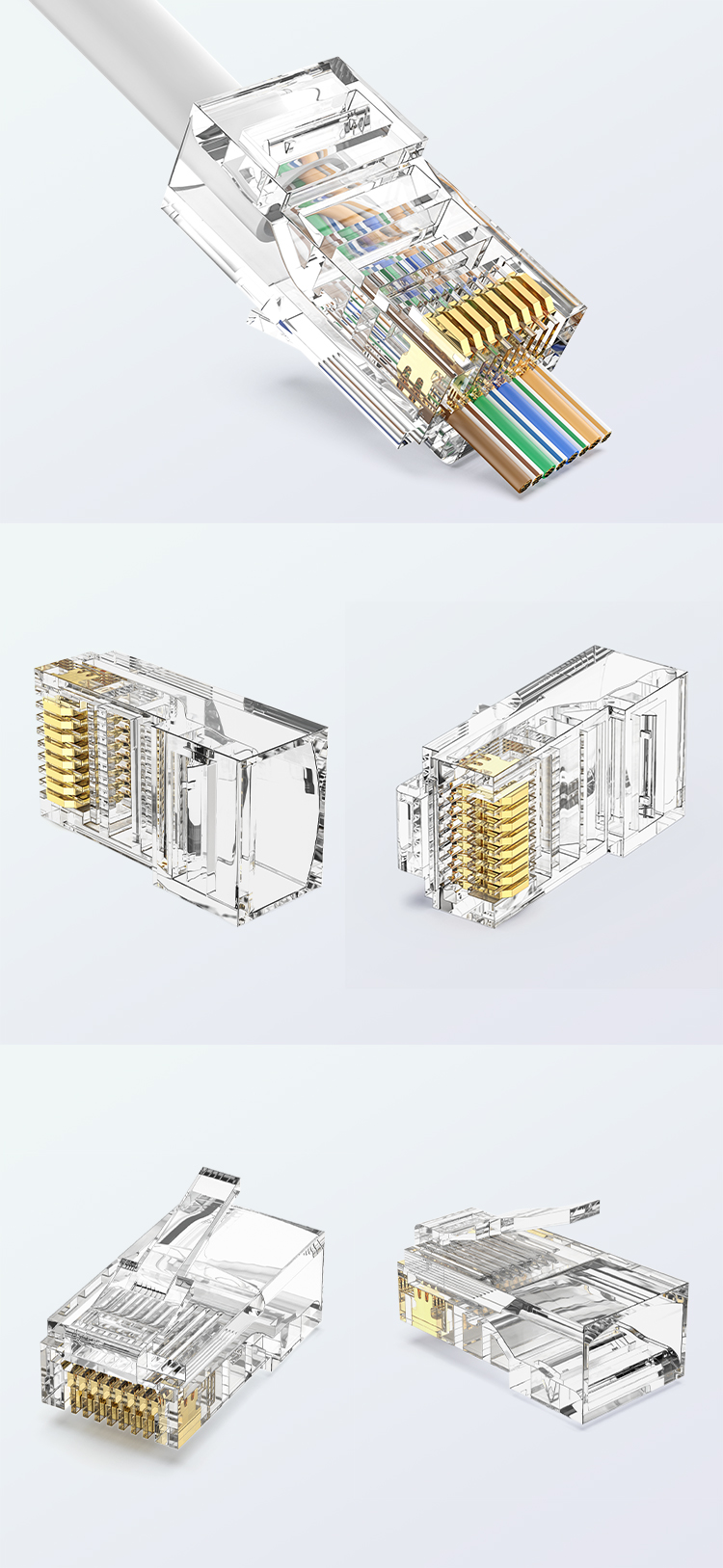

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
RFQ / SAMPLE REQUEST
Tell Us What the Application Requires
Share the target specification, quantity, cable construction and OEM/ODM requirements. Our team will review the critical interfaces before quotation.
- Product and cable compatibility review
- Sample, lead-time and packaging discussion
- Clear follow-up for export projects
