Specification Review
Align category, shielding, cable fit, contact plating and application requirements.
RJ45 Modular Plug

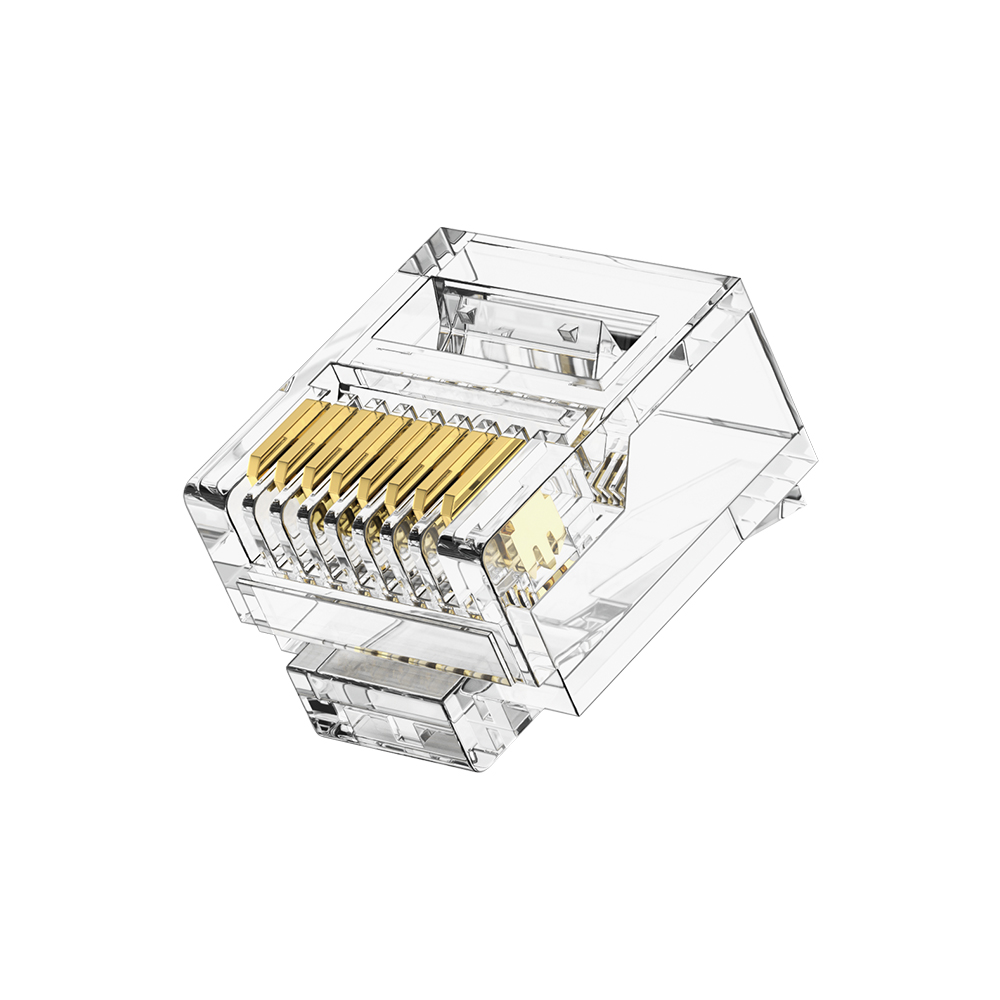

CAT5E RJ45 8P8C UTP Slim Short Body Modular Plug for Flat Ethernet Cable 1.0mm 1U Gold
CAT5E RJ45 8P8C UTP slim short body modular plug designed for flat Ethernet cables. Features 1.0mm core hole, 1U gold plated contacts, and supports 0.75–1.0mm conductors for stable CAT5E network termination in compact installations.
SKU Variants
DT-102S1-2AB
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT5E RJ45 8P8C UTP Slim Short Body Modular Plug |
| Model | DT-102S1-2AB |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT5E |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Structure | Slim Short Body Design |
| Cable Type | Flat Ethernet Cable |
| Wire Core Hole | 1.0mm |
| Supported Conductor Diameter | 0.75–1.0mm |
| Supported Cable Type | CAT5E Flat Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC (Polycarbonate) |
| Flame Rating | UL94-V2 |
| Electrical Rating | 250V AC, Max 2A |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (1000V DC / 1 min) |
| Dielectric Strength | 1000V DC / 1 min |
| Pull Test | ≥89N (20 lbs for 1 min) |
| Durability | ≥2000 mating cycles |
| IP Rating | IP20 |
| Operating Temperature | -40℃ ~ +125℃ |
| Certifications | UL / CE / RoHS / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
This CAT5E RJ45 8P8C UTP slim short body modular plug is specifically designed for flat Ethernet cables, offering a compact structure ideal for space-limited installations. It ensures stable signal transmission with 1.0mm precision core compatibility and 1U gold plated contacts.
Key Features
- CAT5E RJ45 8P8C UTP connector
- Slim short body design for compact installation
- Optimized for flat Ethernet cables
- 1.0mm core hole for precise wire fit
- 1U gold plated contacts for stable conductivity
- Supports 0.75–1.0mm conductor range
- High durability up to 2000 mating cycles
- Wide operating temperature: -40℃ to +125℃
- IP20 protection for indoor applications
- Compliant with UL, CE, RoHS, ISO9001
Applications
- Flat Ethernet cable installations
- Home networking systems
- Office structured cabling
- Space-saving network setups
- Low-profile LAN connections
OEM & ODM Service
Detwiler Tech provides OEM/ODM customization including logo printing, packaging solutions, and bulk manufacturing for global distributors and network infrastructure projects.
Buyer specification guide
Specify a Cat5e slim RJ45 plug for flat cable
A Cat5e slim RJ45 plug should be matched to the flat cable before a sample is approved. Confirm the cable shape, conductor construction, insulation diameter and termination tooling instead of relying on the category label alone.
Information to confirm before quotation
- Flat-cable width and thickness, conductor type and insulation diameter
- Required 1.0 mm core-hole fit and contact-plating specification
- Sample quantity, packaging, marking and intended crimping tool
Frequently asked questions
Which cable details are needed before approving this slim RJ45 plug?
Send the flat-cable drawing or measured width and thickness, conductor construction, insulation diameter and the intended crimping tool. A cable sample is useful for termination approval.
Can a Cat5e plug be selected by category alone?
No. The category is the performance target, while the plug body, core holes and contacts still need to match the physical cable construction.

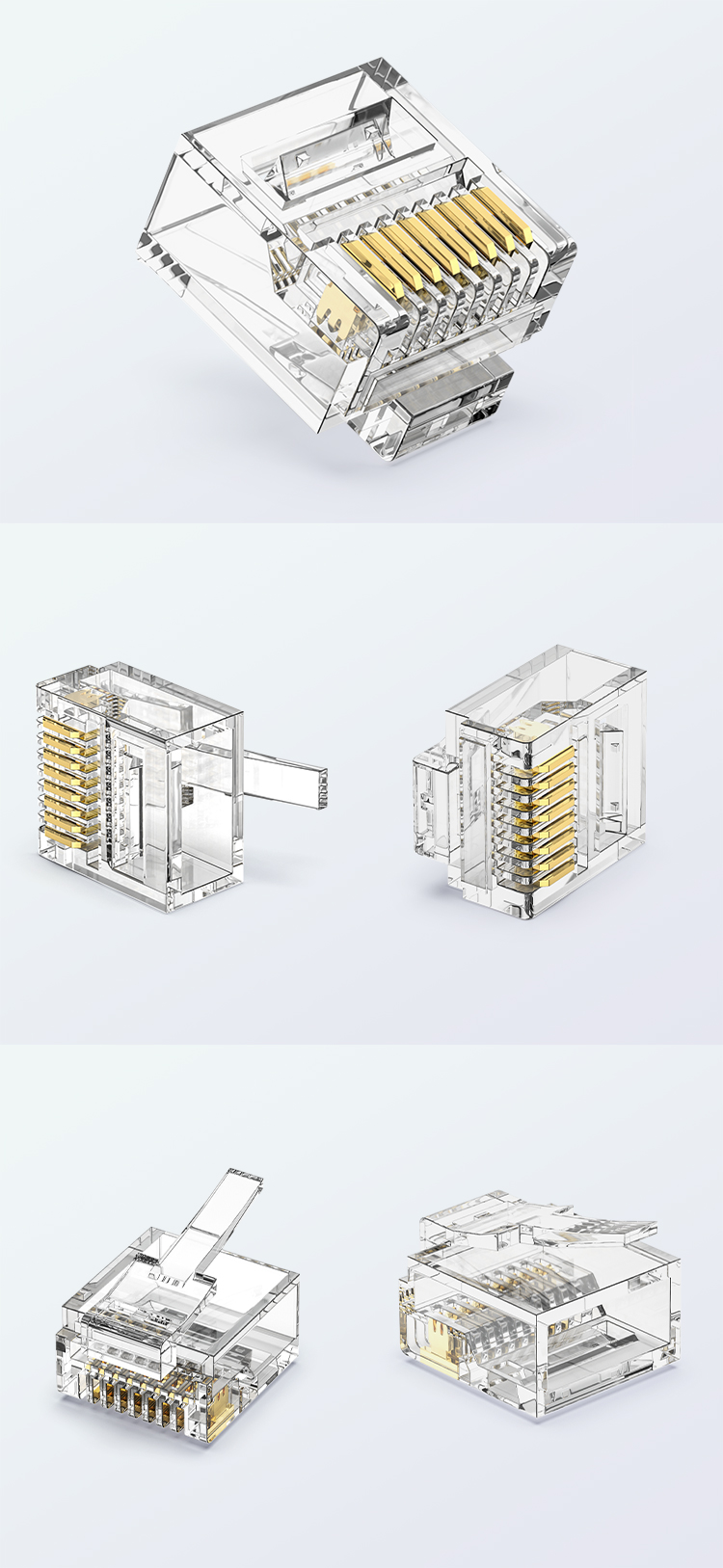

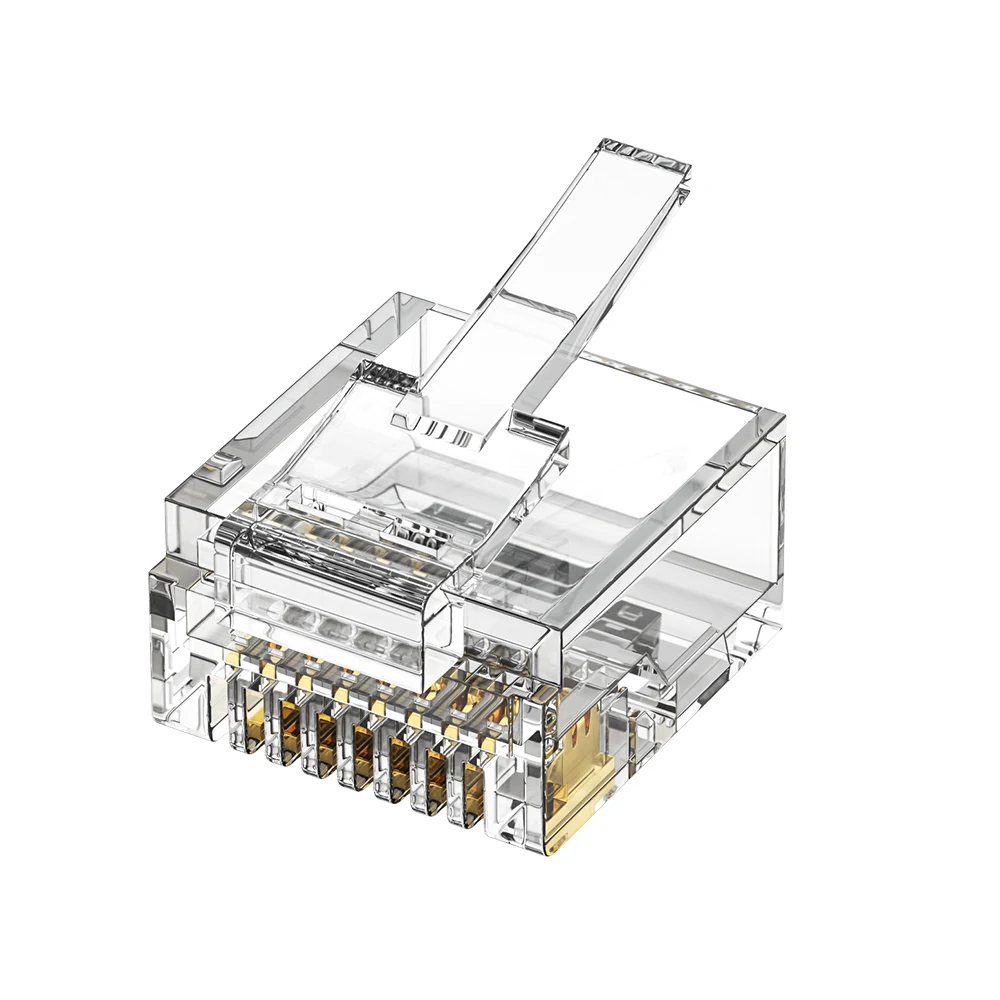

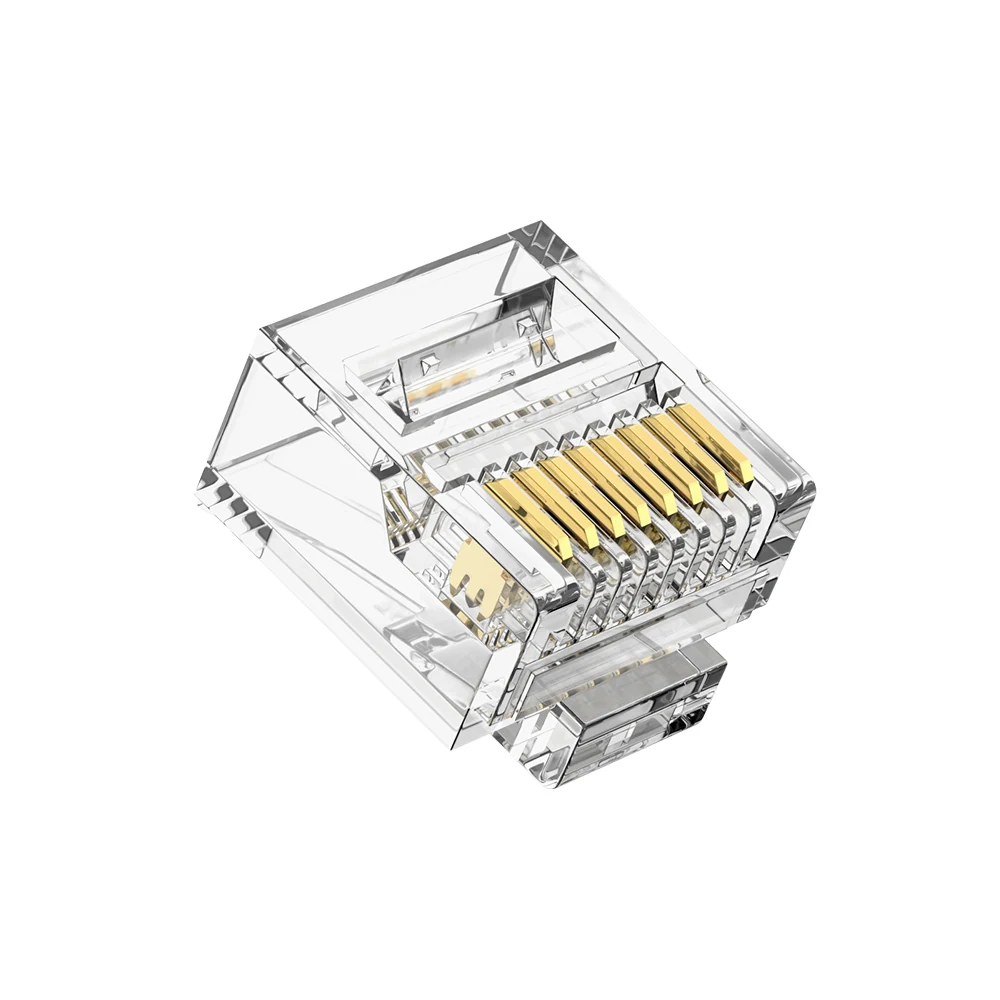

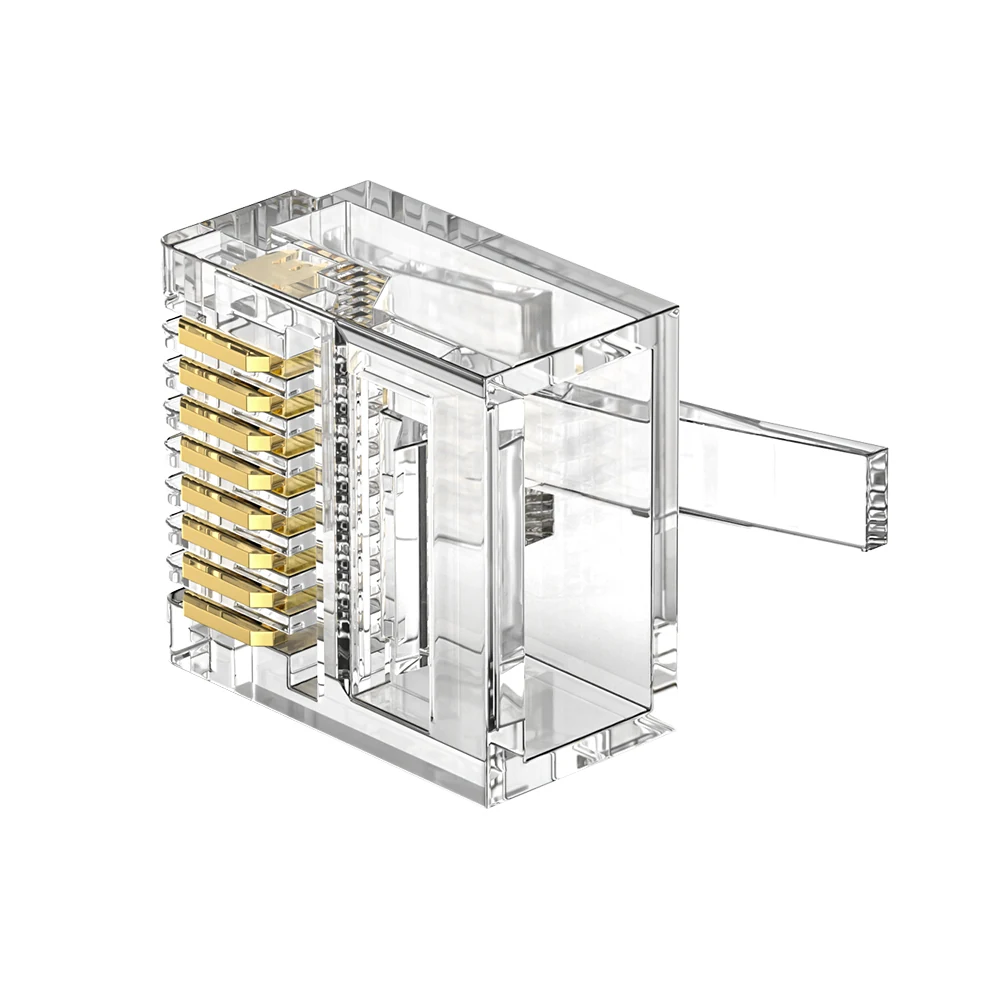

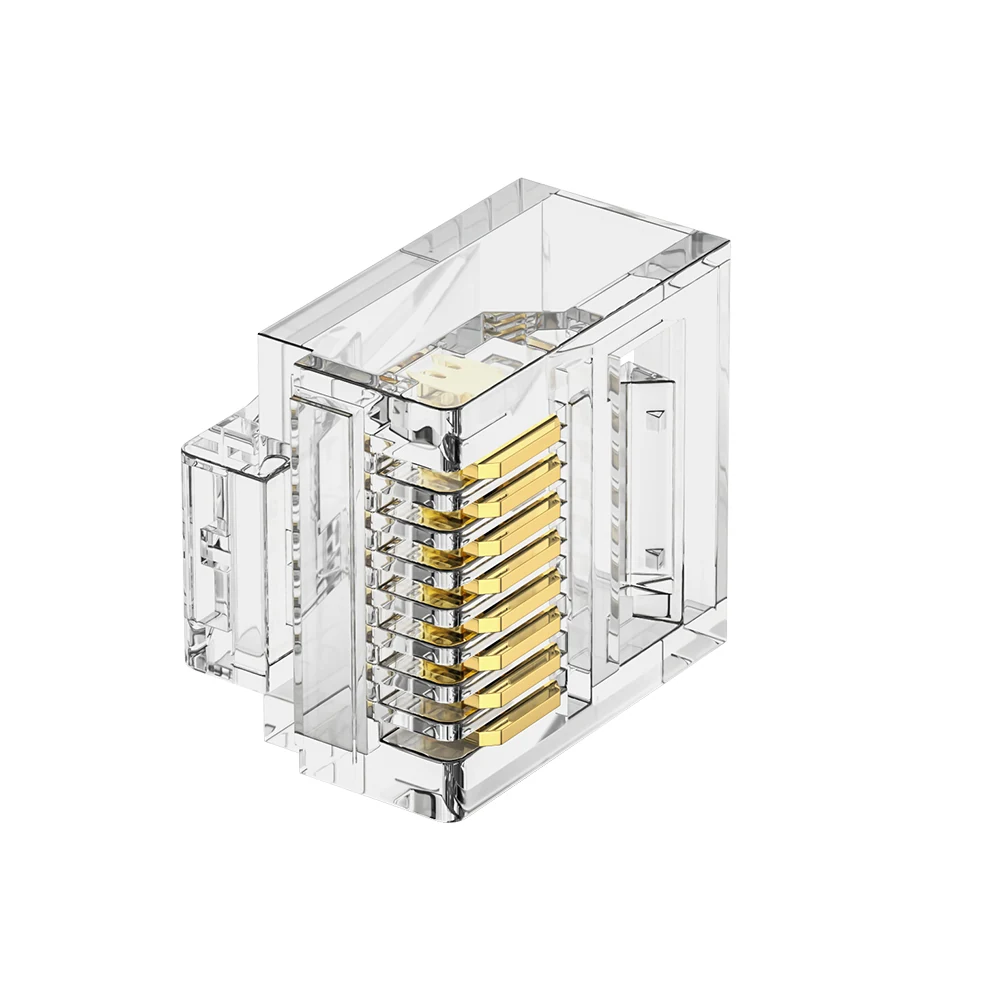

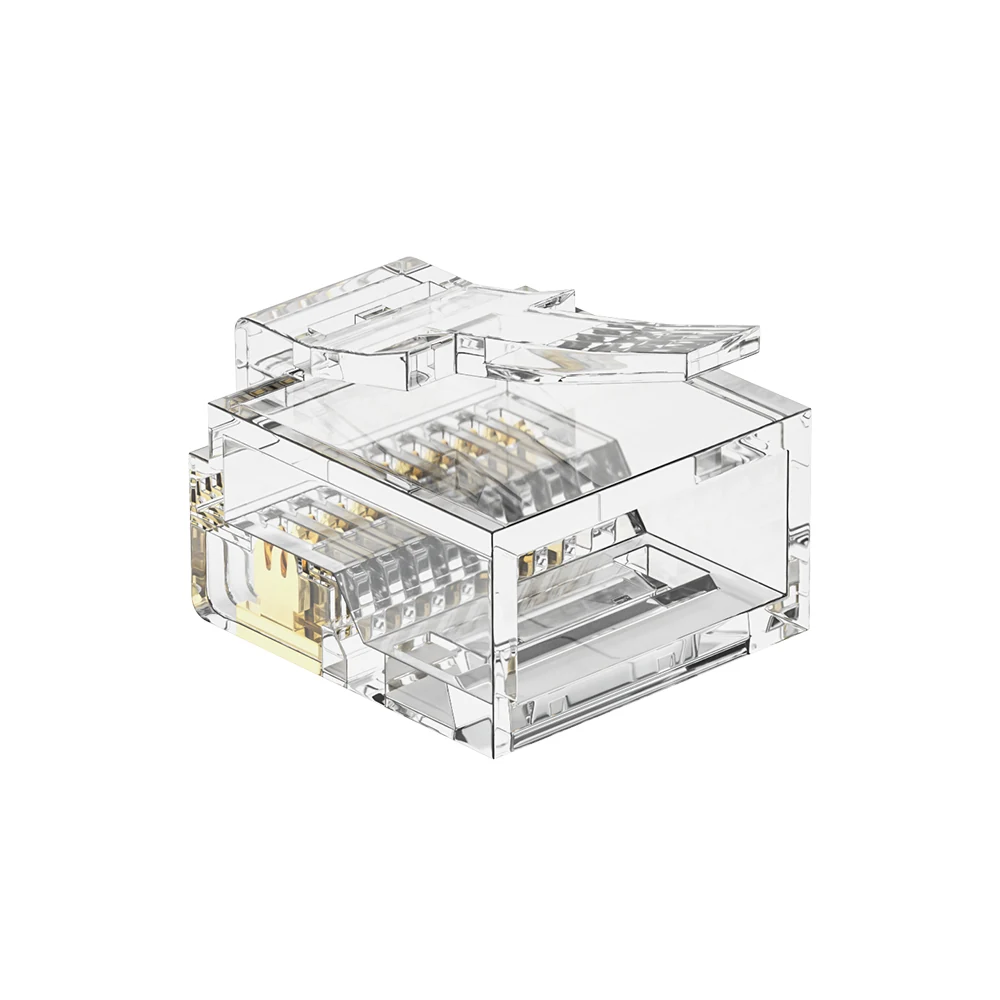

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
RFQ / SAMPLE REQUEST
Tell Us What the Application Requires
Share the target specification, quantity, cable construction and OEM/ODM requirements. Our team will review the critical interfaces before quotation.
- Product and cable compatibility review
- Sample, lead-time and packaging discussion
- Clear follow-up for export projects
