RJ45 Modular Plug

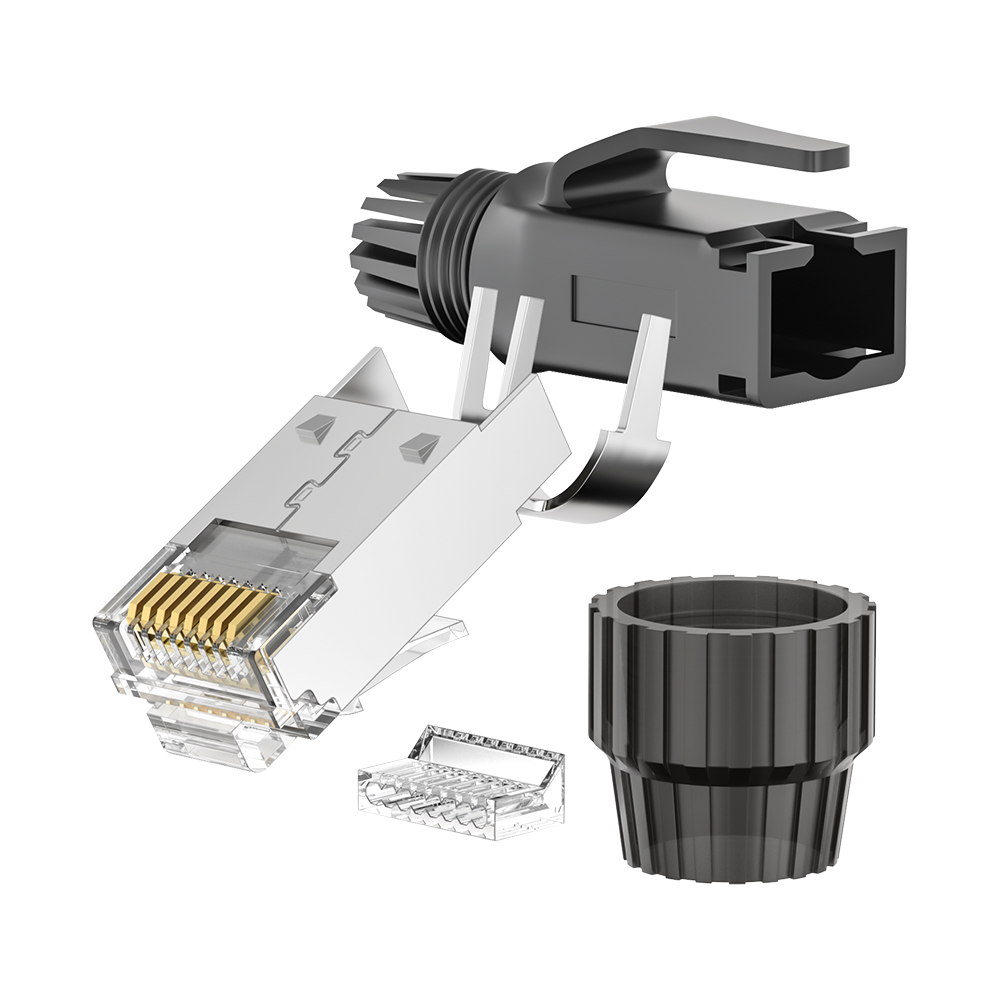

CAT6 RJ45 8P8C FTP Industrial Modular Plug 50U Gold Plated 1.0mm Wire Core
CAT6 RJ45 8P8C FTP industrial reinforced modular plug with 4-piece design, 1.0mm core hole, and 50U gold plated contacts. Supports 0.75–1.0mm conductors and 22–24AWG Ethernet cables for stable and durable network termination.
SKU Variants
DT-6H6B-IND1.0
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT6 RJ45 8P8C FTP Industrial Modular Plug |
| Model | DT-6H6B-IND1.0 |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT6 |
| Shielding Type | FTP (Foiled Twisted Pair) |

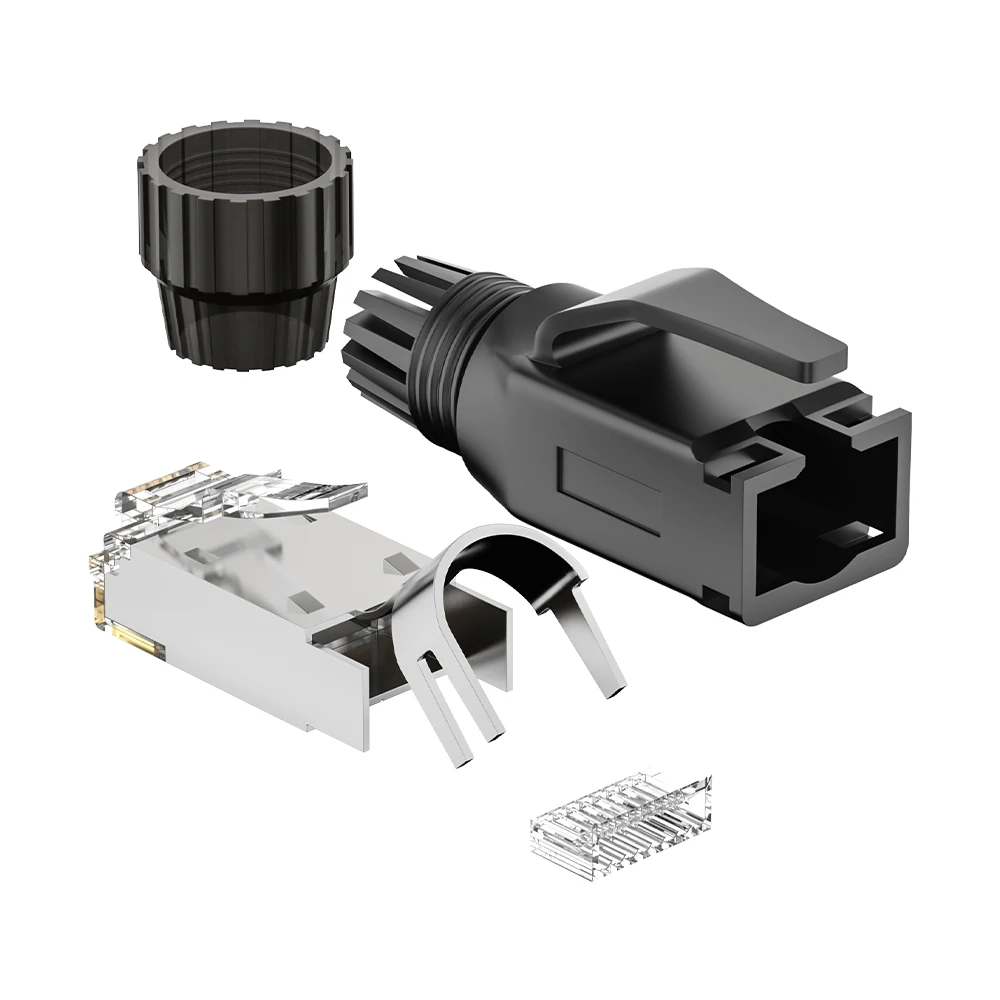

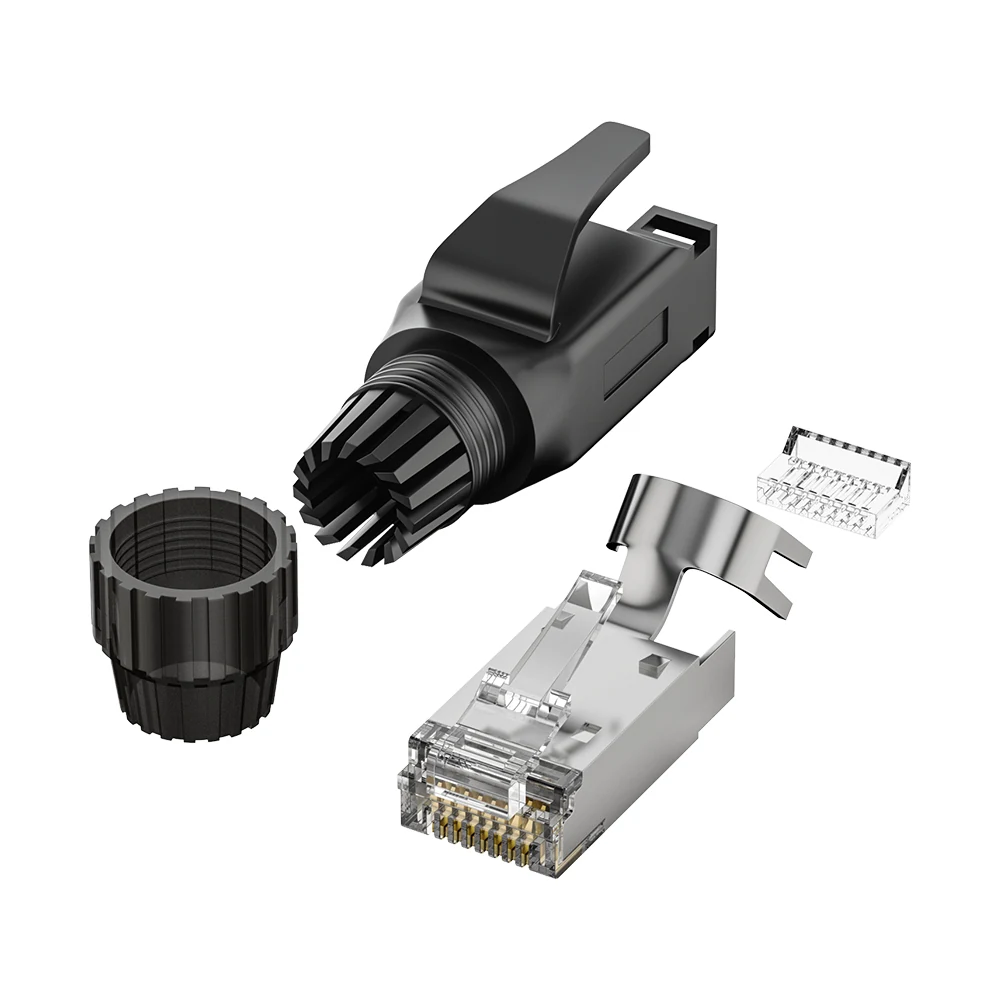

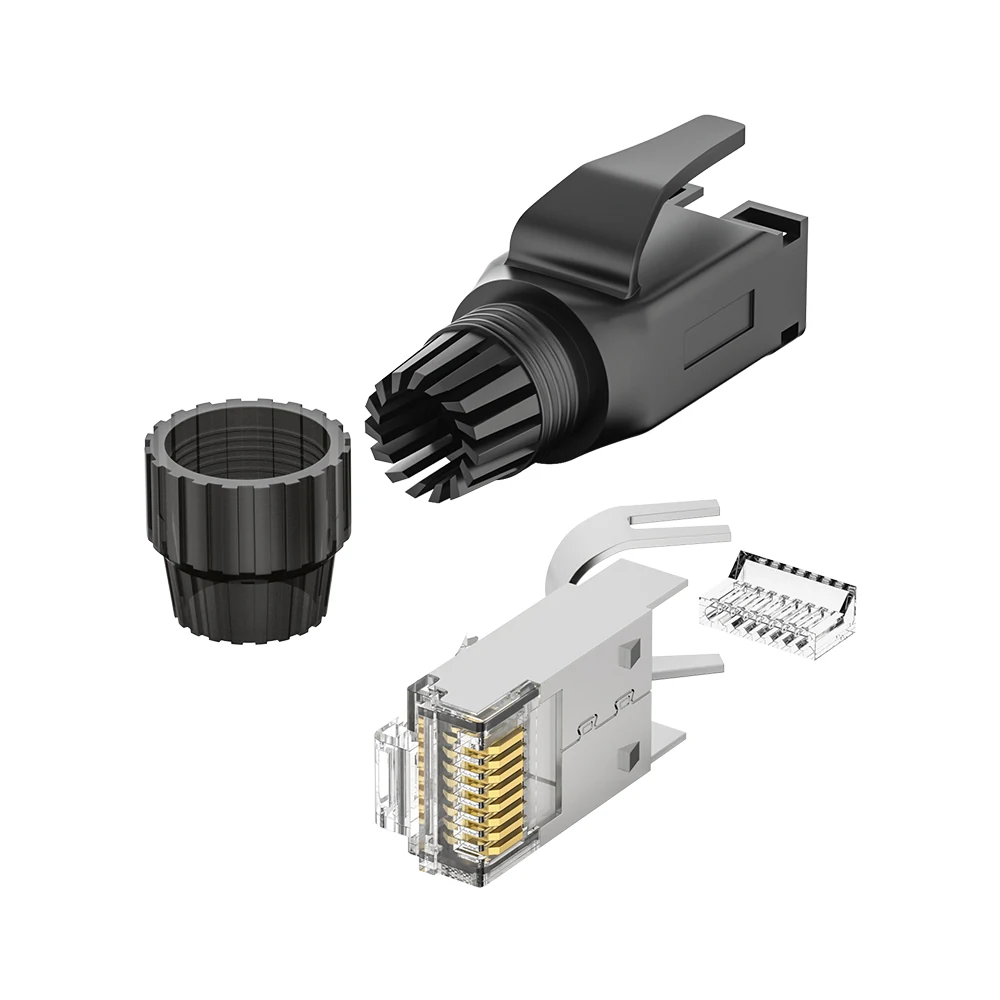

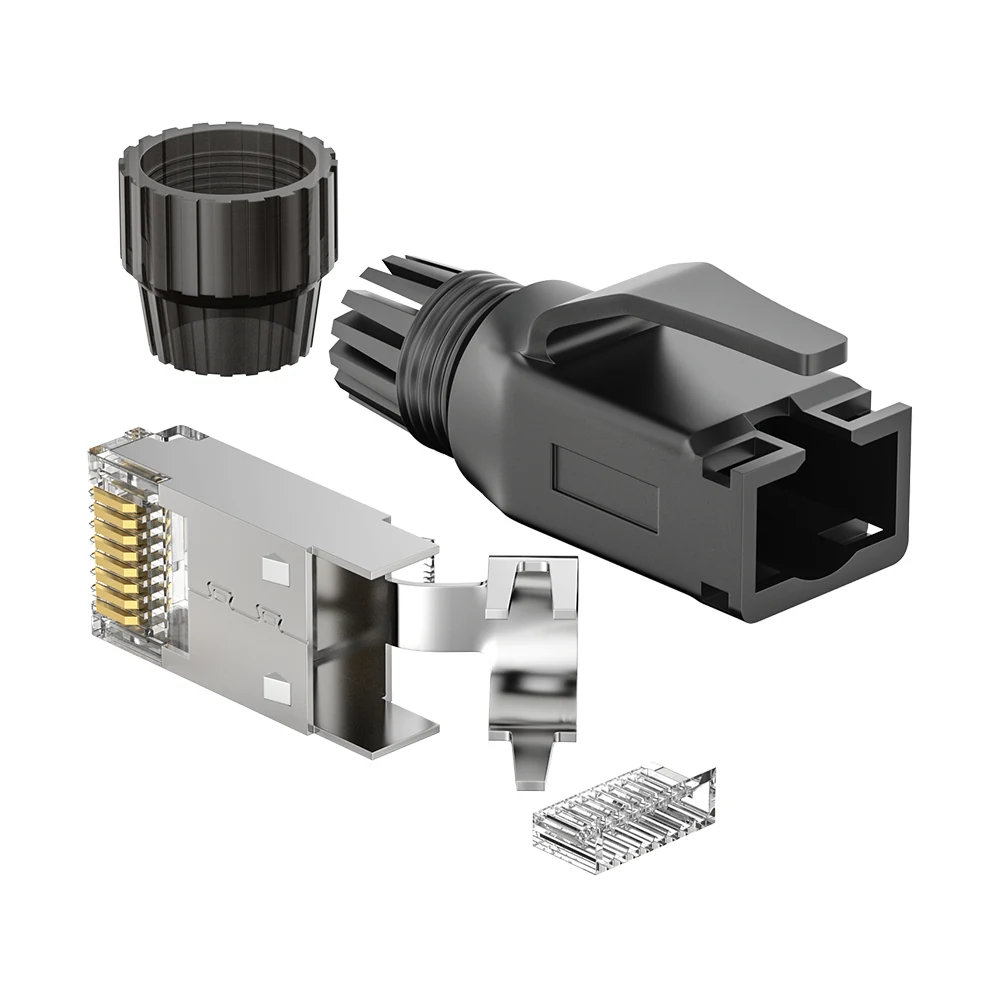

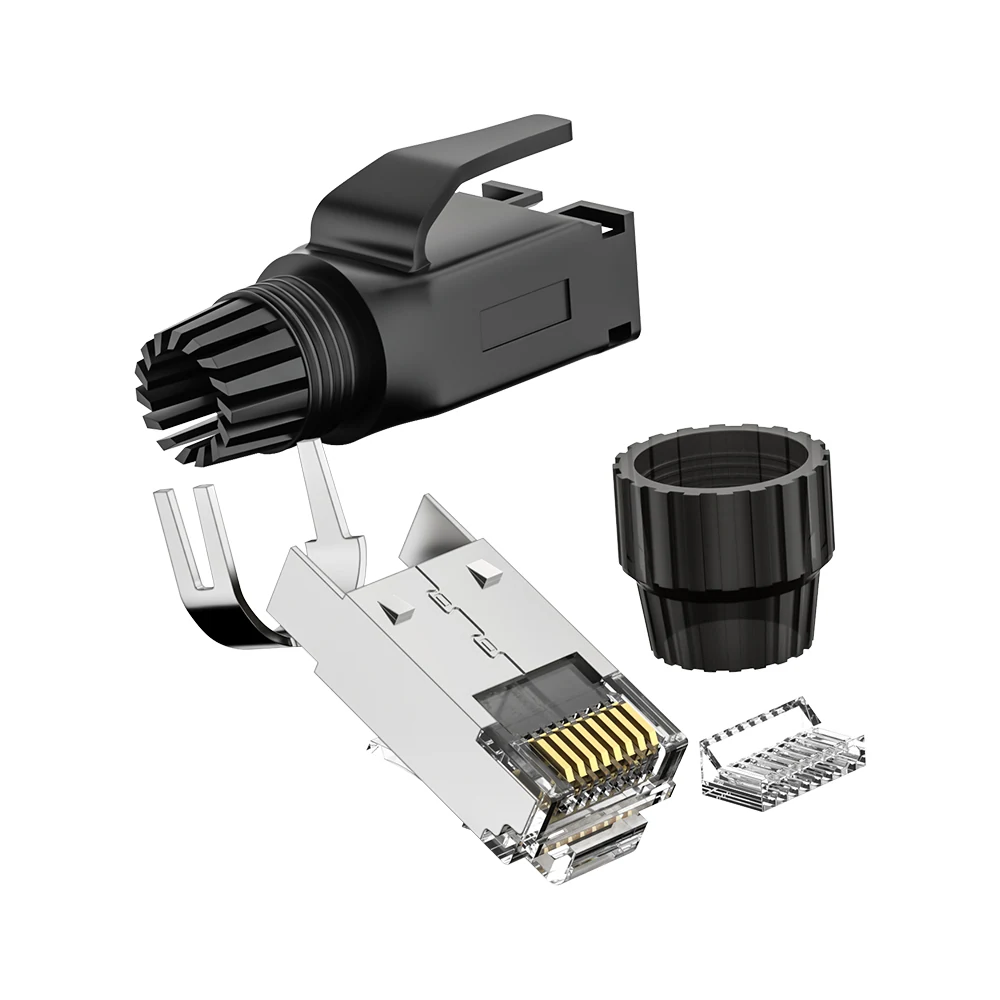

| Structure | 4-Piece Reinforced Design |
| Wire Core Hole | 1.0mm |
| Conductor Diameter Range | 0.75–1.0mm |
| Supported Cable Type | 22–24AWG Solid or Stranded Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 50U Gold Plated |
| Housing Material | PC + Copper Shield Shell |
| Flame Rating | UL94-V2 |
| Electrical Rating | 125V AC 1.5A @ 25℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (100V DC / 1 min) |
| Dielectric Strength | 1000V AC / 1 min, no breakdown |
| Pull Test | Max 30N |
| Durability | ≥750 mating cycles |
| Operating Temperature | -40℃ ~ +85℃ |
| Certifications | UL / CE / RoHS / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
This CAT6 RJ45 8P8C FTP industrial modular plug is designed with a reinforced 4-piece structure for improved stability and termination accuracy. Featuring a 1.0mm wire core hole, it is suitable for 0.75–1.0mm conductor diameter cables and standard 22–24AWG Ethernet wires.
Key Features
- CAT6 performance for stable Ethernet connectivity
- FTP shielding for EMI/RFI protection
- 4-piece reinforced industrial structure design
- 50U gold plated contacts for high durability and conductivity
- 1.0mm core hole for precise wire compatibility
- Supports 22–24AWG network cables
- High durability with ≥750 mating cycles
- Operating temperature range: -40℃ to +85℃
- Fully compliant with UL, CE, RoHS, ISO9001 standards
Applications
- Structured cabling systems
- Enterprise network installations
- Telecom infrastructure
- Data center networking
- Industrial Ethernet environments
OEM & ODM Service
Detwiler Tech provides OEM/ODM customization including logo printing, packaging design, gold plating options, and bulk manufacturing solutions for global distributors and B2B customers.
Buyer specification guide
Match a Cat6 industrial RJ45 plug to the conductor
The four-piece reinforced design uses a 1.0 mm core hole for 0.75–1.0 mm conductors. Confirm the cable construction, shield termination and tooling as a complete assembly.
Information to confirm before quotation
- 22–24 AWG cable and 0.75–1.0 mm insulated-conductor fit
- Four-piece assembly order, shield contact and crimping tool
- 50U contact requirement, sample inspection, quantity and packaging
Frequently asked questions
What does the 1.0 mm core-hole specification need to match?
It needs to match the insulated conductor diameter. Confirm the actual cable drawing or measurements rather than selecting by AWG alone.
Which items should be sampled with the Cat6 industrial plug?
Sample the intended cable, plug components, boot when used and crimping tool together, then inspect termination and test the assembled link.

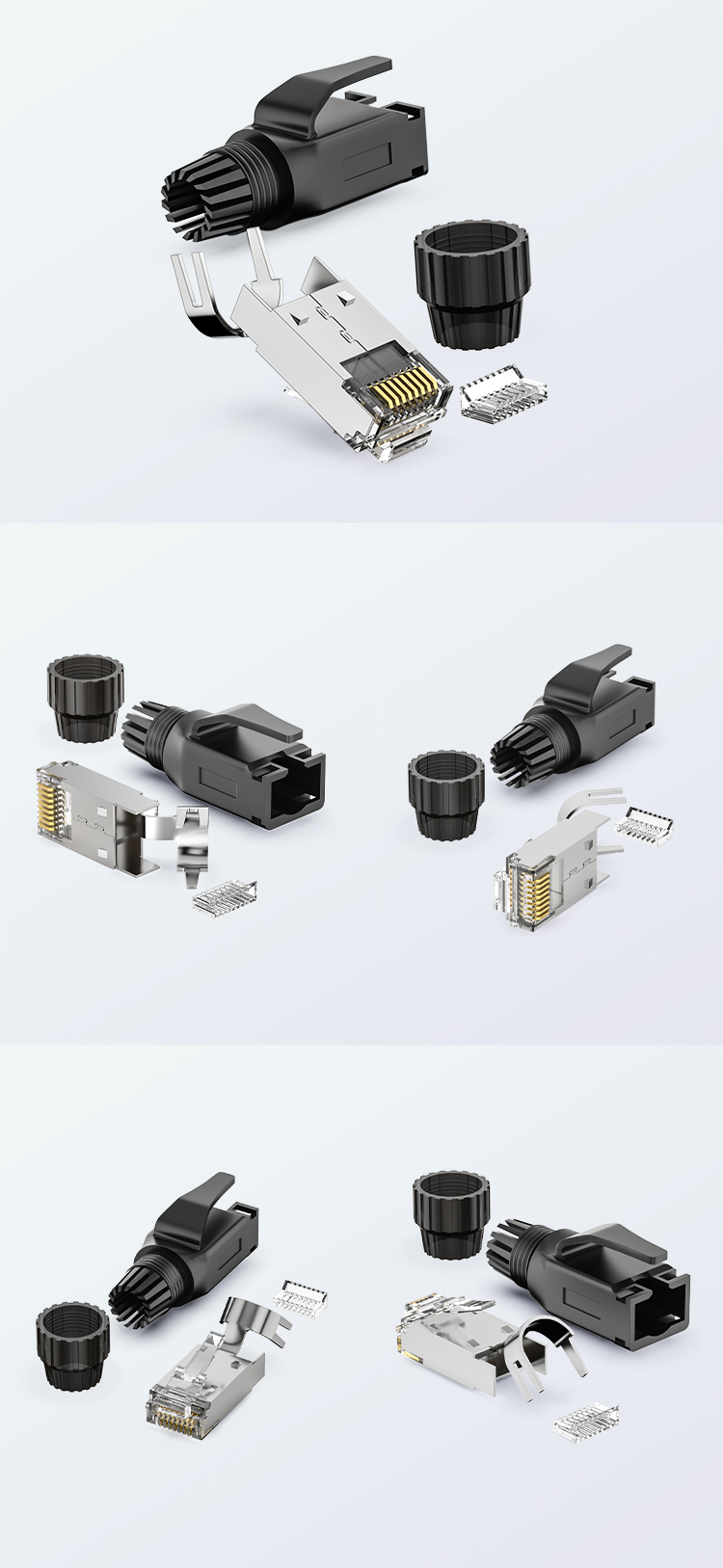

See the Product from Every Critical Angle
