Specification Review
Align category, shielding, cable fit, contact plating and application requirements.
RJ45 Modular Plug

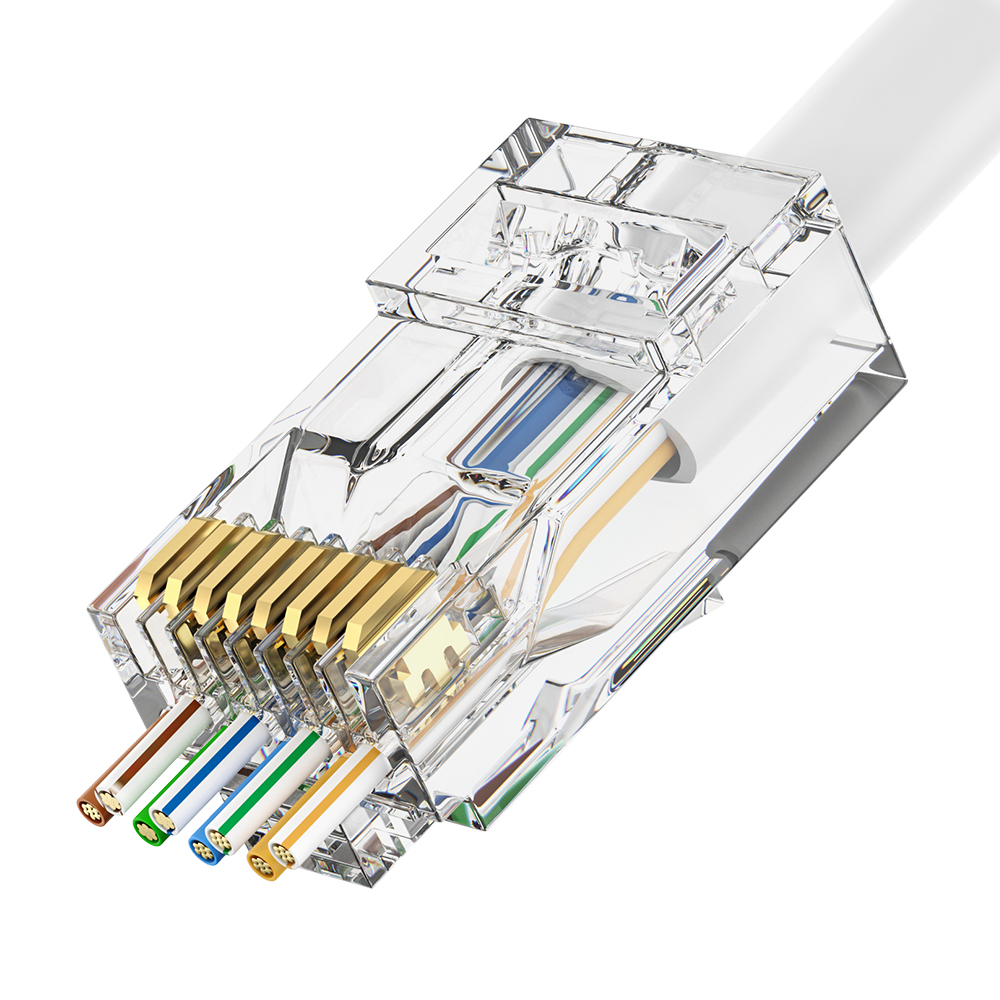

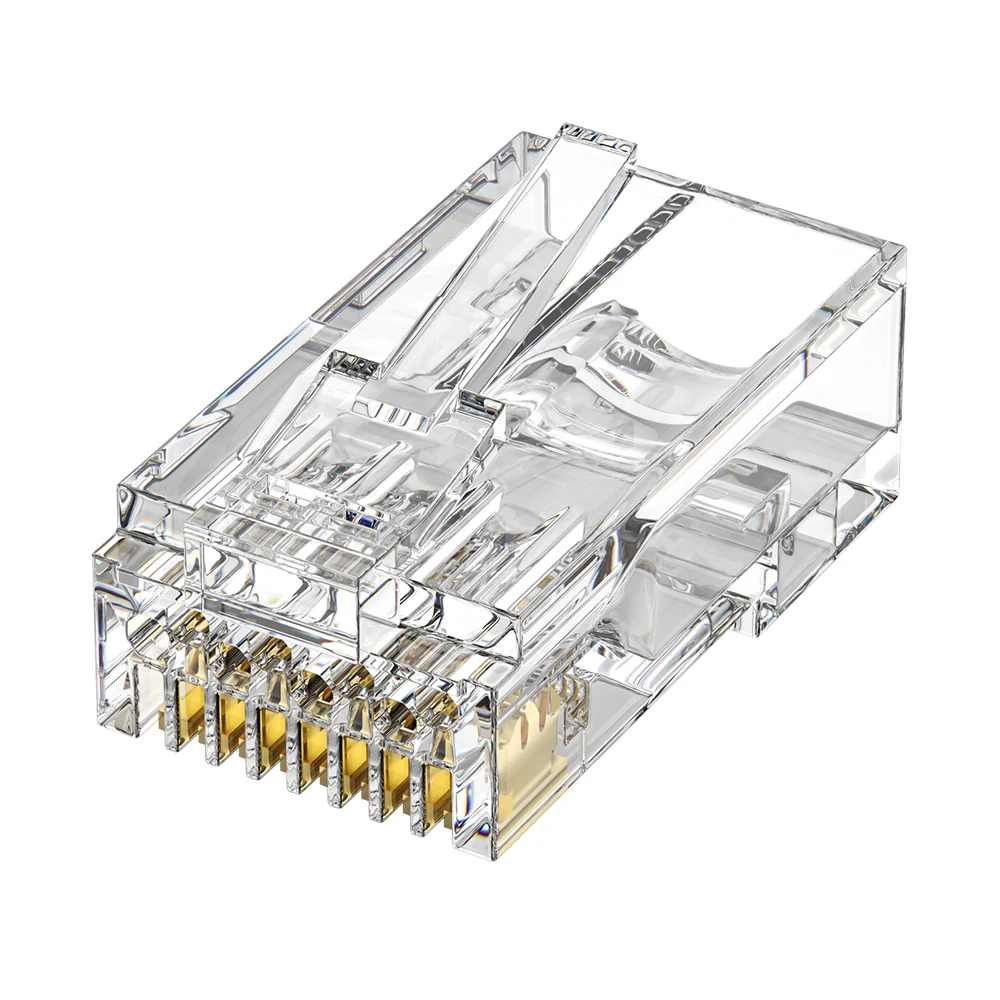

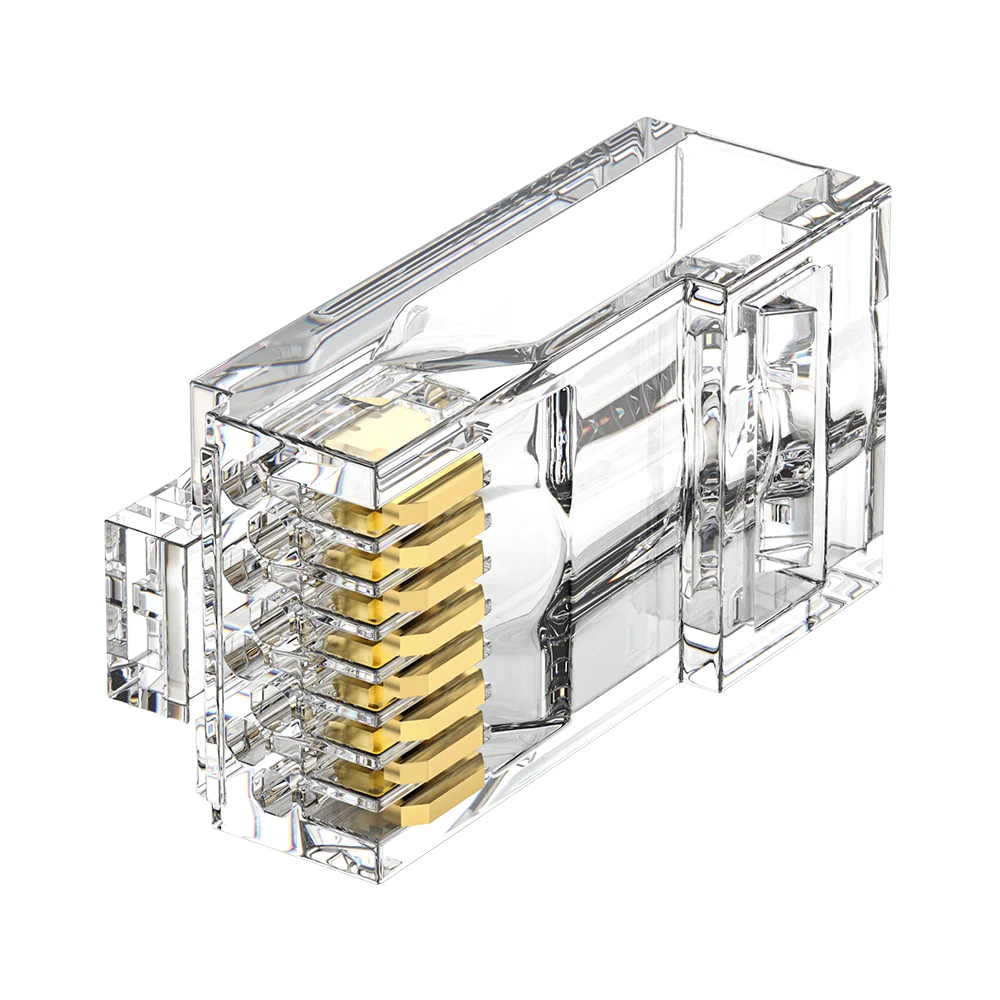

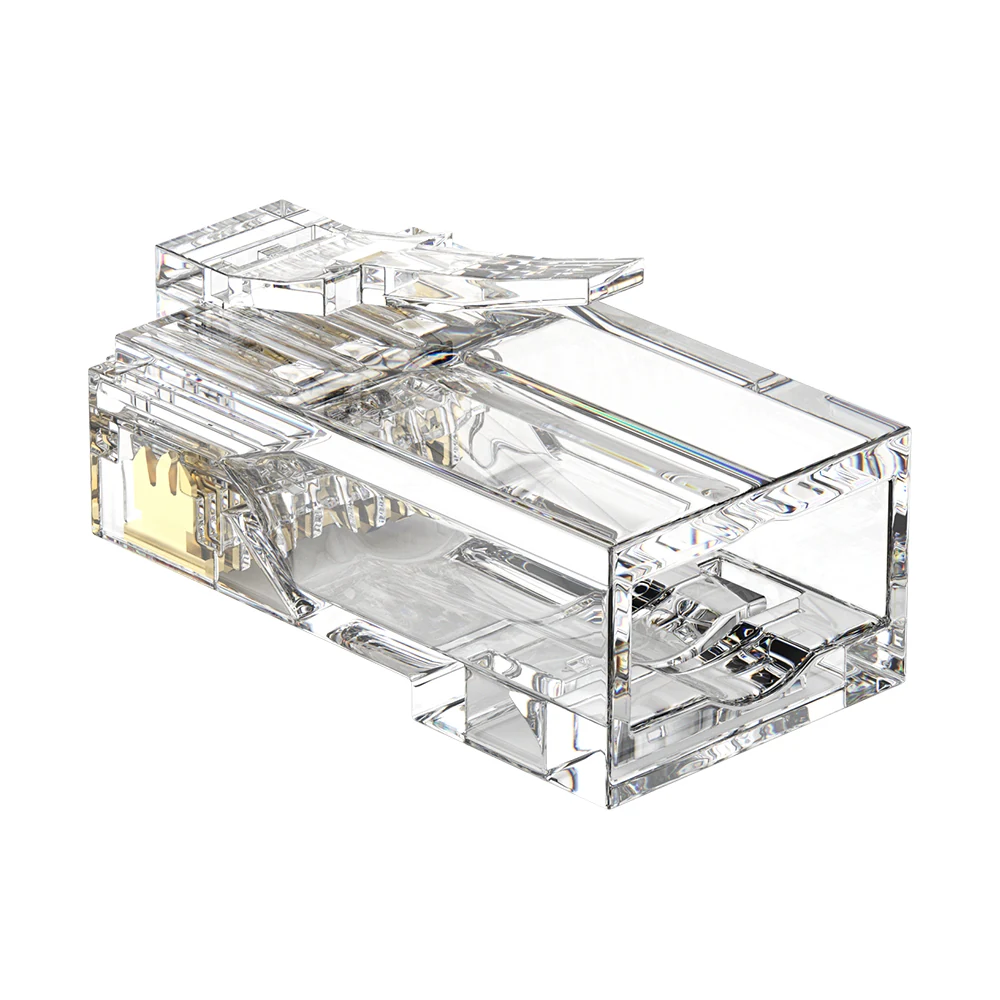

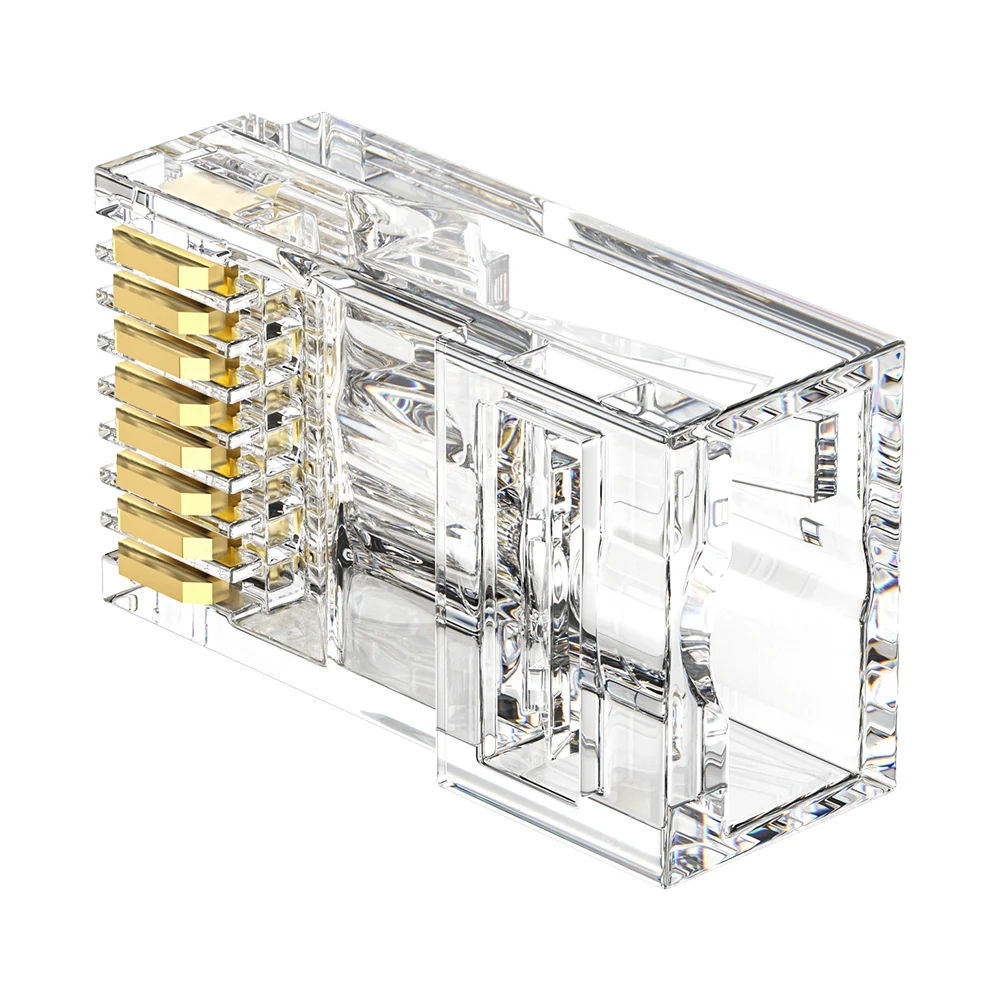

CAT6 RJ45 8P8C UTP Pass-Through Modular Plug 1.1mm Easy Termination 1U Gold Plated
CAT6 RJ45 8P8C UTP pass-through (front-end piercing) modular plug designed for easy and fast installation. Features 1.1mm core hole, 1U gold plated contacts, and supports 0.75–1.1mm conductors for 22–24AWG Ethernet cables.
SKU Variants
DT-104EV
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT6 RJ45 8P8C UTP Pass-Through Modular Plug |
| Model | DT-104EV |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT6 |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Structure | Pass-Through / Front Piercing Design |
| Wire Core Hole | 1.1mm |
| Supported Conductor Diameter | 0.75–1.1mm |
| Supported Cable Type | 22–24AWG Solid or Stranded Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC (Polycarbonate) |
| Flame Rating | UL94-V2 |
| Electrical Rating | 125V AC 1.5A @ 25℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (100V DC / 1 min) |
| Dielectric Strength | 1000V AC / 1 min, no breakdown |
| Pull Test | ≤30N |
| Durability | ≥750 mating cycles |
| IP Rating | IP20 |
| Operating Temperature | -40℃ ~ +85℃ |
| Certifications | UL / CSA / CE / SGS / RoHS / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
This CAT6 RJ45 8P8C UTP pass-through modular plug features a front-end piercing design that simplifies cable termination and improves installation efficiency. With a 1.1mm core hole, it supports 0.75–1.1mm conductors for stable and reliable Ethernet connectivity.
Key Features
- CAT6 RJ45 8P8C UTP pass-through design
- Front piercing structure for easier installation
- 1.1mm wire core hole for flexible compatibility
- 1U gold plated contacts for stable signal transmission
- Supports 22–24AWG Ethernet cables
- High durability up to 750 mating cycles
- IP20 protection rating for indoor use
- Operating temperature range: -40℃ to +85℃
- Compliant with UL, CSA, CE, SGS, RoHS, ISO9001
Applications
- Fast termination network installations
- Data center cabling systems
- Enterprise structured cabling
- Office and home networking
- Telecom and IT infrastructure projects
OEM & ODM Service
Detwiler Tech provides OEM/ODM customization including logo printing, packaging design, and bulk manufacturing solutions for global distributors and structured cabling projects.
Buyer specification guide
Match a Cat6 pass-through RJ45 connector to the cable
A Cat6 pass-through RJ45 connector simplifies conductor alignment, but its 1.1 mm core holes, contact geometry and trimming workflow still need to match the actual cable and crimping tool.
Information to confirm before quotation
- 22–24 AWG conductor construction, insulation diameter and 0.75–1.1 mm fit
- Pass-through trimming blade, crimp die and conductor cut-off position
- Contact plating, cable sample, quantity, marking and packaging
Frequently asked questions
Which cable dimensions should be checked for this 1.1 mm pass-through plug?
Confirm conductor gauge and construction, insulation diameter, cable OD and whether each insulated conductor fits the 1.1 mm core-hole layout.
Does every pass-through crimping tool fit this connector?
No. The crimp die and trimming blade must align with the plug body and conductors. Approve the intended plug, cable and tool as one termination set.

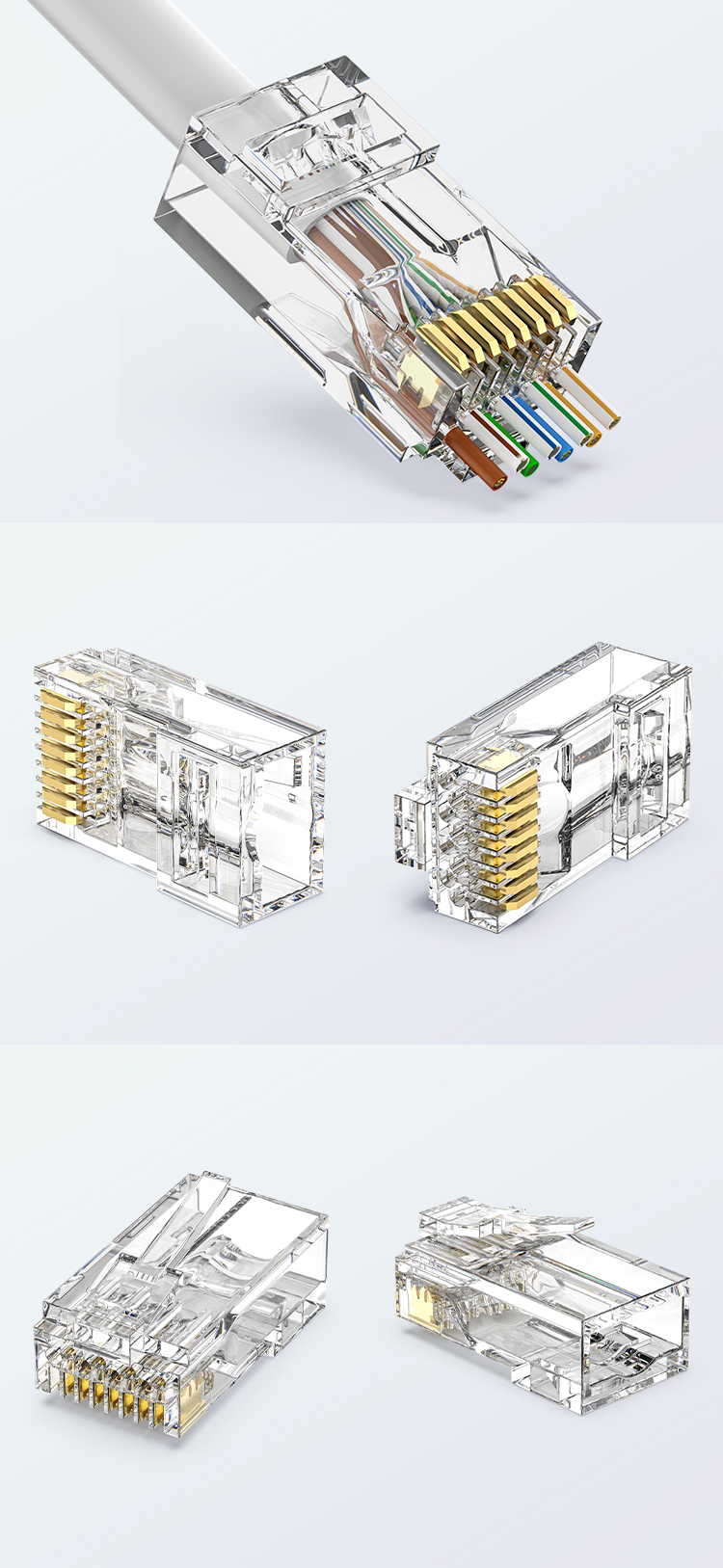

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
RFQ / SAMPLE REQUEST
Tell Us What the Application Requires
Share the target specification, quantity, cable construction and OEM/ODM requirements. Our team will review the critical interfaces before quotation.
- Product and cable compatibility review
- Sample, lead-time and packaging discussion
- Clear follow-up for export projects
