Keystone Jacks

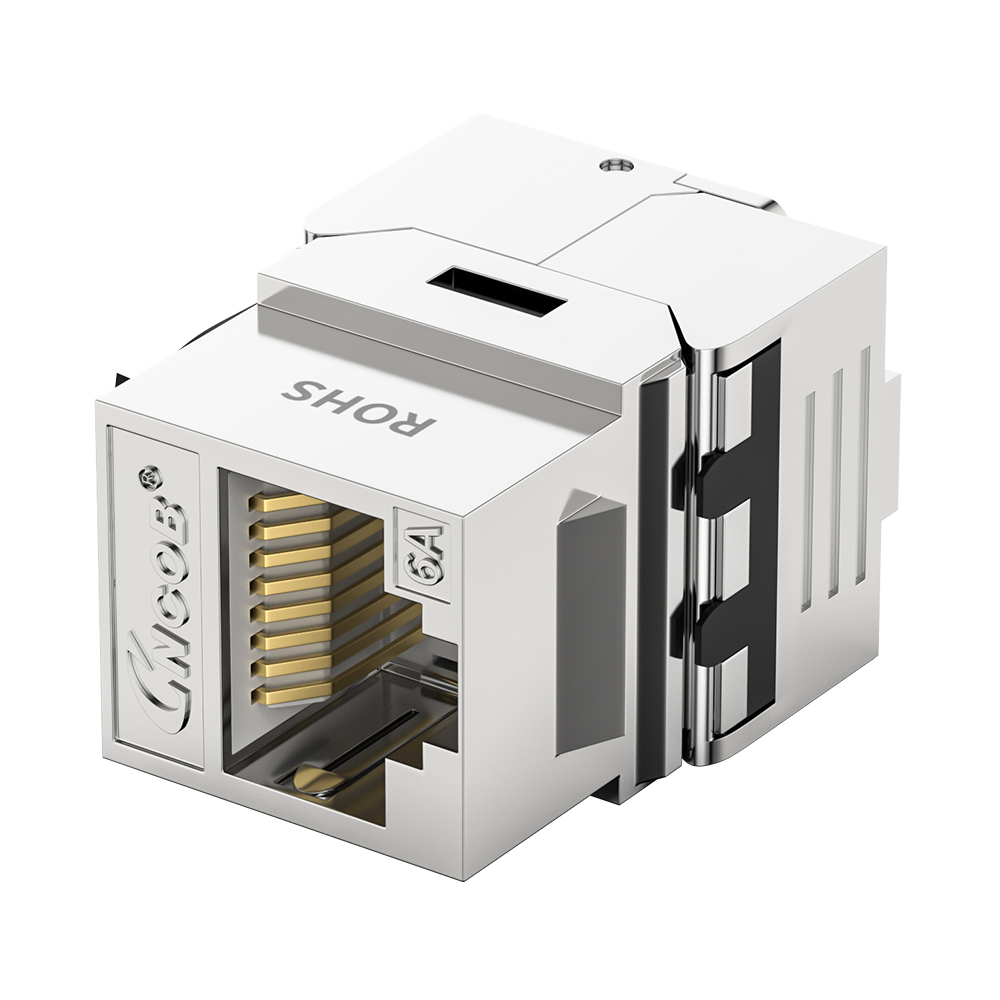

CAT6A FTP Short Body Toolless Keystone Jack Shielded RJ45 50U Gold Plated
CAT6A FTP short body toolless keystone jack designed for space-saving structured cabling installations. Featuring a fully shielded die-cast zinc alloy housing, reusable tool-free termination, and 50U gold-plated contacts, it supports 23–26AWG solid and stranded Ethernet cables with T568A/T568B wiring. Ideal for high-density patch panels, wall outlets, data centers, and OEM/ODM projects.
SKU Variants
DT-MD2006ADT-NEW
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT6A FTP Short Body Toolless Keystone Jack |
| Model | DT-MD2006ADT-NEW |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Keystone Jack |
| Interface | RJ45 Female |
| Category | CAT6A |
| Shielding Type | FTP |
| Design | Short Body Toolless |
| Contact Material | Nickel-Plated Phosphor Bronze |
| Contact Plating | 50U Gold Plated |
| Housing Material | Nickel-Plated Die-Cast Zinc Alloy |
| Contact Carrier | PC UL94-V2 |
| IDC Housing | PC UL94-V2 |
| IDC Terminal | Tin-Plated Phosphor Bronze |
| Ground Contact | Stainless Steel |
| Ground Block | Nickel-Plated Die-Cast Zinc Alloy |
| PCB Material | FR4 UL94-V0 |
| Supported Cable | 23–26AWG Solid & Stranded Ethernet Cable |
| Wiring Standard | T568A / T568B |
| Installation | Toolless Reusable Termination |
| Insertion Force | ≤30N (IEC 60603-7-5) |
| Retention Force | 7.7kg (Plug to Jack) |
| Jack Durability | ≥750 Mating Cycles |
| IDC Durability | ≥20 Termination Cycles |
| Operating Temperature | -10°C to +60°C |
| Performance Standard | ANSI/TIA-568-C.2 Cat6A |
| Compliance | ISO/IEC 11801, IEC 60603-7-5 |
| Packaging | Individual Bag / OEM Package |
| HS Code | 8517799000 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | 3U”, 6U”, 15U”, 30U”, 50U” |
| Wiring Standard | T568A, T568B |
| Packaging | Individual Bag, OEM Package |
| Brand | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
The Detwiler Tech DT-MD2006ADT-NEW CAT6A FTP Short Body Toolless Keystone Jack is engineered for high-density structured cabling environments where installation space is limited. Its compact short-body design makes installation easier inside wall plates, patch panels, and shallow back boxes while maintaining full CAT6A transmission performance.
Constructed with a nickel-plated die-cast zinc alloy shielded housing, 50U gold-plated phosphor bronze contacts, and a reusable toolless termination mechanism, it provides fast installation, excellent EMI protection, and reliable long-term network performance. Supporting 23–26AWG solid and stranded Ethernet cables, it complies with ANSI/TIA-568-C.2 Cat6A, ISO/IEC 11801, and IEC 60603-7-5 standards.
Key Features
- CAT6A FTP shielded RJ45 keystone jack
- Compact short-body design for easier installation
- Toolless reusable termination
- 50U gold-plated contacts
- Nickel-plated die-cast zinc alloy housing
- Supports 23–26AWG solid & stranded cables
- T568A/T568B wiring compatible
- Superior EMI/RFI shielding performance
- ANSI/TIA-568-C.2 Cat6A compliant
- ISO/IEC 11801 & IEC 60603-7-5 compliant
- OEM & ODM manufacturing supported
Applications
- High-density patch panels
- Wall outlets
- Structured cabling systems
- Enterprise LAN
- Data centers
- Server rooms
- Industrial Ethernet
- PoE networks
- Commercial buildings
OEM & ODM Service
Detwiler Tech provides complete OEM/ODM structured cabling solutions, including custom logo engraving, private labeling, customized packaging, barcode labels, product color customization, and professional manufacturing services for distributors, contractors, and networking brands worldwide.
Buyer specification guide
Check depth and cable fit for a Cat6A short-body keystone jack
A Cat6A short-body keystone jack is intended for installations where rear clearance matters. Measure the panel or box depth, cable bend space and termination access as well as checking the electrical channel requirement.
Information to confirm before quotation
- Available panel depth, rear clearance and cable bend space
- 23–26 AWG conductor, insulation diameter, cable OD and shielding
- Termination access, grounding plan, samples and packaging
Frequently asked questions
What should be measured before choosing a short-body keystone jack?
Measure the usable panel or outlet-box depth, rear cable clearance, bend space and access needed to close the tool-free termination.
Does the short body alone confirm Cat6A channel performance?
No. The installed channel still depends on the cable, patch hardware, termination quality, shielding and the agreed test method.

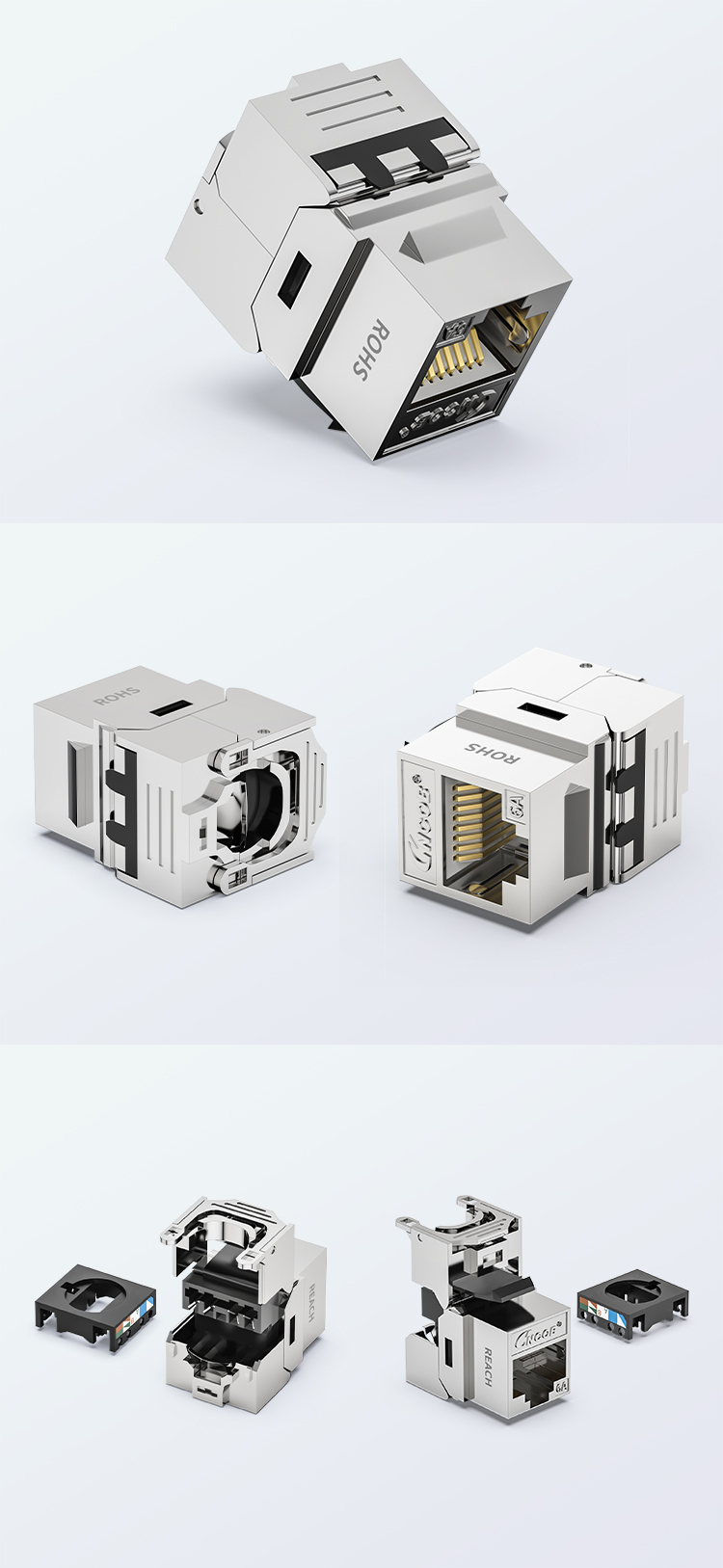

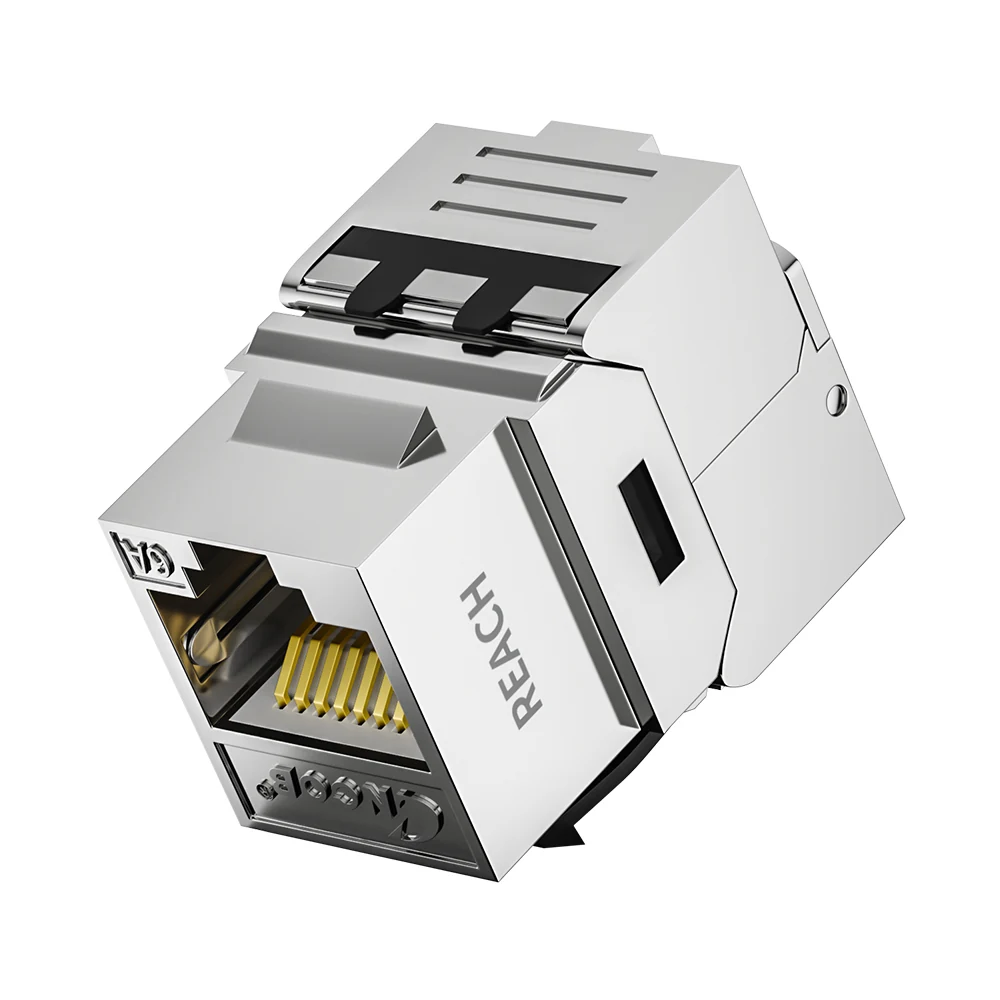

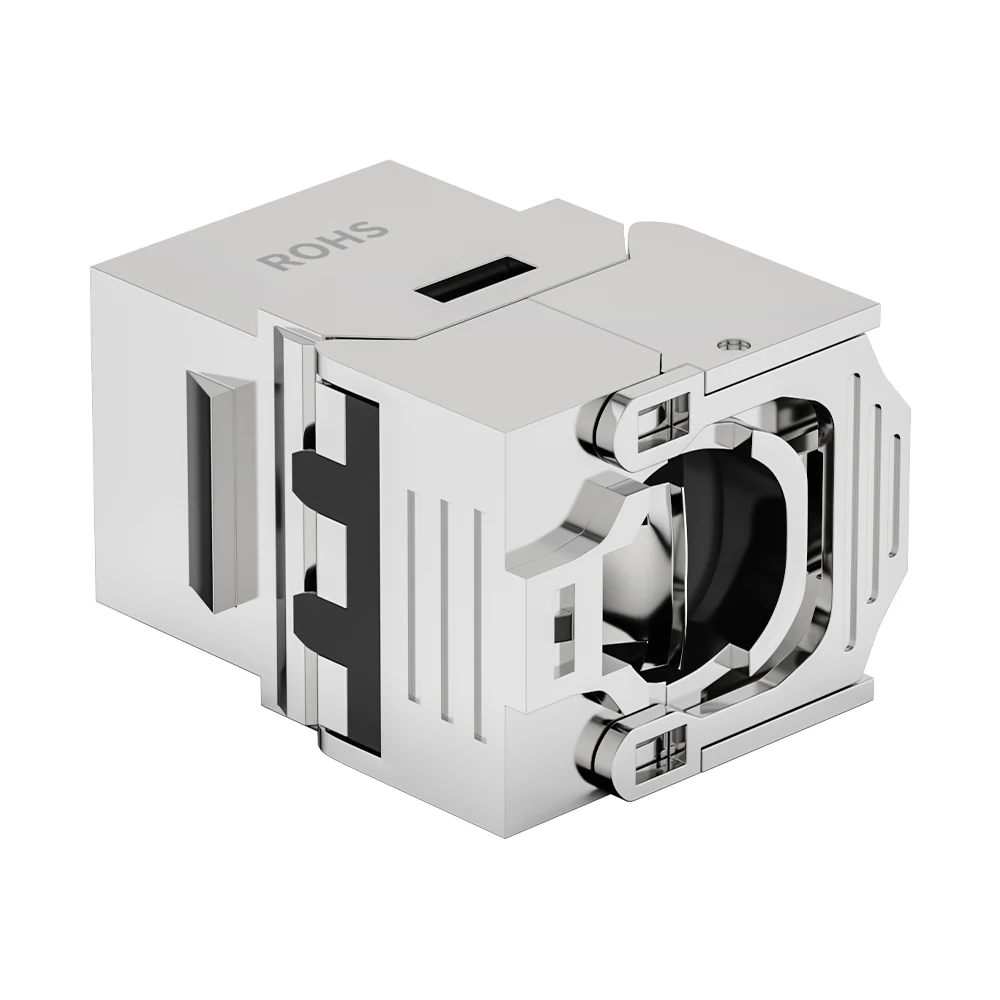

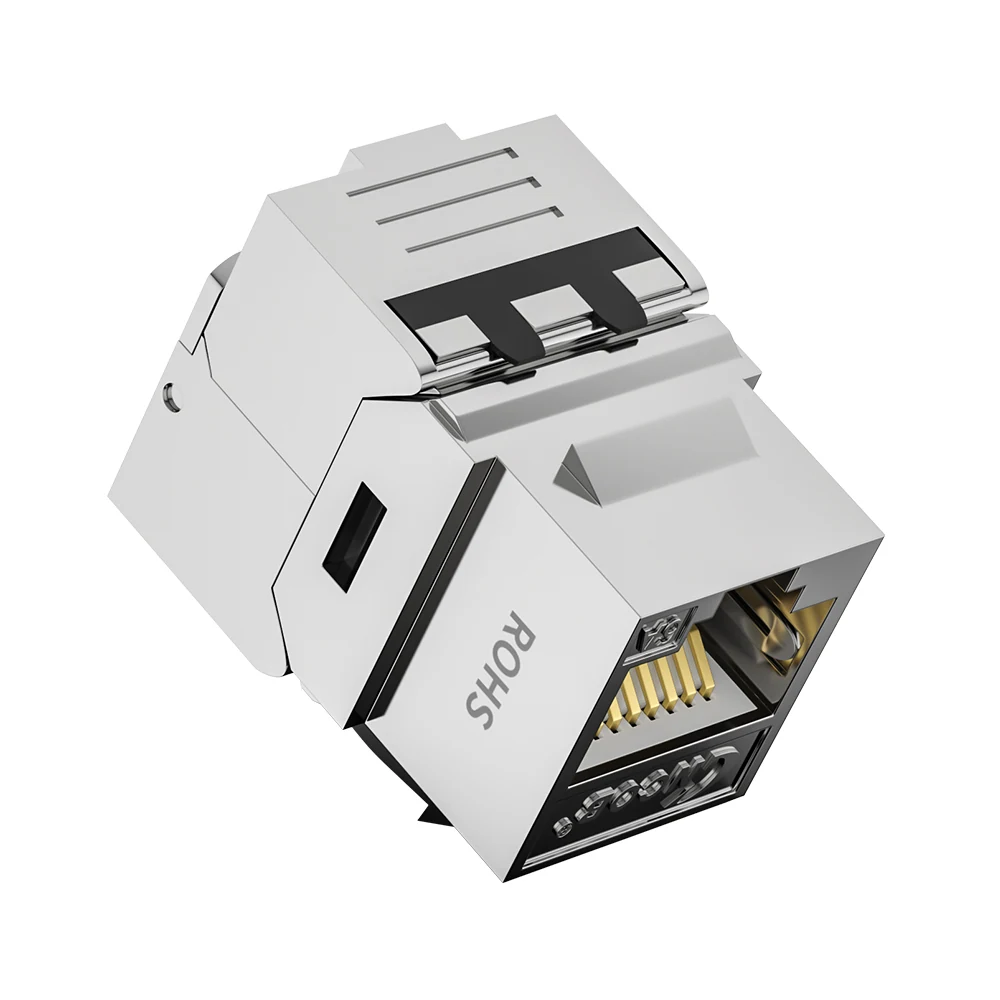

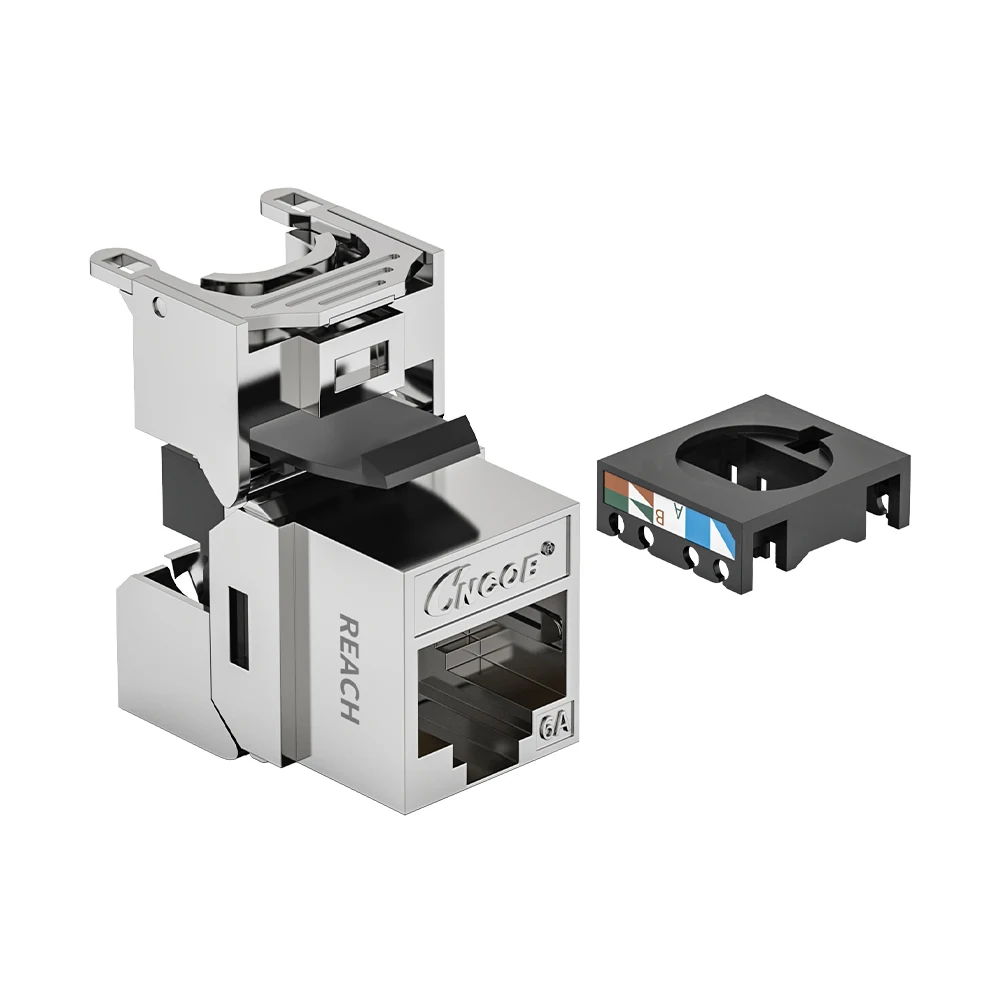

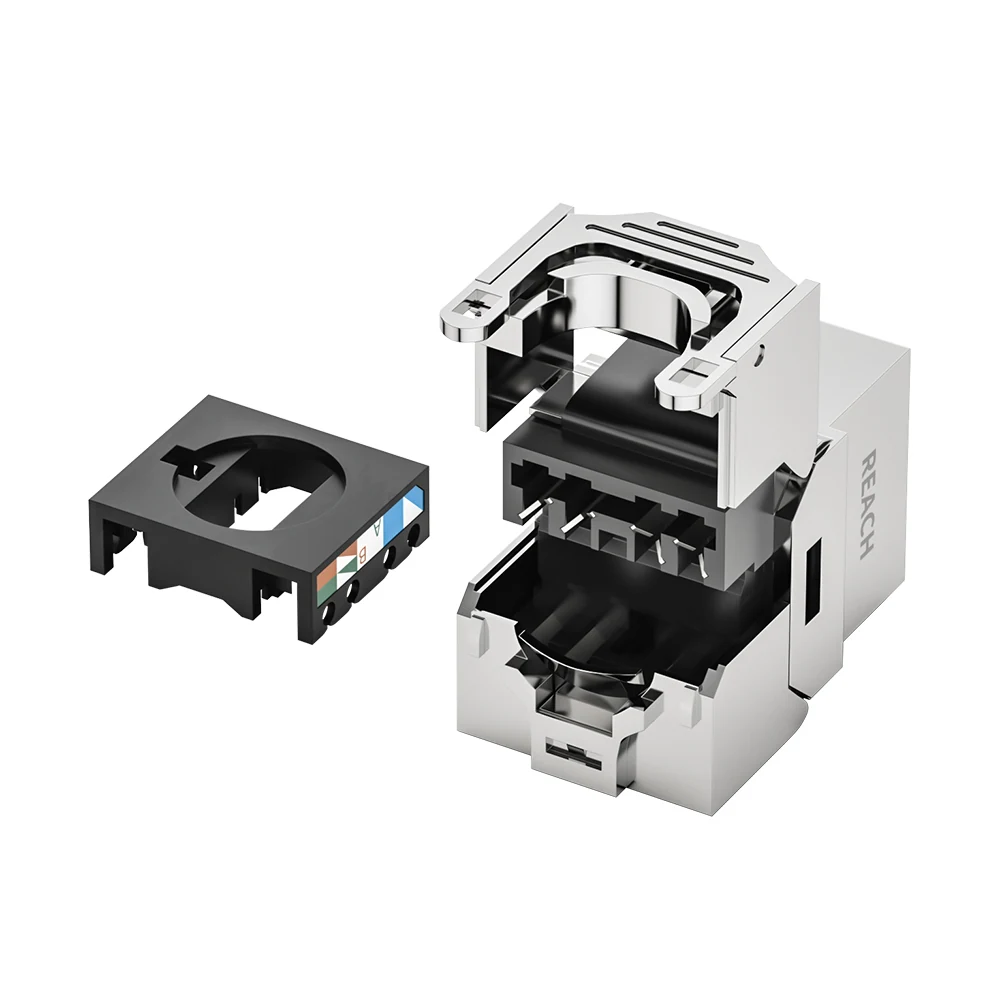

See the Product from Every Critical Angle
