Keystone Jacks

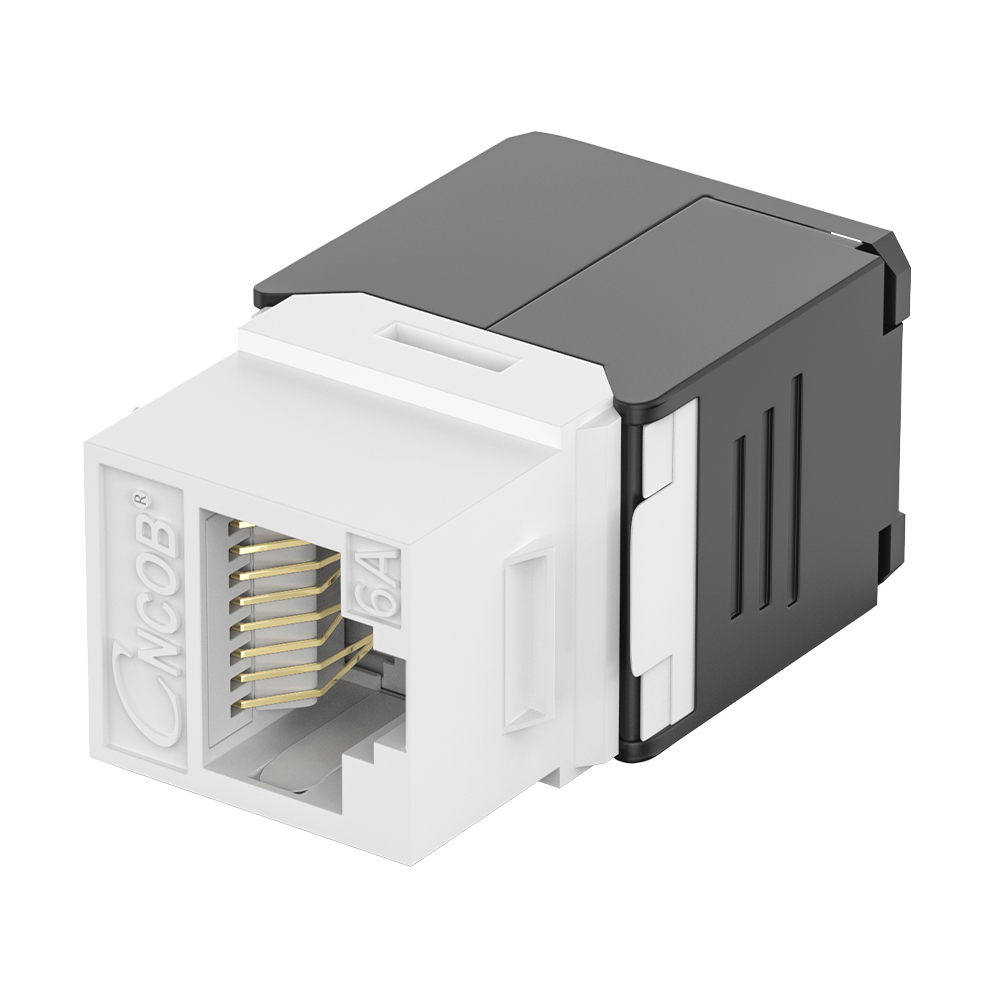

CAT6A Tool-Free UTP Keystone Jack RJ45 50U Gold Plated 23–26AWG
CAT6A tool-free UTP keystone jack designed for reusable, fast installation without tools. Supports 23–26AWG solid and stranded Ethernet cables with stable Cat.6A transmission performance. Features PC UL94-V2 housing, FR4 PCB, and 50U gold-plated contacts for reliable Gigabit and 10G network applications in structured cabling systems, enterprise networks, and OEM/ODM projects.
SKU Variants
DT-MD2006
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT6A Tool-Free UTP Keystone Jack |
| Model | DT-MD2006 |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Keystone Jack |
| Interface | RJ45 8P8C |
| Category | CAT6A |
| Shielding Type | UTP |
| Contact Material | Phosphor Bronze, Nickel Plated |
| Contact Plating | 50U Gold Plated |
| IDC Terminal | Phosphor Bronze, Tin Plated |
| Housing Material | PC UL94-V2 |
| PCB | FR4 UL94-V0 |
| Supported Cable | 23–26AWG Solid & Stranded |
| Wiring Scheme | T568A / T568B |
| Insertion Force | Max 30N (IEC 60603-7-5) |
| Retention Force | 7.7kg between plug & jack |
| Operating Temperature | -10°C ~ 60°C |
| Cycle Life (Jack) | ≥750 cycles |
| IDC Life | ≥20 termination cycles |
| Standard | TIA 568C.2 / ISO/IEC 11801 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U |
| Packaging | Bag, Box, OEM Package |
| Brand | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
CAT6A tool-free UTP keystone jack designed for fast and reusable installation without punch-down tools. Supports 23–26AWG Ethernet cables and ensures stable Cat.6A transmission performance for structured cabling systems.
Built with durable PC UL94-V2 housing, FR4 PCB, and 50U gold-plated contacts for reliable conductivity and long service life.
Key Features
- Tool-free reusable design
- CAT6A RJ45 8P8C connector
- Supports 23–26AWG cables
- 50U gold-plated contacts
- FR4 PCB UL94-V0
- PC UL94-V2 housing
- T568A / T568B wiring
- Stable Cat.6A performance
- OEM/ODM supported
Applications
- Structured cabling systems
- Enterprise networks
- Data centers
- Commercial buildings
- CCTV systems
- Network cabinets
OEM & ODM Service
Detwiler Tech provides OEM/ODM services including logo printing, packaging customization, and private labeling for global distributors and system integrators.
Model-specific sourcing guide
Specify the DT-MD2006 UTP toolless jack for the cable
DT-MD2006 is an unshielded, reusable tool-free jack for 23–26 AWG cable. Confirm conductor dimensions and the wiring scheme before approving it for a Cat6A link.
Information to confirm before quotation
- 23–26 AWG solid or stranded conductor and insulation dimensions
- T568A or T568B layout, UTP construction and panel or faceplate fit
- 50U contacts, termination sample, quantity, marking and packaging
Frequently asked questions
Which cable range is listed for the DT-MD2006 jack?
The published specification lists 23–26 AWG solid and stranded Ethernet cable. Also confirm insulation diameter and cable construction.
Is DT-MD2006 the shielded Cat6A version?
No. DT-MD2006 is the UTP version. Select a separately specified FTP jack when the installation requires shield continuity.

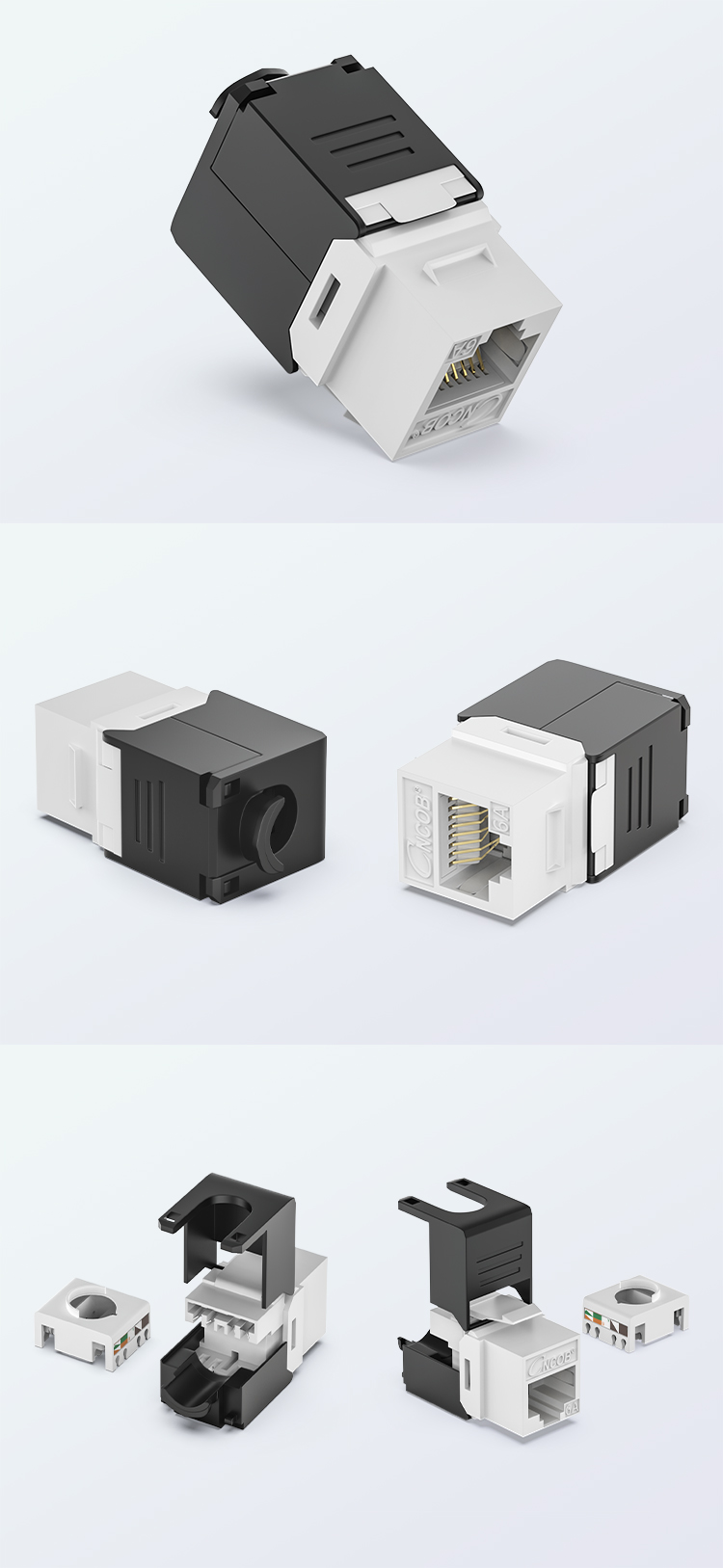

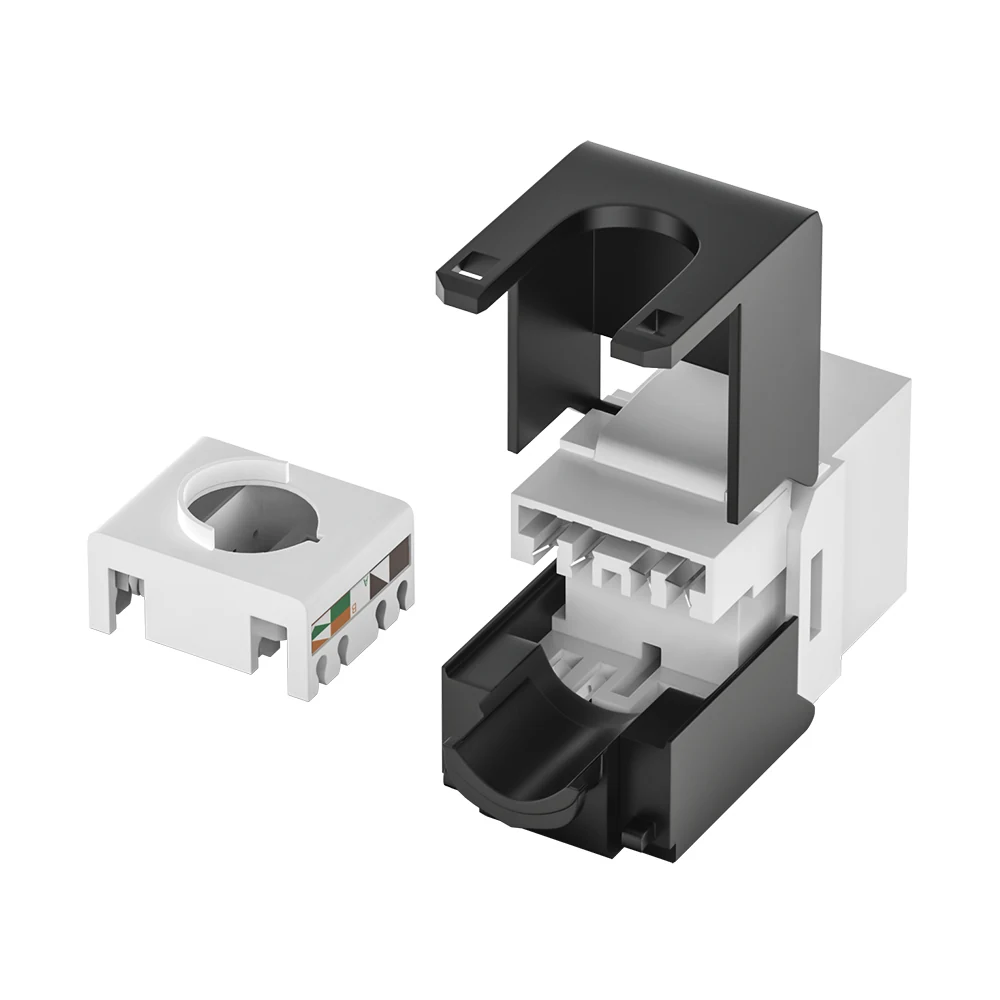

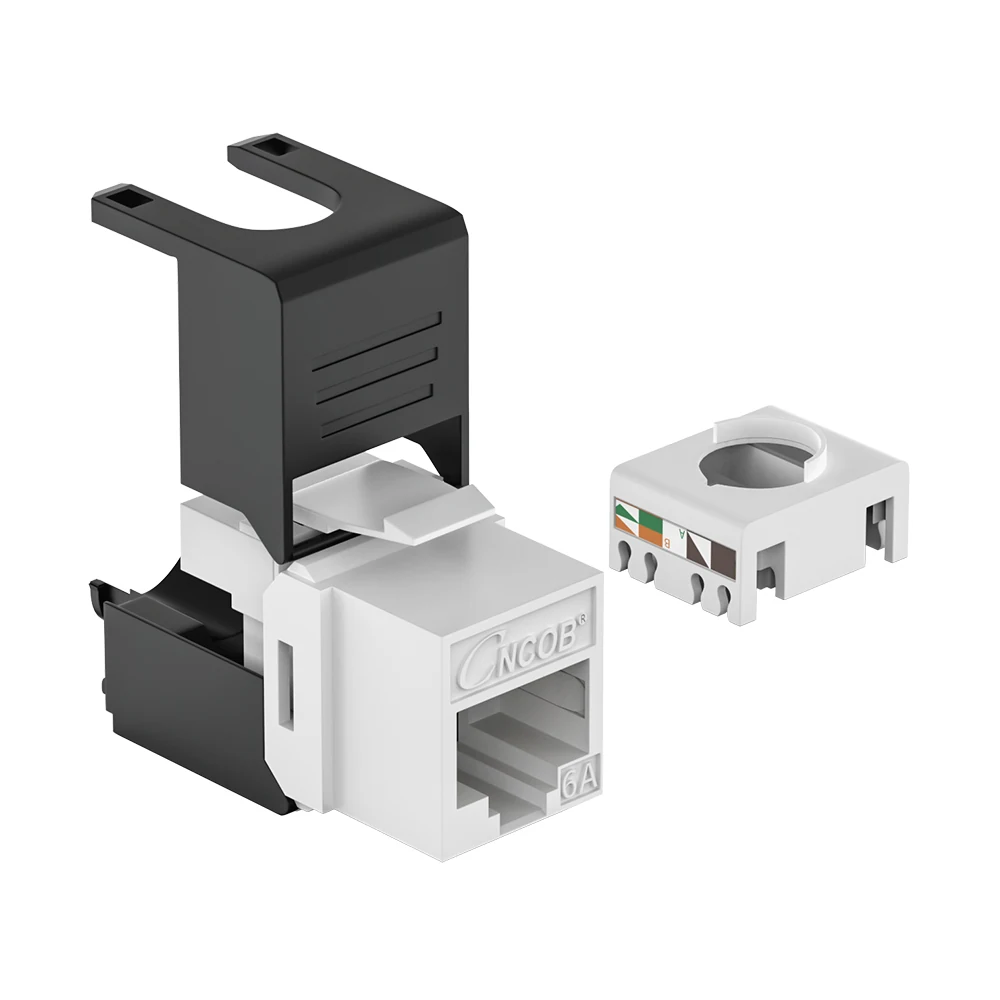

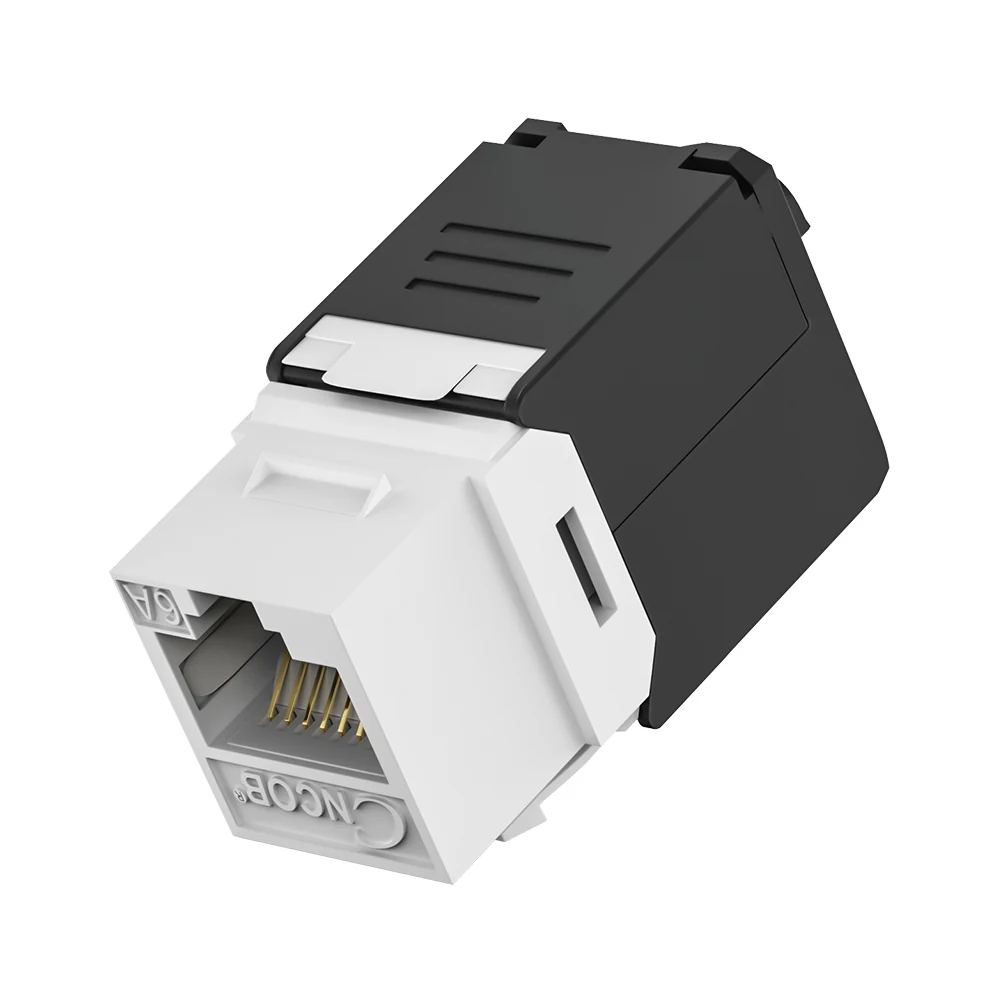

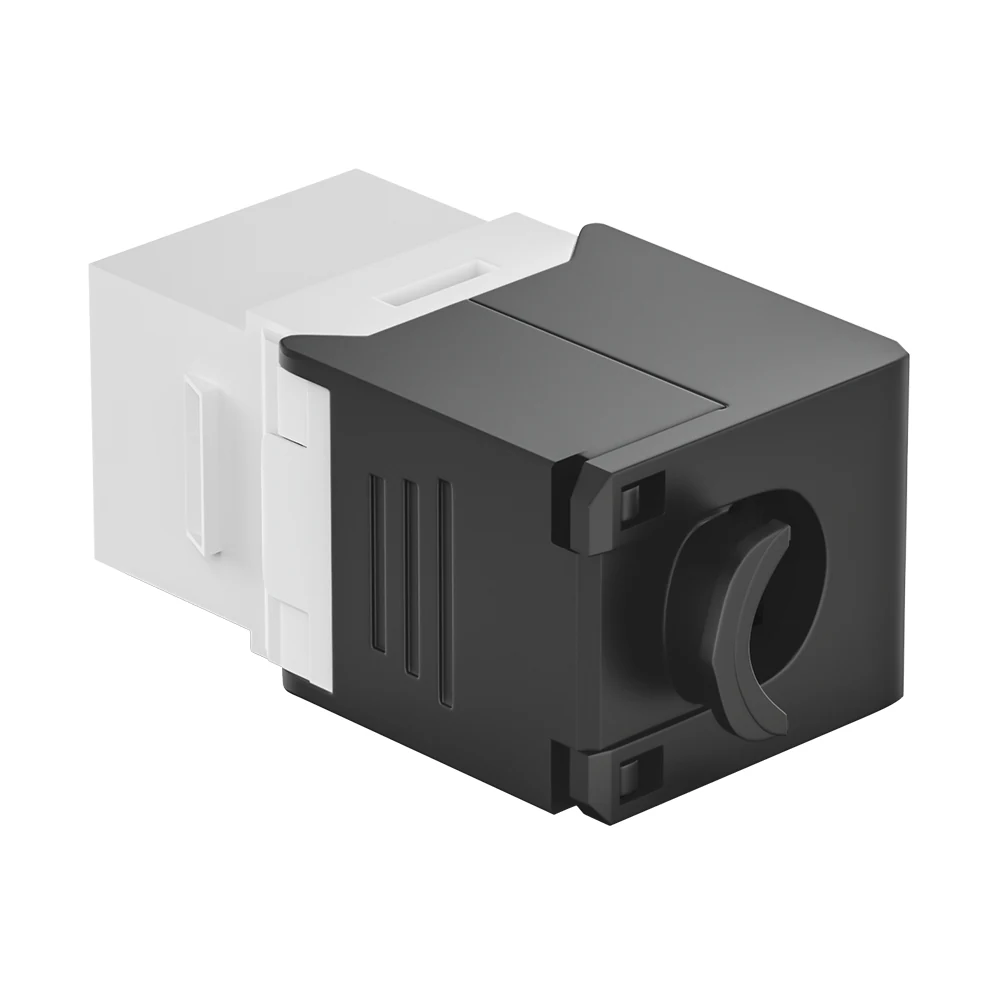

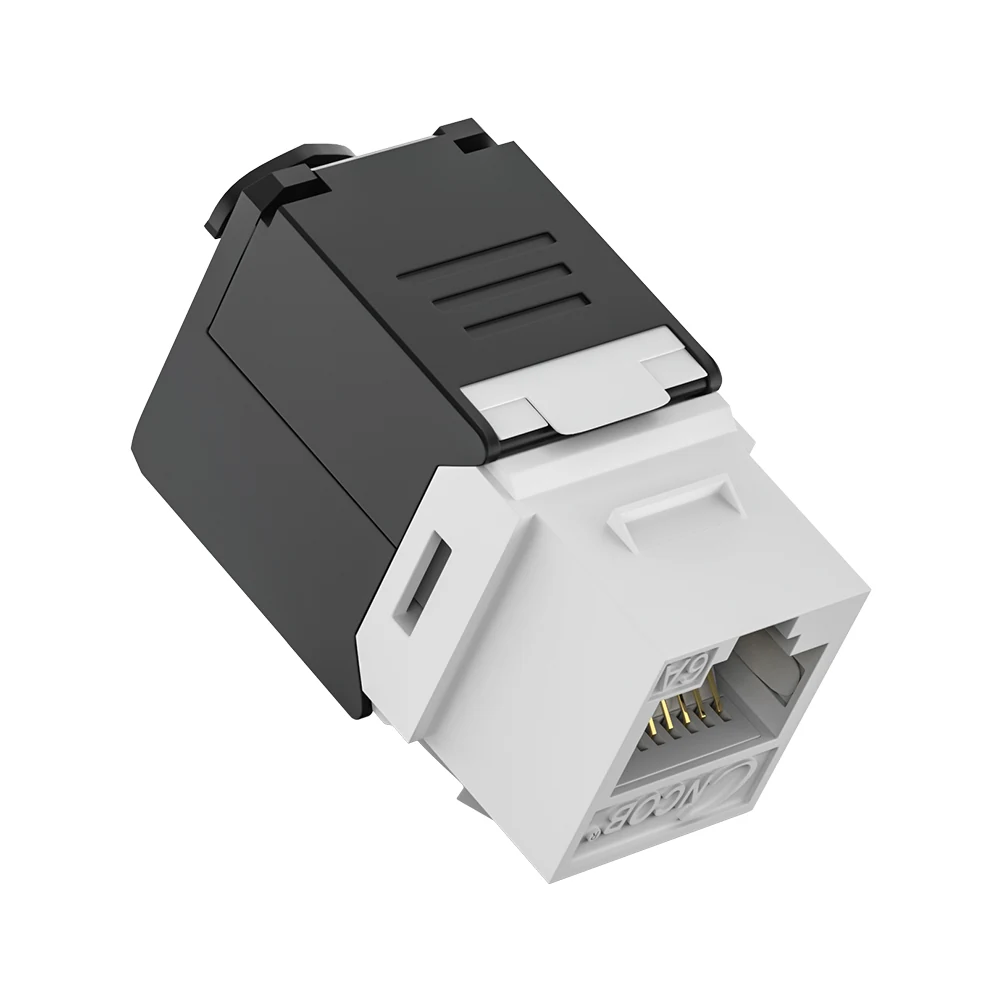

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
