RJ45 Modular Plug

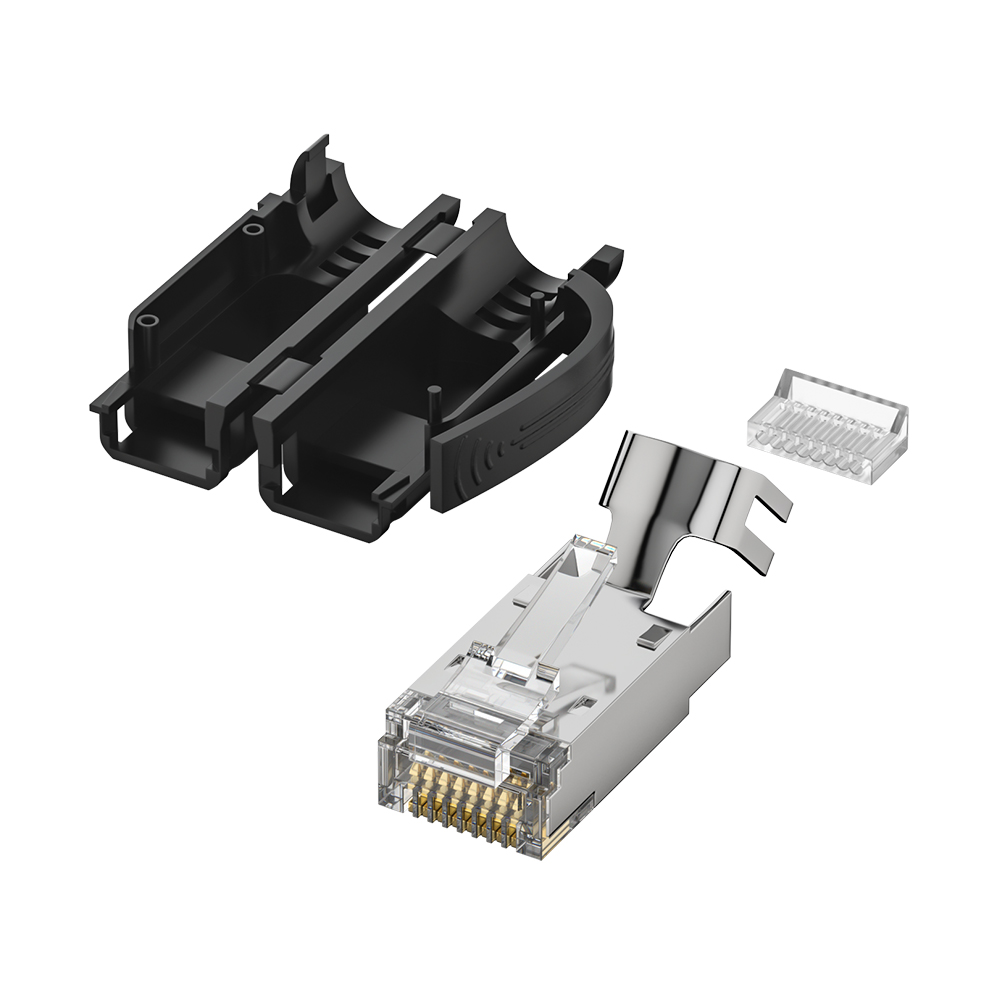

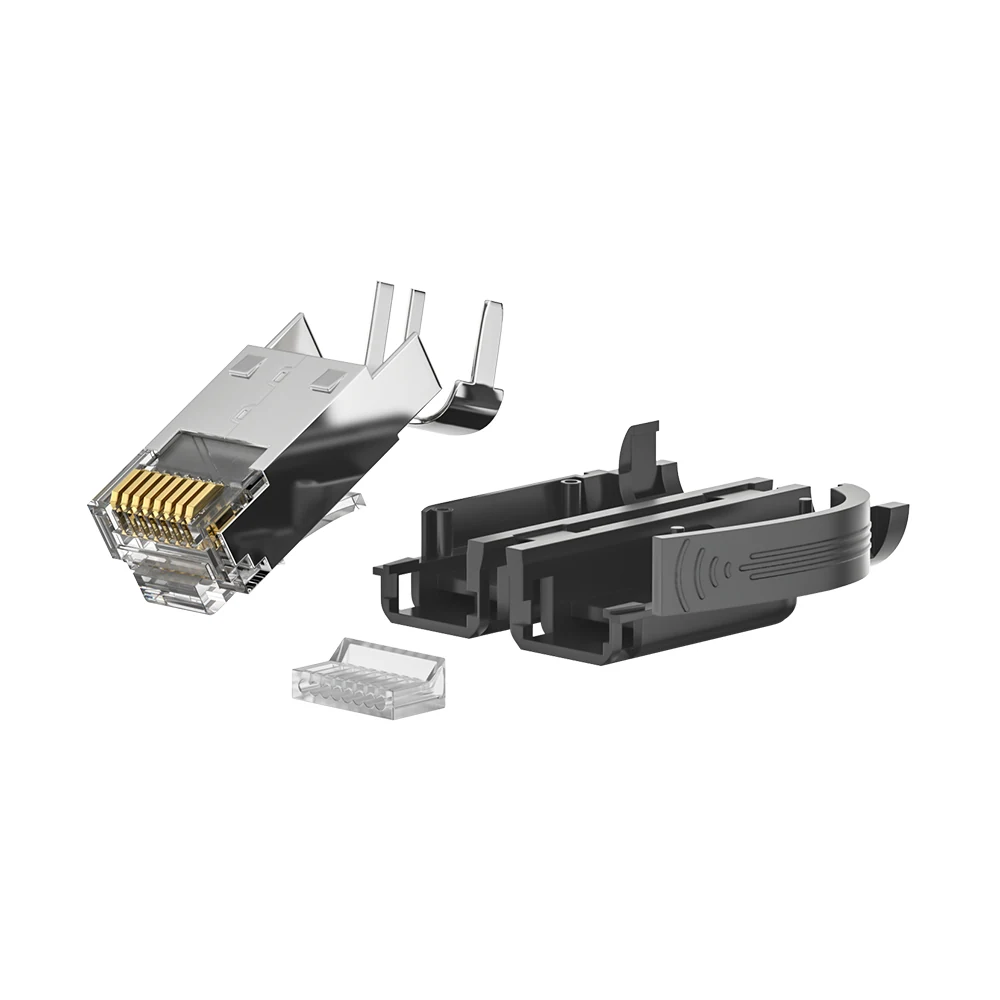

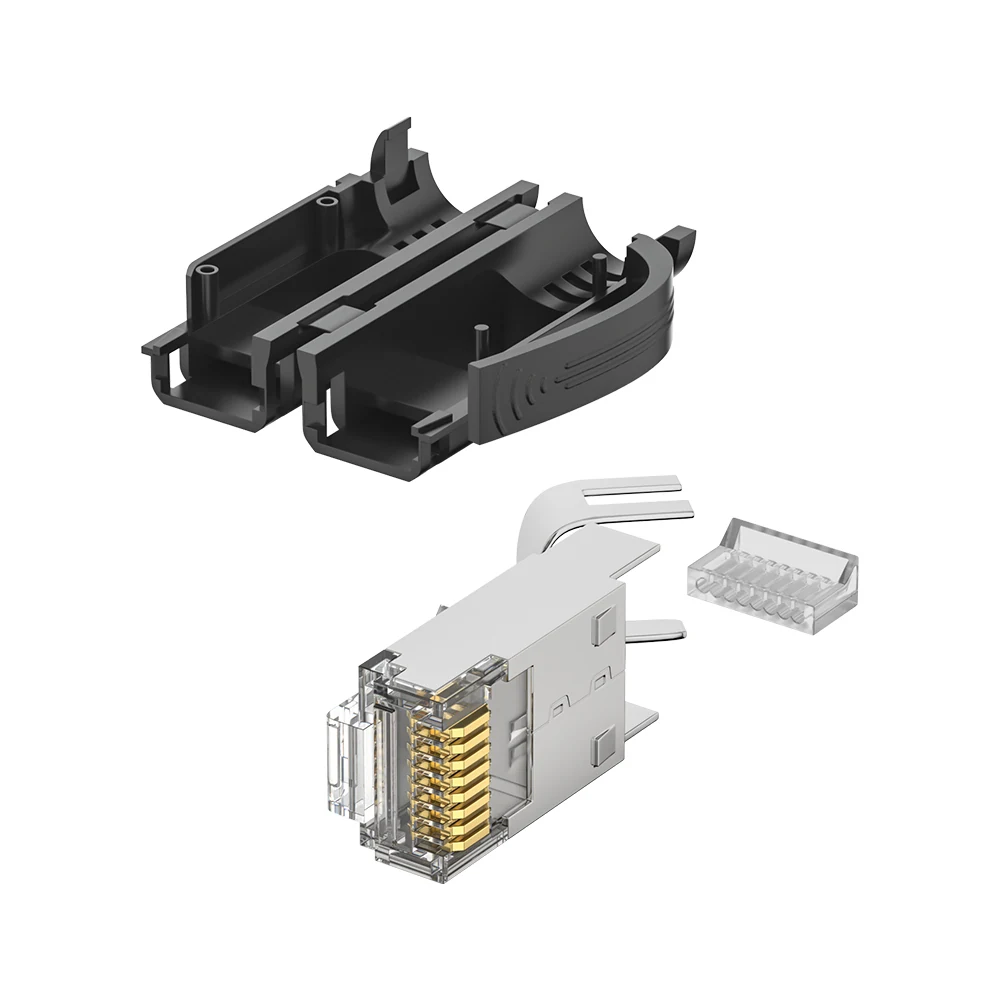

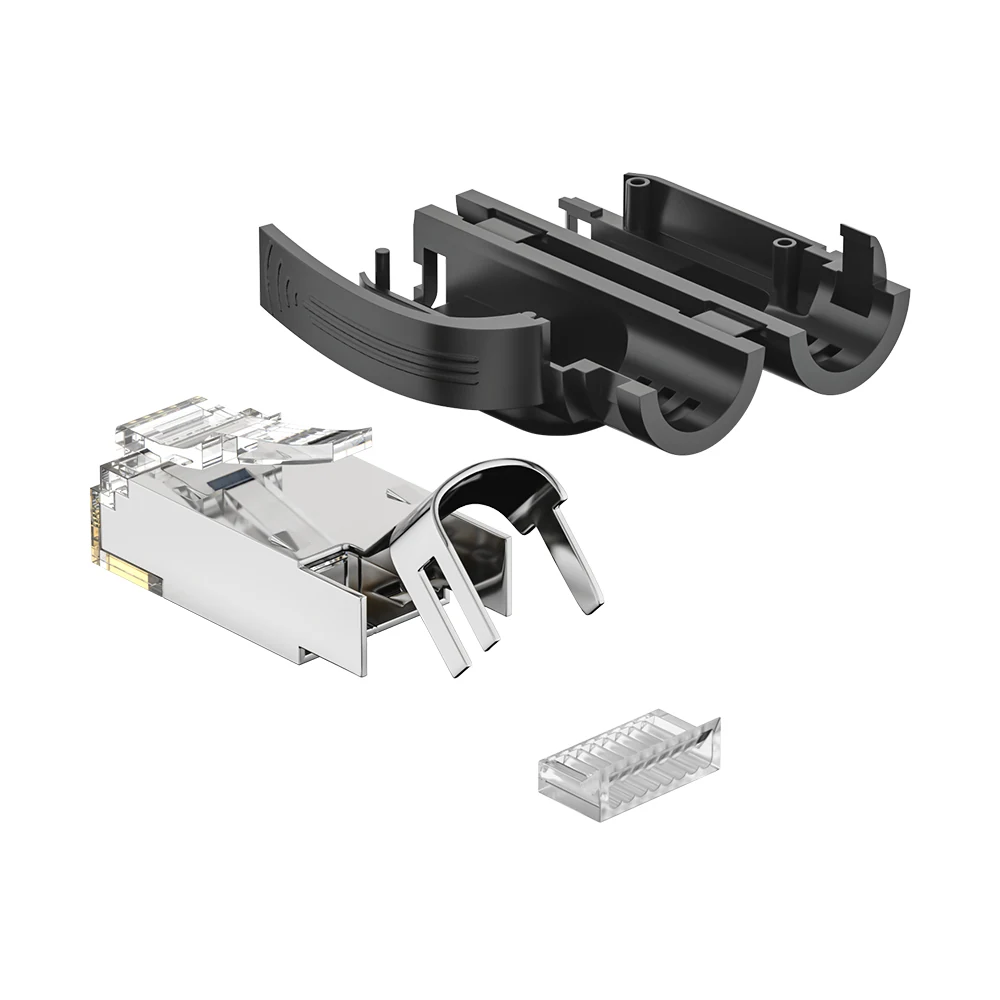

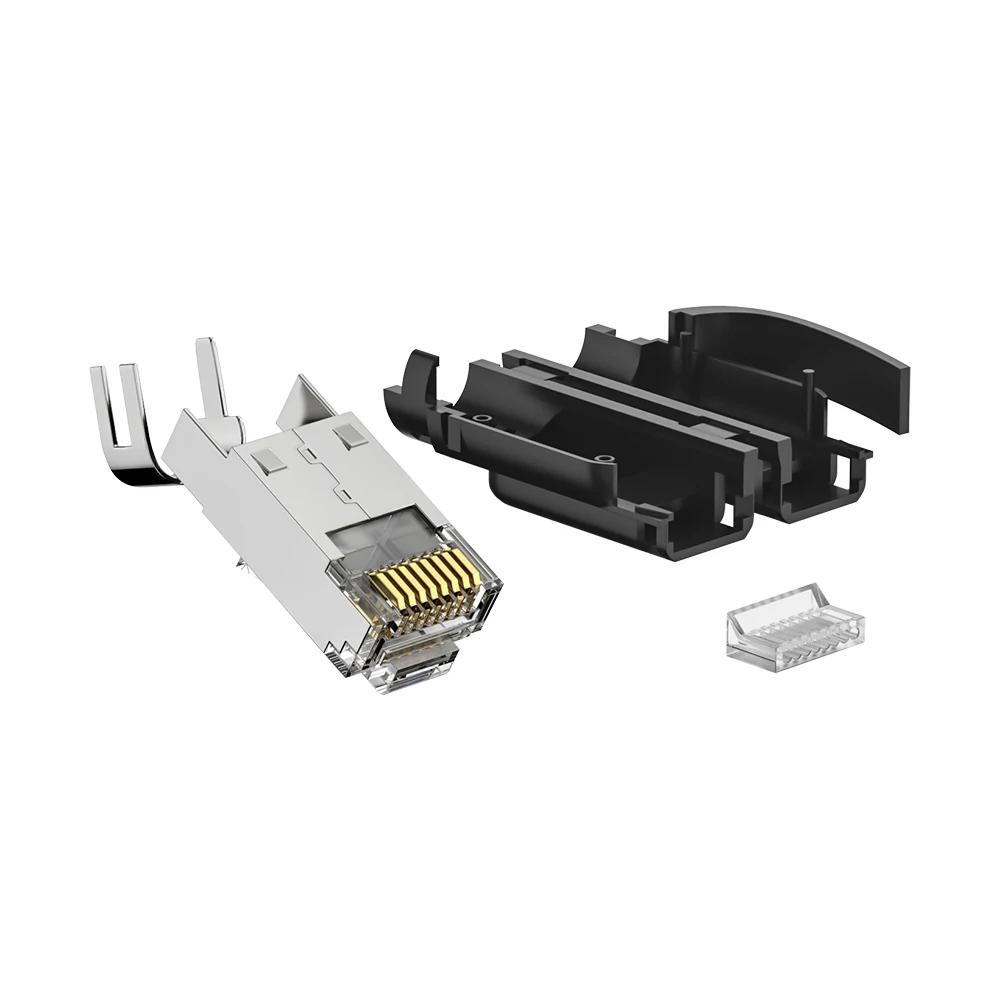

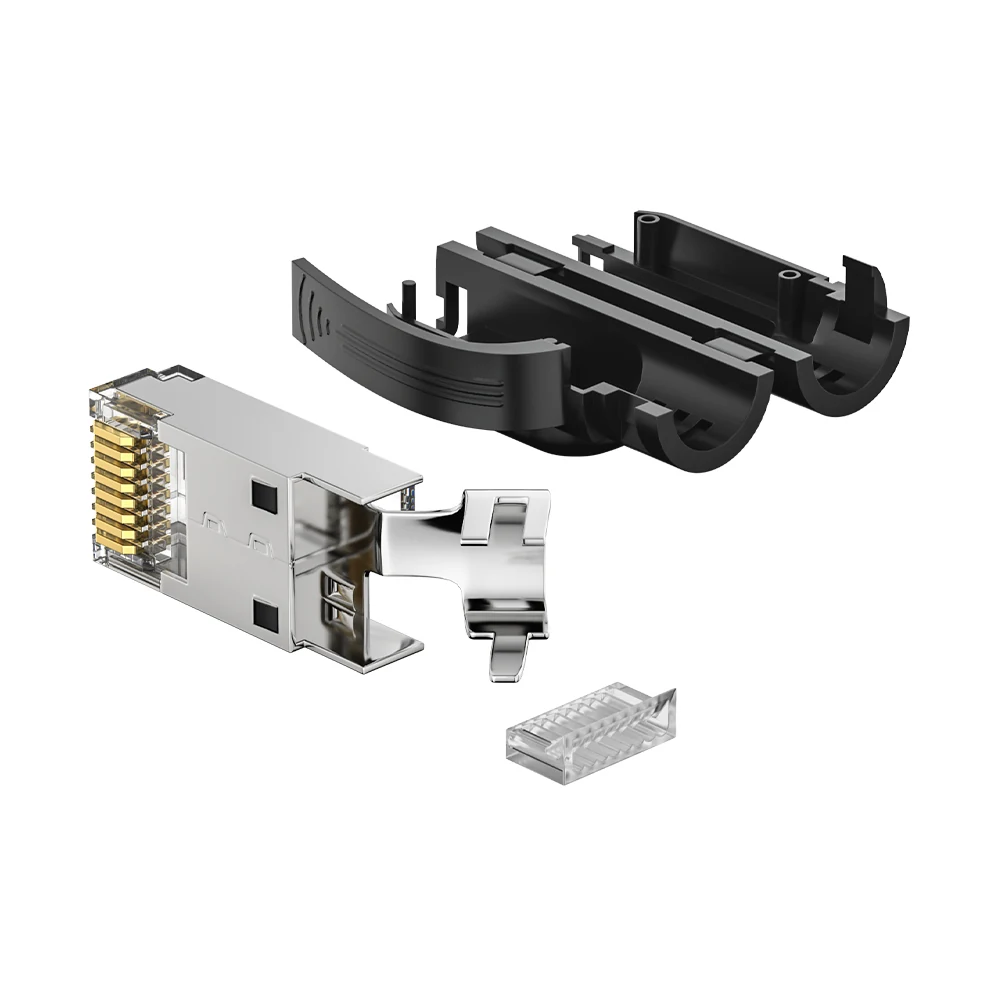

CAT6A RJ45 8P8C FTP Industrial Modular Plug 50U Gold Plated for 6.0–6.95mm Cable
CAT6A RJ45 8P8C FTP industrial modular plug with 3-piece reinforced design, 50U gold plated contacts, supporting 6.0–6.95mm OD cables and 22–24AWG solid or stranded wires. Designed for stable high-speed Ethernet performance in demanding environments.
SKU Variants
DT-6H6B-1.1mm
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT6A RJ45 8P8C FTP Industrial Modular Plug |
| Model | DT-6H6B-1.1mm |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Modular Plug |
| Connector Type | RJ45 8P8C |
| Category | CAT6A |
| Shielding Type | FTP (Foiled Twisted Pair) |
| Structure | Industrial 3-Piece Design |
| Cable Outer Diameter | 6.0–6.95mm |
| Supported Wire Gauge | 22–24AWG Solid or Stranded Cable |
| Contact Material | Copper Alloy with Nickel Plating |
| Contact Plating | 50U Gold Plated |
| Housing Material | Nickel Plated Copper Shield Shell |
| Boot Material | PA66 |
| Flame Rating | UL94-V2 |
| Electrical Rating | 125V AC 1.5A @ 25℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥500MΩ (100V DC / 1 min) |
| Dielectric Strength | 1000V AC / 1 min, no breakdown |
| Pull Test | Max 30N |
| Durability | ≥750 mating cycles |
| Operating Temperature | -40℃ ~ +85℃ |
| Certifications | UL / CE / RoHS / ISO9001 |
| Packaging | Box / Bag |
| HS Code | 8536901100 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | FU, 3U”, 15U”, 30U”, 50U” |
| Packaging | Box, Bag, OEM Custom Packaging |
| Logo Printing | Detwiler Tech / OEM / ODM |
Product Overview
This CAT6A RJ45 8P8C FTP industrial modular plug is engineered with a reinforced 3-piece structure, designed for stable termination in high-performance structured cabling systems. It supports cable outer diameters from 6.0 to 6.95mm and is compatible with 22–24AWG solid or stranded Ethernet cables.
Key Features
- CAT6A performance for high-speed Ethernet transmission
- FTP shielding design for enhanced EMI/RFI protection
- 50U gold plated contacts for superior conductivity and durability
- Industrial 3-piece structure for secure crimping stability
- Supports thick LAN cables (6.0–6.95mm OD)
- High durability with ≥750 mating cycles
- Wide operating temperature range: -40℃ to +85℃
- Compliant with UL, CE, RoHS, ISO9001 standards
Applications
- Data center cabling systems
- Enterprise network installations
- Industrial Ethernet environments
- Telecom infrastructure projects
- Structured cabling system deployments
OEM & ODM Service
Detwiler Tech provides full OEM/ODM customization including logo printing, packaging design, gold plating options, and bulk manufacturing solutions for global distributors and system integrators.
Buyer specification guide
Specify a Cat6A shielded RJ45 plug for the cable
This reinforced three-piece Cat6A plug is designed around a 6.0–6.95 mm cable OD and 22–24 AWG conductors. Confirm the conductor and shielding details before approving a terminated sample.
Information to confirm before quotation
- 6.0–6.95 mm cable OD and 22–24 AWG solid or stranded conductors
- Insulation diameter, conductor order, shield contact and boot clearance
- 50U contact specification, sample quantity, marking and packaging
Frequently asked questions
Is cable OD enough to approve this Cat6A RJ45 plug?
No. Cable OD is one check. Also confirm conductor gauge and construction, insulation diameter, shielding, wire order and the intended crimping tool.
Does a Cat6A plug guarantee the completed channel performance?
No single component guarantees the channel. Cable, mating hardware, termination quality, shielding and the agreed test method all affect the result.

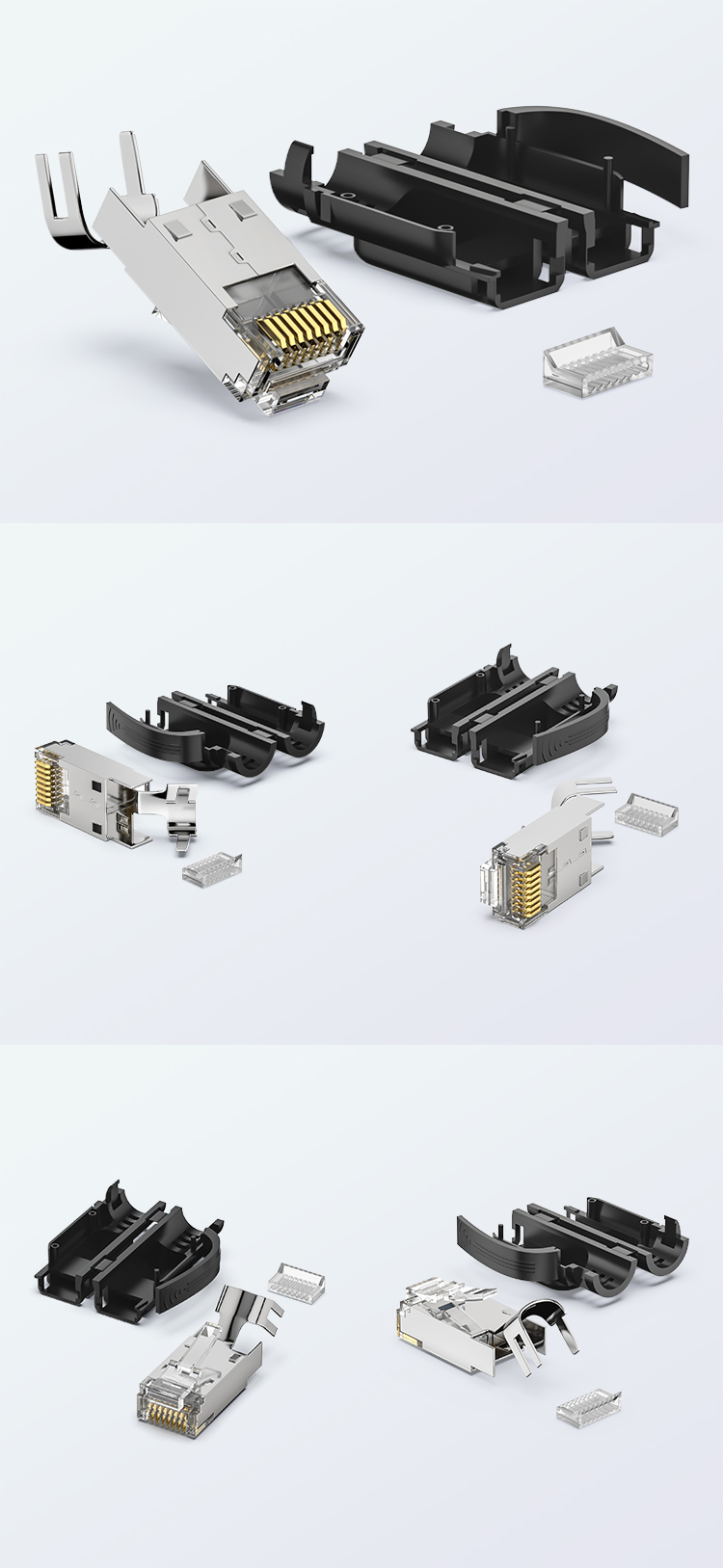

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
RFQ / SAMPLE REQUEST
Tell Us What the Application Requires
Share the target specification, quantity, cable construction and OEM/ODM requirements. Our team will review the critical interfaces before quotation.
- Product and cable compatibility review
- Sample, lead-time and packaging discussion
- Clear follow-up for export projects
