Keystone Jacks

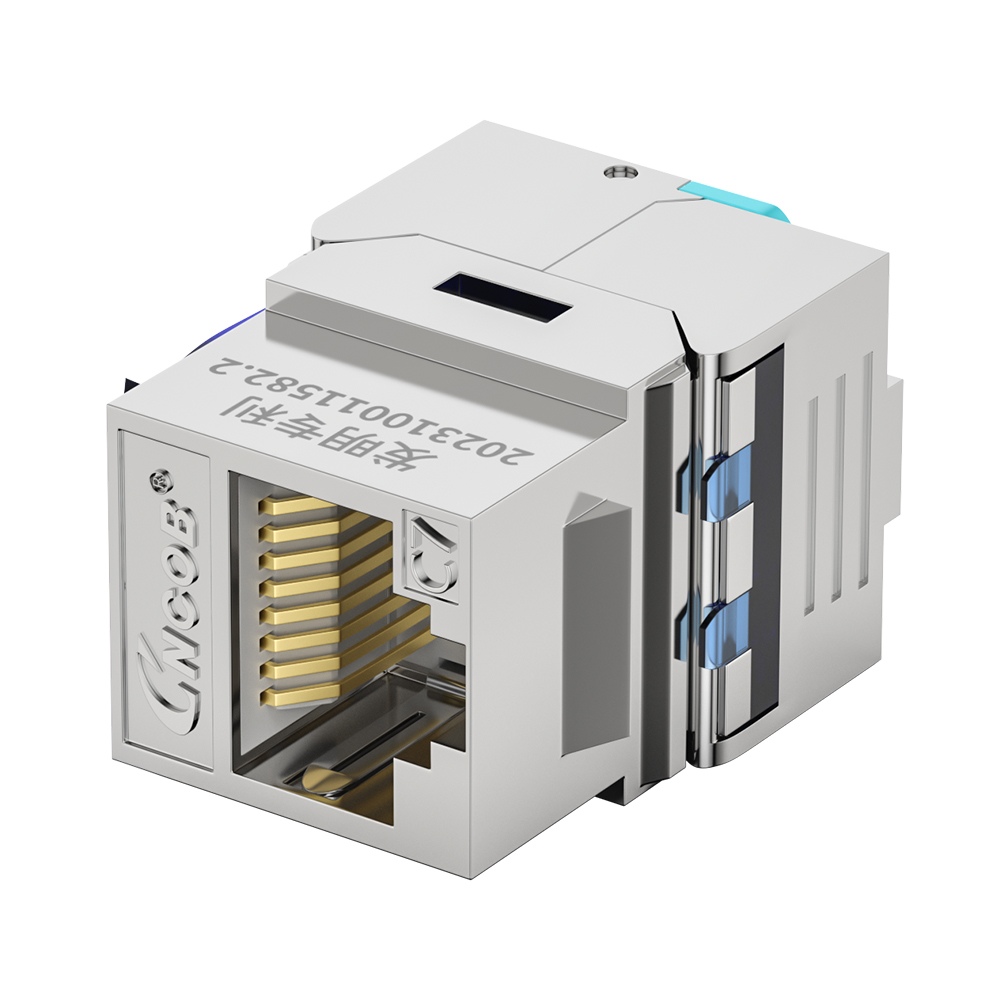

CAT7 FTP Short Body Toolless Keystone Jack Shielded RJ45 50U Gold Plated
CAT7 FTP short body toolless keystone jack featuring a compact fully shielded design for high-density installations. Equipped with a die-cast zinc alloy housing, reusable tool-free termination, and 50U gold-plated contacts, it supports 23–26AWG solid and stranded Ethernet cables with T568A/T568B wiring. Designed for Cat7 structured cabling, data centers, industrial Ethernet, and OEM/ODM applicatio
SKU Variants
DT-MD2007DT-NEW
Sign in or register to sync this inquiry list across devices.
Engineering reviewSpecification and application alignment
OEM / ODM optionsLabel, packaging and configuration support
Sample-based approvalConfirm critical details before production
Product Overview
Review the construction, options and application notes before requesting a sample or quotation.
| Item | Specification |
|---|---|
| Product Name | CAT7 FTP Short Body Toolless Keystone Jack |
| Model | DT-MD2007DT-NEW |
| Brand | Detwiler Tech / OEM / ODM |
| Product Type | Keystone Jack |
| Interface | RJ45 Female |
| Category | CAT7 |
| Shielding Type | FTP |
| Design | Short Body Toolless |
| Contact Material | Nickel-Plated Phosphor Bronze |
| Contact Plating | 50U Gold Plated |
| Housing Material | Nickel-Plated Die-Cast Zinc Alloy |
| Contact Carrier | PC UL94-V2 |
| IDC Housing | PC UL94-V2 |
| IDC Terminal | Tin-Plated Phosphor Bronze |
| Ground Contact | Stainless Steel |
| Ground Block | Nickel-Plated Die-Cast Zinc Alloy |
| PCB Material | FR4 UL94-V0 |
| Supported Cable | 23–26AWG Solid & Stranded Ethernet Cable |
| Wiring Standard | T568A / T568B |
| Installation | Toolless Reusable Termination |
| Insertion Force | ≤30N (IEC 60603-7-5) |
| Retention Force | 7.7kg (Plug to Jack) |
| Jack Durability | ≥750 Mating Cycles |
| IDC Durability | ≥20 Termination Cycles |
| Operating Temperature | -10°C to +60°C |
| Performance Standard | ANSI/TIA-568-C.2 Cat7 |
| Compliance | ISO/IEC 11801, IEC 60603-7-5 |
| Packaging | Individual Bag / OEM Package |
| HS Code | 8517799000 |
| OEM/ODM | Supported |
| Option | Available Choices |
|---|---|
| Gold Plating | 3U”, 6U”, 15U”, 30U”, 50U” |
| Wiring Standard | T568A, T568B |
| Packaging | Individual Bag, OEM Package |
| Brand | Detwiler Tech / OEM / ODM |
Product Description
Product Overview
The Detwiler Tech DT-MD2007DT-NEW CAT7 FTP Short Body Toolless Keystone Jack is a premium shielded RJ45 module engineered for next-generation high-speed structured cabling systems. Its compact short-body design allows easier installation in shallow wall boxes, patch panels, and high-density network cabinets while maintaining excellent Cat7 transmission performance.
Manufactured with a nickel-plated die-cast zinc alloy housing, 50U gold-plated phosphor bronze contacts, and a reusable toolless termination mechanism, this keystone jack provides outstanding EMI/RFI shielding, stable signal transmission, and long service life. Supporting 23–26AWG solid and stranded Ethernet cables with T568A/T568B wiring, it is suitable for enterprise networks, industrial Ethernet, AI data centers, cloud infrastructure, and high-bandwidth applications.
Key Features
- CAT7 FTP shielded RJ45 keystone jack
- Compact short-body design
- Toolless reusable installation
- 50U gold-plated contacts
- Die-cast zinc alloy shielded housing
- Supports 23–26AWG solid & stranded cables
- T568A/T568B wiring compatible
- Superior EMI/RFI protection
- ANSI/TIA-568-C.2 Cat7 performance
- ISO/IEC 11801 compliant
- OEM & ODM manufacturing supported
Applications
- CAT7 structured cabling
- Data centers
- AI computing infrastructure
- Enterprise LAN
- Industrial Ethernet
- Server rooms
- Smart buildings
- PoE networking
- High-speed backbone networks
OEM & ODM Service
Detwiler Tech provides professional OEM/ODM structured cabling manufacturing services, including private labeling, custom logo engraving, packaging customization, barcode labeling, product color customization, and complete networking solutions for distributors, contractors, and global networking brands.
Model-specific sourcing guide
Check short-body clearance for the DT-MD2007DT-NEW jack
The short zinc-alloy body is intended for constrained installation spaces while maintaining a shielded tool-free termination. Check depth, cable bend and grounding access in the actual enclosure.
Information to confirm before quotation
- Available mounting depth, cable bend radius and rear termination access
- 23–26 AWG cable, T568A/B wiring and shield-continuity method
- 50U contacts, enclosure sample, quantity, marking and OEM packaging
Frequently asked questions
Why does the short-body design need an installation sample?
The enclosure depth, cable bend and termination access vary by panel and faceplate. Fit the jack with the intended cable in the actual installation space.
Which cable range is listed for DT-MD2007DT-NEW?
The published page lists 23–26 AWG solid and stranded Ethernet cable with T568A or T568B wiring.

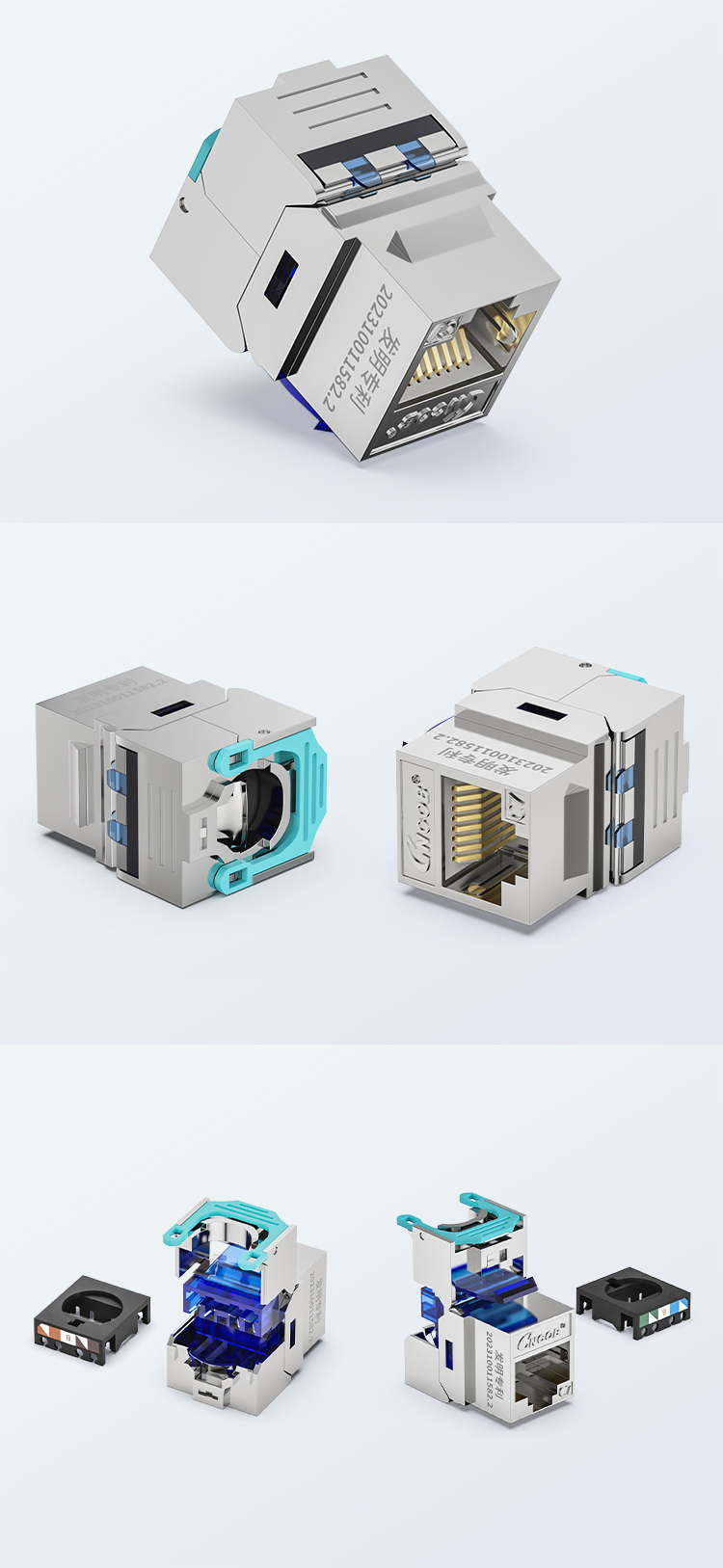

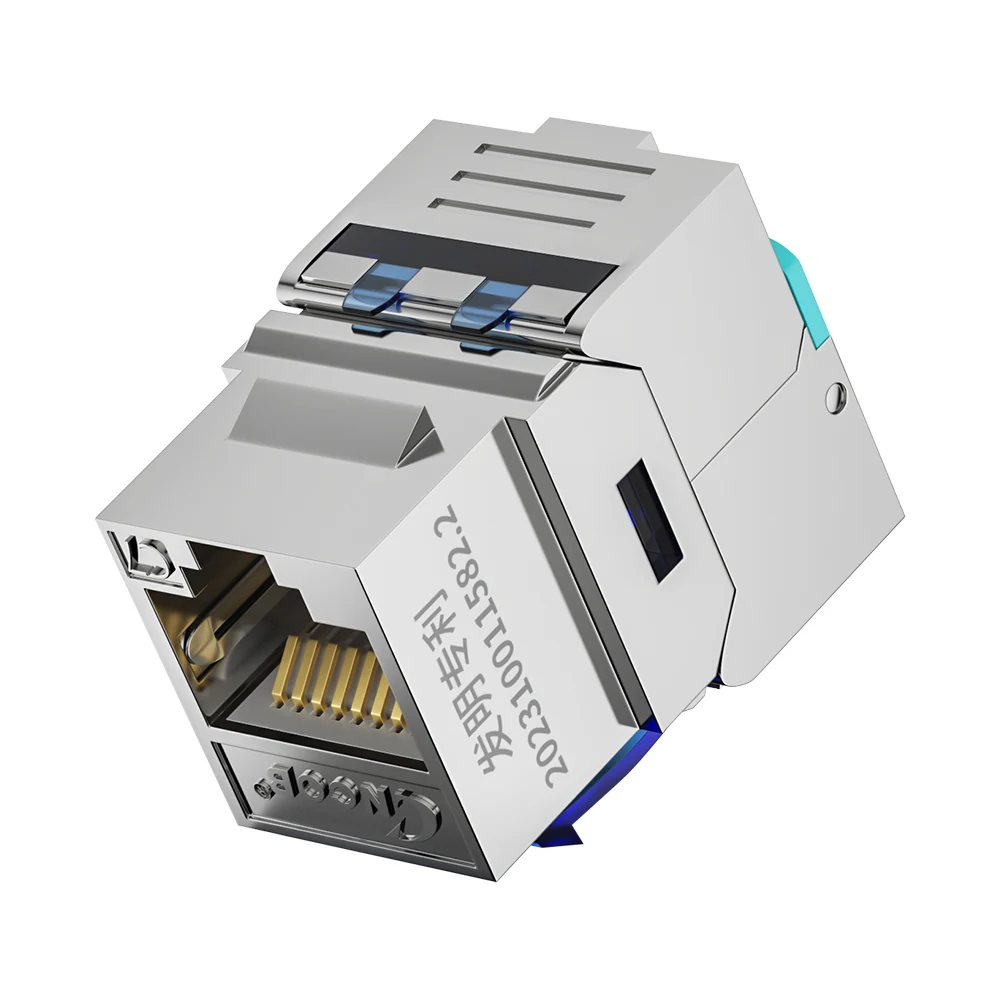

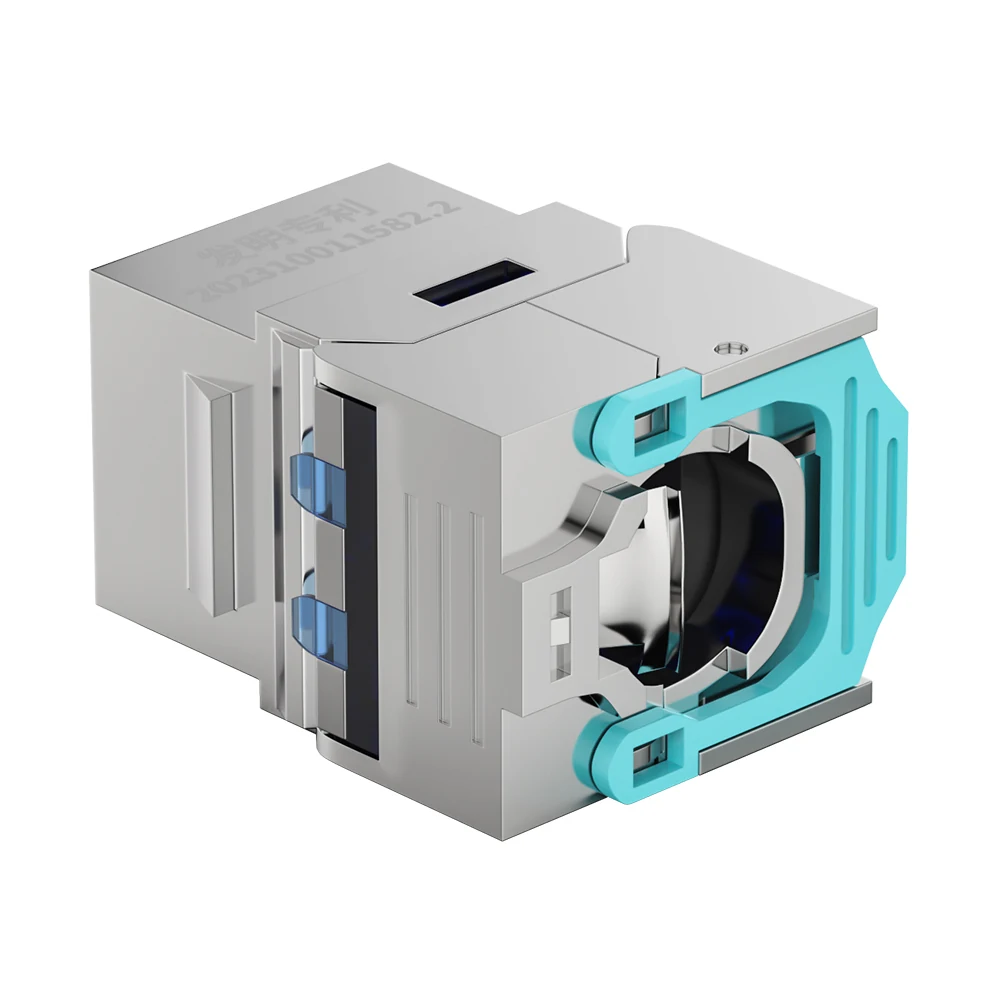

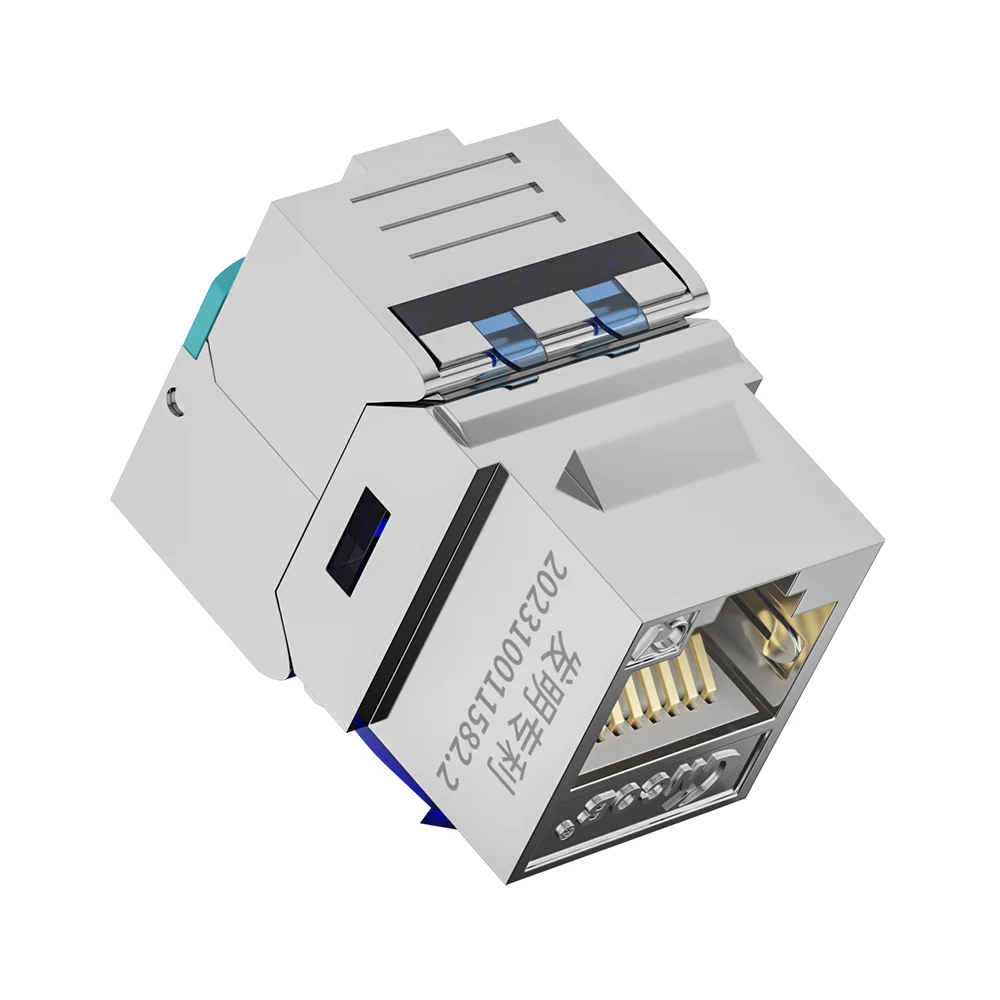

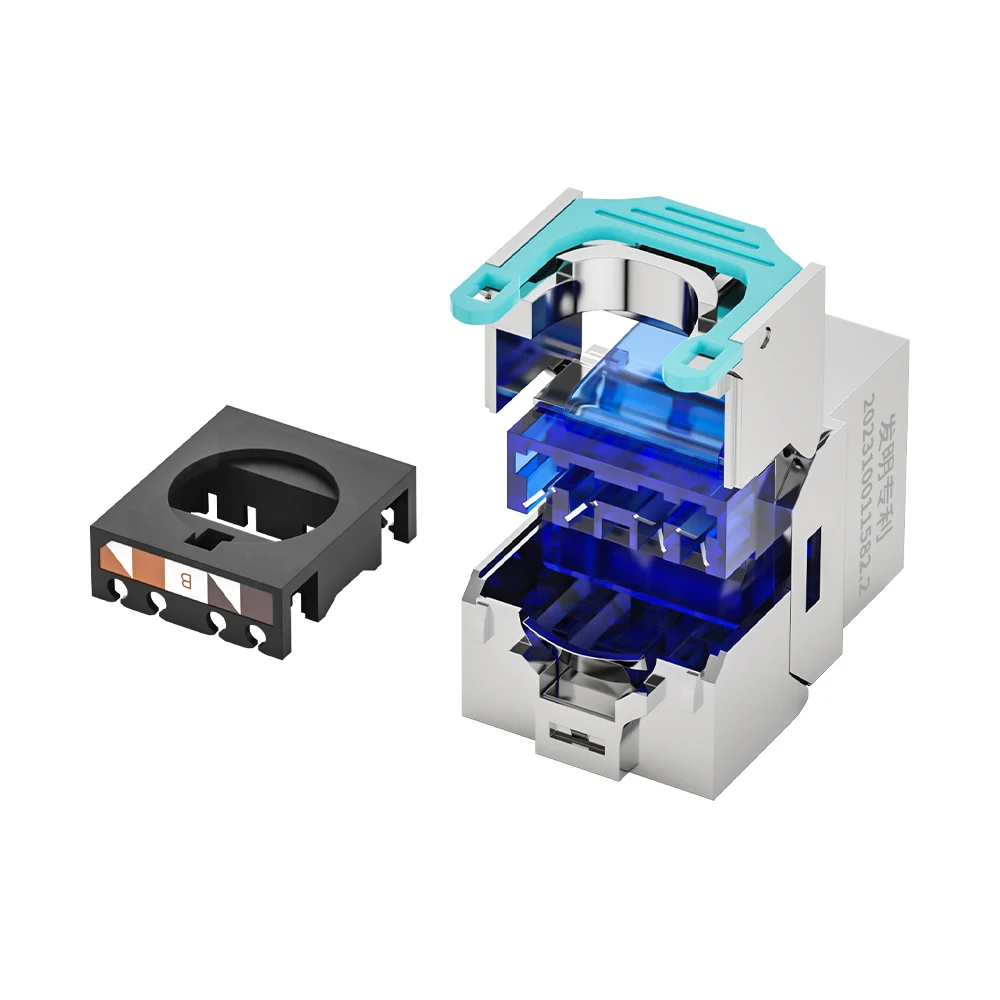

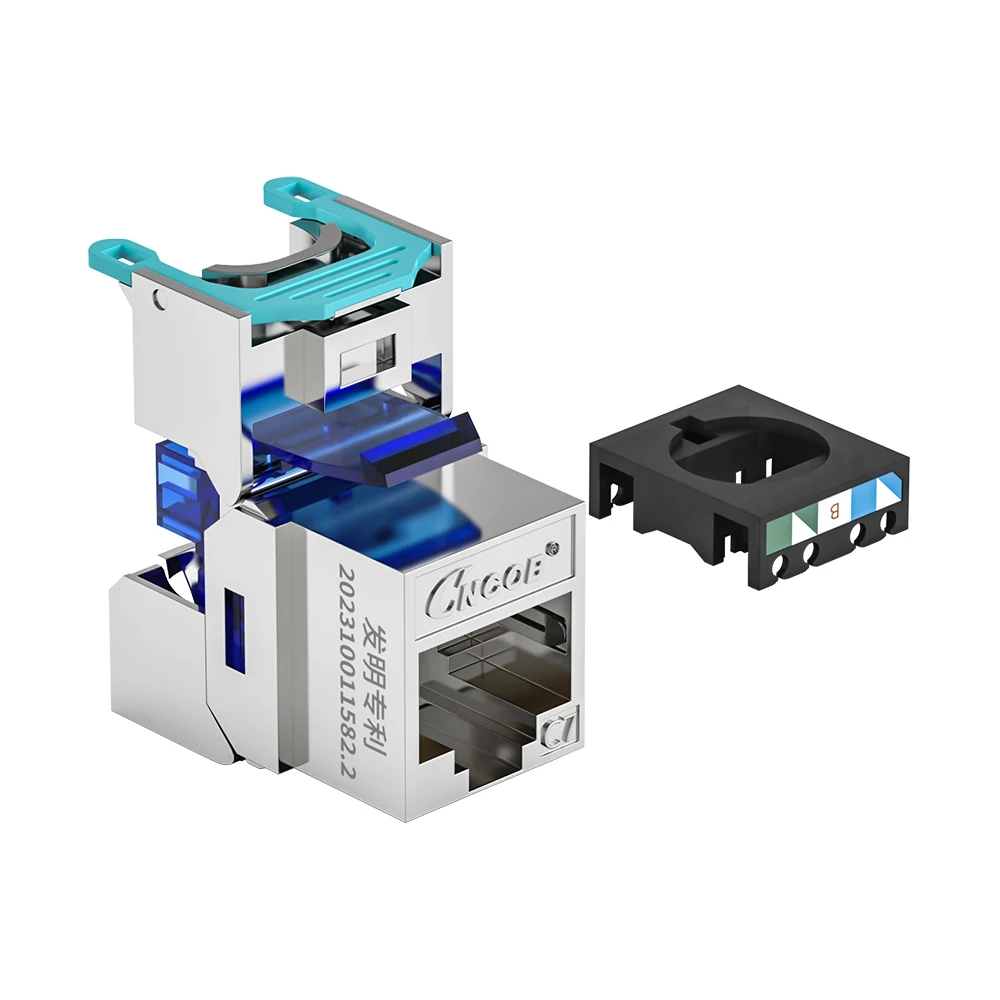

See the Product from Every Critical Angle
Inspect the housing, contacts, termination interface and assembly details before sample approval.
Control the Critical Steps Before Production
A practical sourcing workflow for structured cabling products, from requirement review to repeat orders.
Sample Approval
Confirm the agreed construction, appearance and packing before volume production.
Process Visibility
Define inspection points and acceptance requirements for the ordered configuration.
OEM / ODM Coordination
Coordinate private labels, packaging, barcodes and approved product variants.
RFQ / SAMPLE REQUEST
Tell Us What the Application Requires
Share the target specification, quantity, cable construction and OEM/ODM requirements. Our team will review the critical interfaces before quotation.
- Product and cable compatibility review
- Sample, lead-time and packaging discussion
- Clear follow-up for export projects
